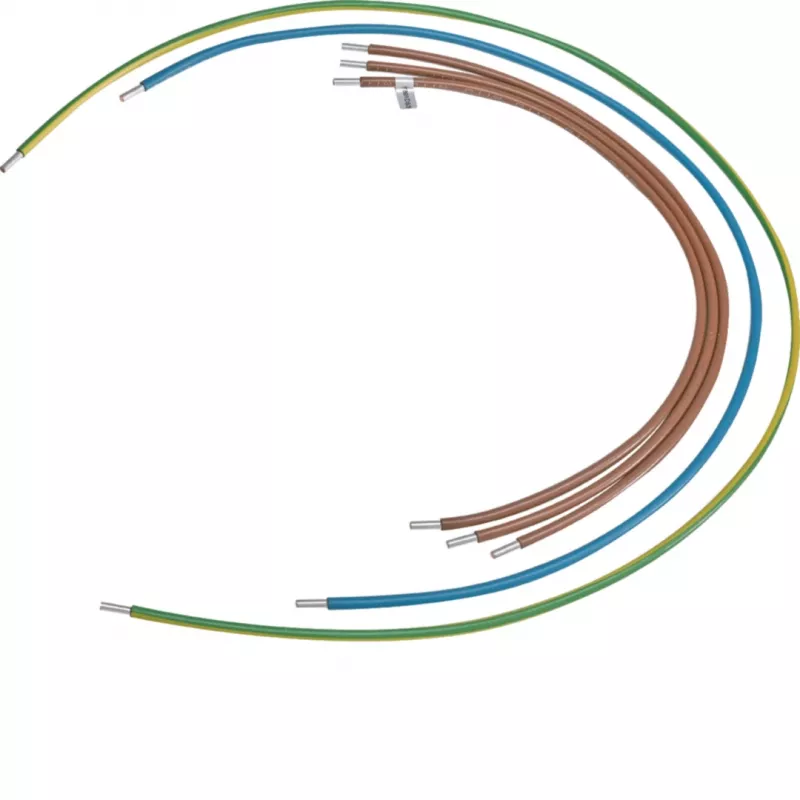

HAGER Y891DS3 Juego de cableado de salida universal Z 16 mm² 5 polos H07V2-KEBS 1200/1350 mm conexión superior

Output wiring harness for universal Z distribution systems, delivering a 16 mm² 5-pole connection with flexible H07V2-KEBS conductors. The harness provides a top connection point with lengths of 1200 mm and 1350 mm, ensuring reliable power distribution within electrical enclosures.

Advantages

Pre-assembled harness reduces installation time and wiring errors. Flexible class 5 copper conductors simplify routing in confined spaces. PVC insulation offers durability and resistance to abrasion.

Suitable for

• Internal wiring of electrical panels and switchgear
• Universal Z distribution systems
• Applications requiring a 5-pole 16 mm² connection

Key specifications

• Conductor cross-section: 16 mm²
• Number of poles: 5
• Cable type: H07V2-KEBS
• Rated voltage: 450/750 V
• Conductor material: Copper, class 5 flexible
• Insulation: PVC
• Maximum operating temperature: 90°C
• Lengths: 1200 mm and 1350 mm
• Connection point orientation: Top

Recommendations

Verify compatibility with your Hager universal Z distribution board before installation. Ensure proper bending radius to avoid conductor damage.
