Hager Y892F Mazo de cables de salida, Universal Z, 10 mm², 4 conductores, 500 mm

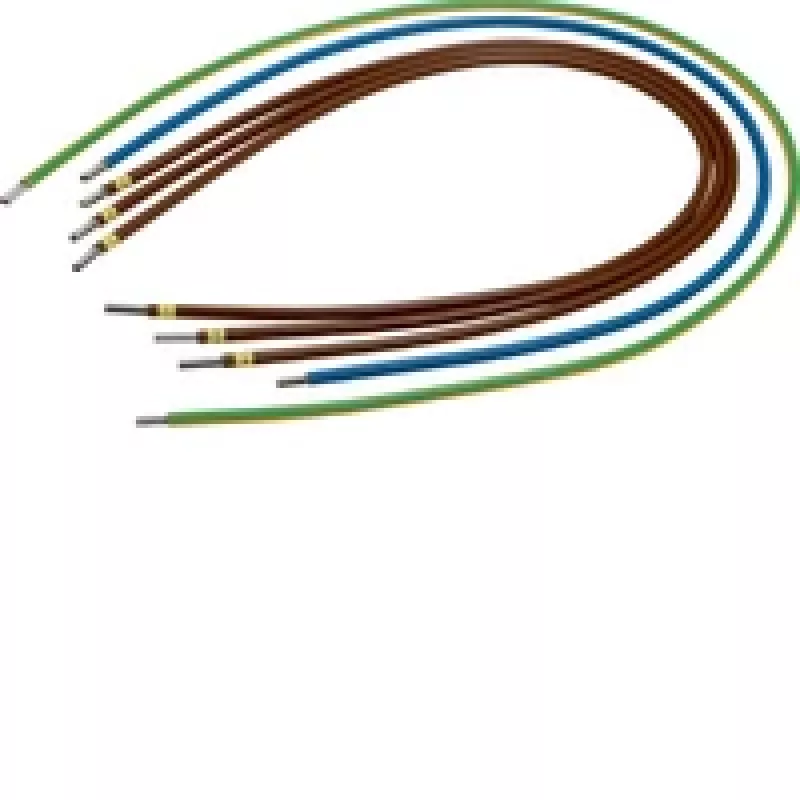

The Hager Y892F Outgoing Cable Harness is a pre-assembled, universal wiring solution designed for Hager univers Z distribution boards. It simplifies the connection of outgoing circuits, ensuring a reliable and organized electrical installation.

Advantages

Pre-assembled with ferrules for quick and error-free wiring. Color-coded conductors (brown, black, grey, blue) for easy identification. Reduces installation time and minimizes wiring errors.

Suitable for

• Hager univers Z distribution boards
• Three-phase outgoing circuits up to 63 A
• Commercial and industrial electrical installations

Key specifications

• Product Type: Outgoing Cable Harness
• Number of Conductors: 4 (L1, L2, L3, N)
• Conductor Cross-section: 10 mm²
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Conductor Length: 500 mm
• Conductor Material: Copper
• Insulation Material: PVC
• Connection Type: Pre-assembled with ferrules
• Color Coding: Brown, Black, Grey, Blue
• Standards Compliance: IEC 61439-1/2

Recommendations

Use with Hager univers Z distribution boards for optimal compatibility. Ensure proper torque settings when connecting to terminals.
