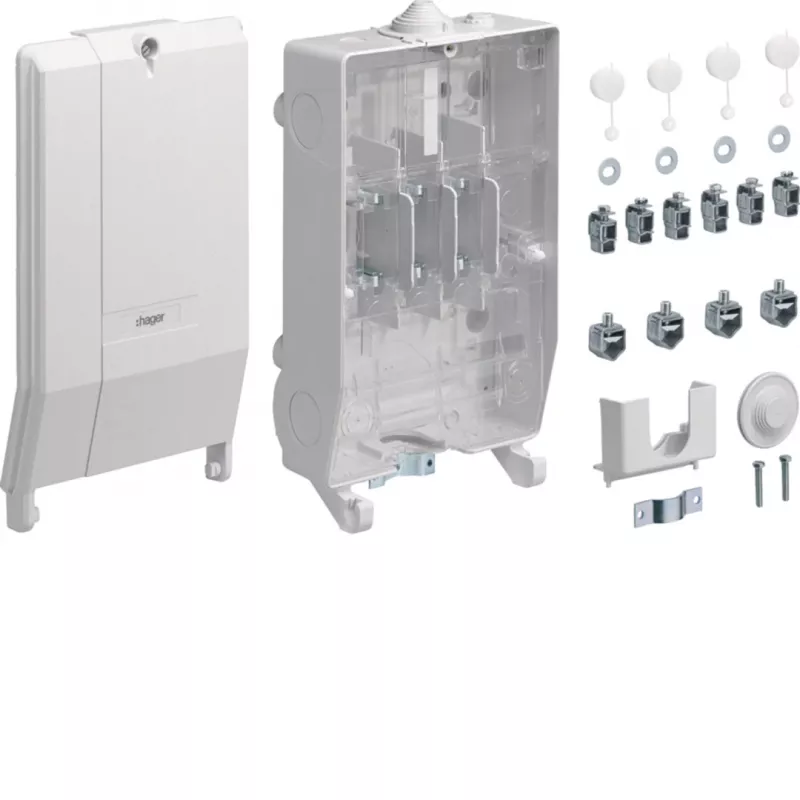

HAGER ZAN334C caja de acometida K3 250A IP54 RAL7035

The HAGER ZAN334C House Connection Box K3 is a high-quality surface-mounted distribution box designed for main power supply connections in residential and commercial buildings. Manufactured by Hager, a leading brand in electrical installation technology, this enclosure ensures reliable and safe power distribution.

Advantages

Robust sheet steel construction with powder-coated finish provides excellent durability and corrosion resistance. IP54 protection rating safeguards against dust and water splashes, making it suitable for indoor and outdoor installations. The hinged door with quarter-turn lock offers secure access and tamper protection.

Suitable for

• Main house connection points in residential buildings
• Commercial and industrial power distribution
• Surface-mounted installations requiring high current capacity

Key specifications

• Rated current: 250 A
• Rated voltage: 400 V AC
• Number of poles: 3-pole + N + PE (5-wire system)
• Protection class: IP54
• Enclosure material: Sheet steel, powder-coated
• Colour: RAL 7035 (light grey)
• Mounting type: Surface-mounted
• Connection type: Screw terminals
• Main terminal cross-section: 10 - 120 mm²
• N/PE terminal cross-section: 10 - 120 mm²
• Cable entry: Flange openings (top and bottom)
• Short-circuit current rating (Icw): 25 kA (1s)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Door type: Hinged door with lock
• Lock type: Quarter-turn lock

Recommendations

This house connection box is ideal for professional electricians and installers requiring a reliable and compliant main distribution solution. Ensure proper cable sizing and installation according to local regulations.
