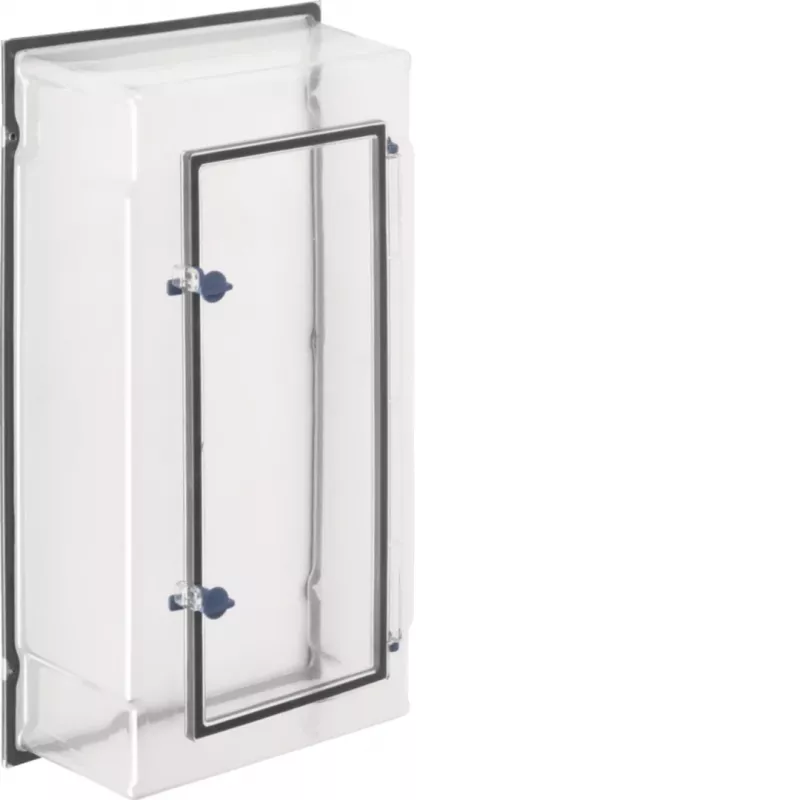

HAGER ZAY450AT tapa de cuadro de contadores IP54, 450 mm con puerta

The HAGER ZAY450AT stands out as a purpose-built meter field cover, offering a secure, hinged door solution for Hager meter fields. Unlike generic panels, this cover integrates seamlessly into distribution boards, providing both protection and convenient access.

Highlights

• IP54-rated protection against dust and water splashes
• Integrated opaque, hinged door with lead-sealable locking
• Halogen-free thermoplastic construction in pure white (RAL 9010)
• UV-resistant and impact-resistant (IK07) for long-term durability
• Designed for Hager meter fields, ensuring perfect fit and compliance

In daily use

This cover simplifies meter reading and maintenance while keeping unauthorized access at bay. Its lead-sealable door provides tamper evidence, and the robust material withstands environmental stress, making it suitable for both indoor and sheltered outdoor installations.

Full specifications

• Product type: Meter Field Cover
• Width: 450 mm
• Height: 450 mm
• Depth: 100 mm
• Material: Thermoplastic
• Colour: Pure White (RAL 9010)
• Protection class: IP54
• Impact resistance: IK07
• Door feature: With door
• Door type: Opaque, hinged
• Locking mechanism: Lead-sealable
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature: -25 to +40 °C
• Standards: DIN VDE 0603-1, DIN 43870-1
• Application: For Hager Meter Fields
• Mounting type: Integrated into distribution boards

Final note

A reliable, compliant cover that keeps meter installations safe and accessible, built to Hager's exacting standards.
