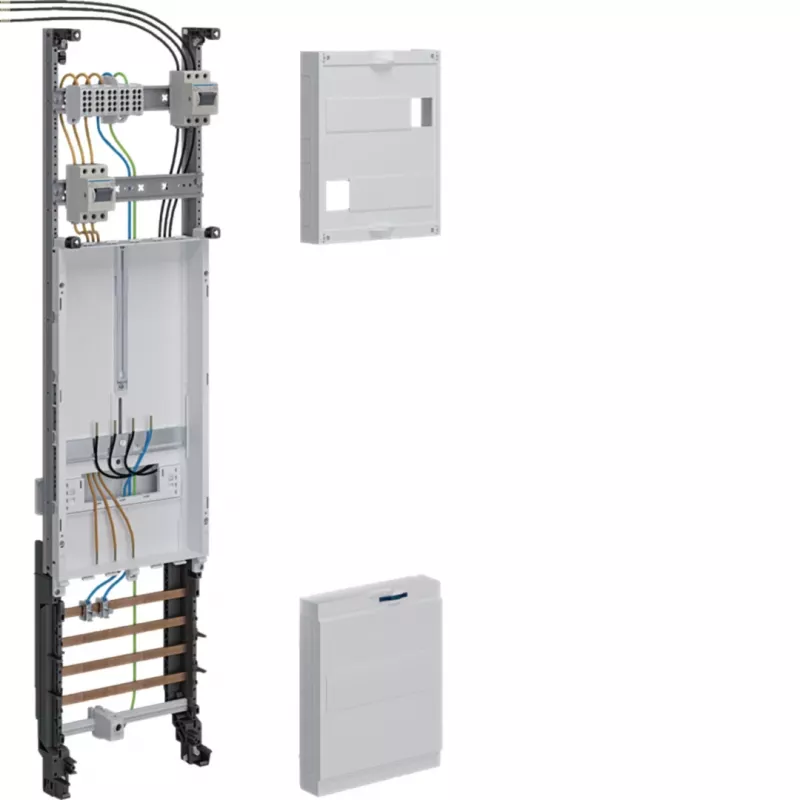

Hager ZH3PZ10PNT Campo de distribución completo, 1050x250mm, 3 polos, 1 punto de medida, 10mm², con función de separación

Electricians and panel builders installing a three-phase distribution board in commercial or industrial settings need a reliable, pre-assembled field that saves time and ensures compliance. The Hager ZH3PZ10PNT complete field provides a 1050 x 250 mm enclosure with a 3-pole configuration, one metering point, and 10 mm² wiring, including a disconnect function for safe isolation. This unit is ready to integrate into your low-voltage switchgear assembly, reducing on-site wiring effort and enhancing operational safety.

Key specifications

• Brand: Hager
• Model: ZH3PZ10PNT
• MPN: ZH3PZ10PNT
• EAN: 3250610098950
• Dimensions: 1050 mm height, 250 mm width
• Number of poles: 3
• Number of metering points: 1
• Conductor cross-section: 10 mm²
• Disconnect function: Yes
• Product type: Complete distribution field

Why choose it

This Hager complete field is engineered for efficiency and safety. The integrated disconnect function allows for complete isolation of the outgoing circuits, making maintenance and testing straightforward. The 10 mm² conductors handle higher current loads, suitable for sub-distribution and motor circuits. The pre-wired assembly ensures consistent quality and reduces installation errors, while the compact 250 mm width fits standard distribution boards.

Ideal use cases

• Three-phase sub-distribution in commercial buildings
• Industrial control panels requiring a metered supply point
• Retrofit projects where a pre-wired field speeds up replacement
• Applications needing a visible isolation point for safety compliance

Good to know

The field is part of Hager's modular distribution system, allowing easy integration with other Hager components. It complies with relevant IEC standards for low-voltage switchgear. The disconnect function is manually operated and clearly indicated, providing peace of mind during servicing. Installation should be performed by a qualified electrician according to local regulations.
