Hager ZK3EL24T campo completo 1050mm 4 emplazamientos de contador 2 campos NRW SH HH MV

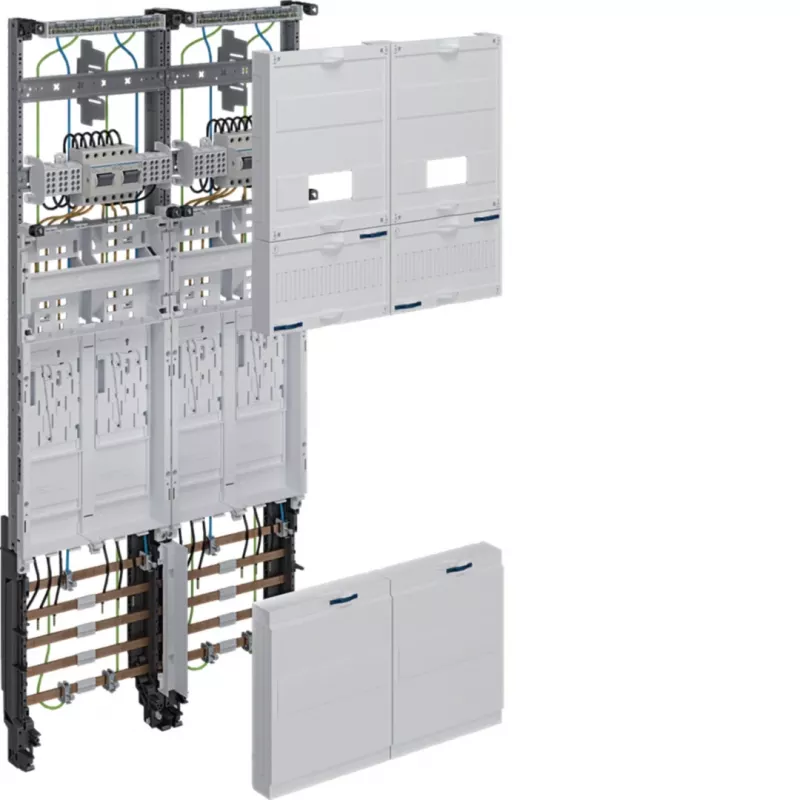

The Hager ZK3EL24T is a pre-configured complete meter panel (Komplettfeld) designed for electronic household meters (eHZ). It features 4 meter positions in a 2-field layout, with a height of 1050 mm, width of 500 mm, and depth of 160 mm. This panel is specifically suited for the German federal states of North Rhine-Westphalia (NRW), Schleswig-Holstein (SH), Hamburg (HH), and Mecklenburg-Vorpommern (MV), complying with VDE-AR-N 4100 standards.

Advantages

Ready-to-install complete field with integrated busbar system (5-pole, 250 A) and main circuit breaker (3x SLS-Schalter E35A). The powder-coated sheet steel construction ensures durability and protection class IP2XC when installed. With 7 distribution rows, it offers ample space for wiring and additional components.

Suitable for

• Residential and commercial metering installations in NRW, SH, HH, and MV
• Integration into cabinet systems for energy distribution
• Replacement or new installation of eHZ meter panels

Key specifications

• Product Type: Complete Meter Panel
• Meter Positions: 4 (for eHZ)
• Panel Fields: 2-field
• Height: 1050 mm
• Width: 500 mm
• Depth: 160 mm
• Busbar System: 5-pole, 250 A
• Main Circuit Breaker: 3x SLS-Schalter E35A
• Main Connection Terminal: 1x 5-pole, up to 25 mm²
• Distribution Rows: 7
• Rated Voltage: 230/400 V AC
• Rated Frequency: 50 Hz
• Material: Sheet steel, powder-coated
• Mounting Type: For cabinet installation
• Standard Compliance: VDE-AR-N 4100
• Protection Class (installed): IP2XC

Recommendations

Ensure compatibility with local utility requirements. Professional installation by a qualified electrician is recommended. Verify that the panel is suitable for the specific meter type and regional regulations.
