HAGER ZM15US juego de conexión universal 5 polos para barra colectora 12x5mm

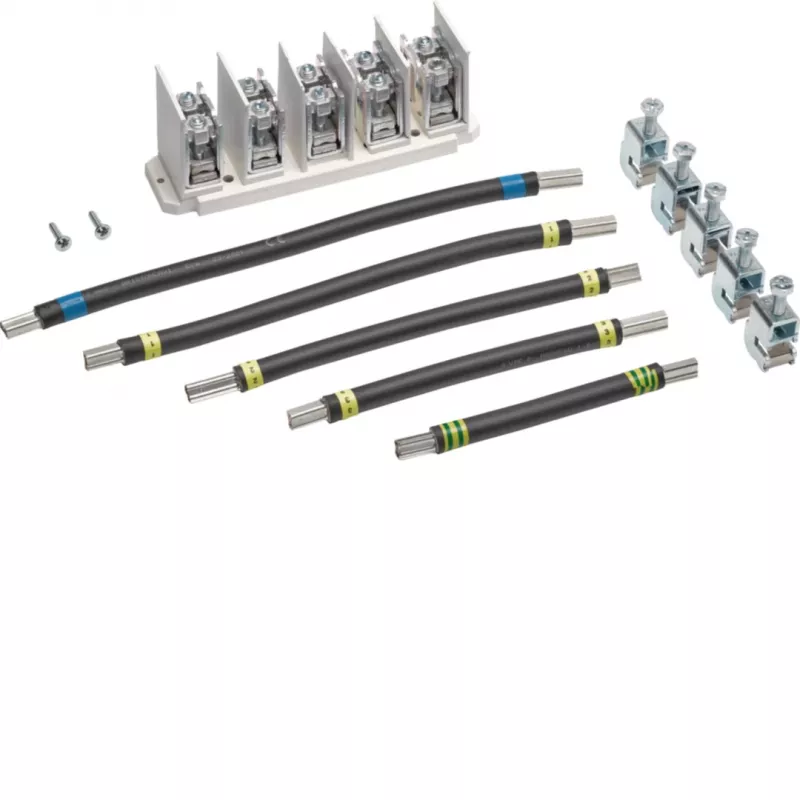

The HAGER ZM15US universal connection set is a high-quality 5-pole busbar connection kit designed for use with Hager univers Z distribution boards. It enables secure and reliable main incoming or outgoing connections for busbar systems with dimensions of 12 x 5 mm (SaS). This accessory is essential for professional electrical installations requiring robust and compliant connectivity.

Advantages

This connection set offers easy and direct mounting onto the busbar, ensuring a stable and durable connection. The screw terminals accommodate a wide range of cable cross-sections, from 1.5 mm² to 50 mm² for rigid cables and up to 35 mm² for flexible cables. Rated for operational voltages up to 690 V AC and insulation voltages up to 1000 V AC, it provides excellent electrical performance and safety. The grey insulated housing and copper terminals guarantee long-lasting reliability.

Suitable for

• Main incoming/outgoing connections in Hager univers Z distribution boards
• Busbar systems with 12 x 5 mm dimensions
• 5-pole configurations requiring up to 250 A current rating (system dependent)
• Professional electrical installations in commercial and industrial settings

Key specifications

• Product Type: Busbar Connection Kit
• System Compatibility: Hager univers Z
• Number of Poles: 5-pole
• Busbar Dimensions: 12 x 5 mm (SaS)
• Cable Connection: Screw terminal
• Min. Rigid Cable Cross-Section: 1.5 mm²
• Max. Rigid Cable Cross-Section: 50 mm²
• Min. Flexible Cable Cross-Section: 1.5 mm²
• Max. Flexible Cable Cross-Section: 35 mm²
• Rated Operational Voltage (Ue): 690 V AC
• Rated Insulation Voltage (Ui): 1000 V AC
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Current: Up to 250 A (system dependent)
• Mounting Type: Direct on busbar
• Degree of Protection: IP20 (when installed in enclosure)
• Material: Insulated plastic housing, copper terminals
• Colour: Grey
• Standards: IEC 61439-1, IEC 61439-2

Recommendations

For optimal performance, ensure compatibility with your specific Hager univers Z busbar system. Always follow local electrical codes and installation guidelines. This connection set is a reliable choice for professional electricians seeking a secure and compliant busbar connection solution.
