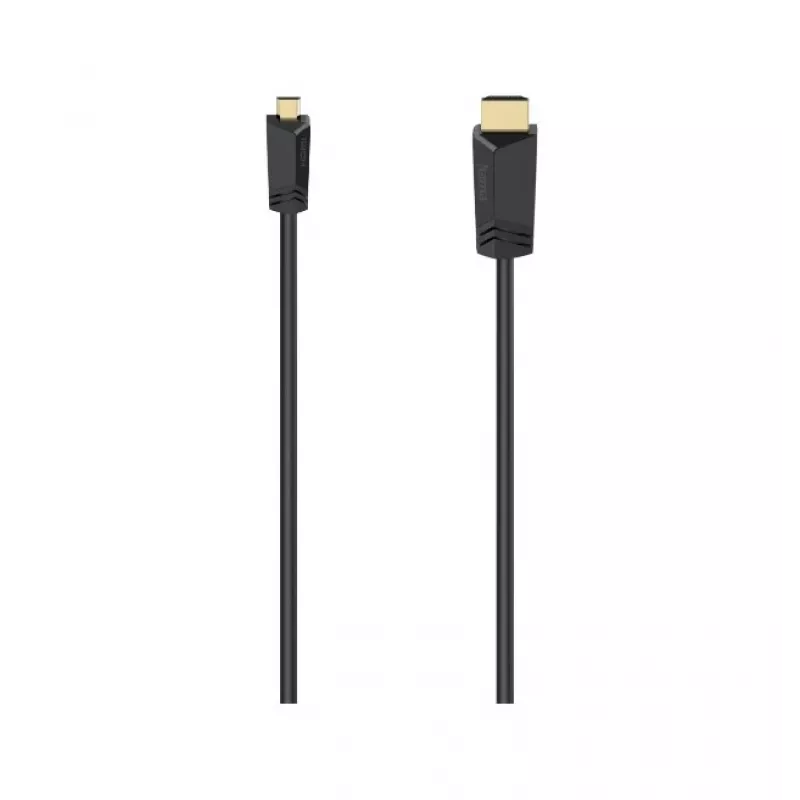

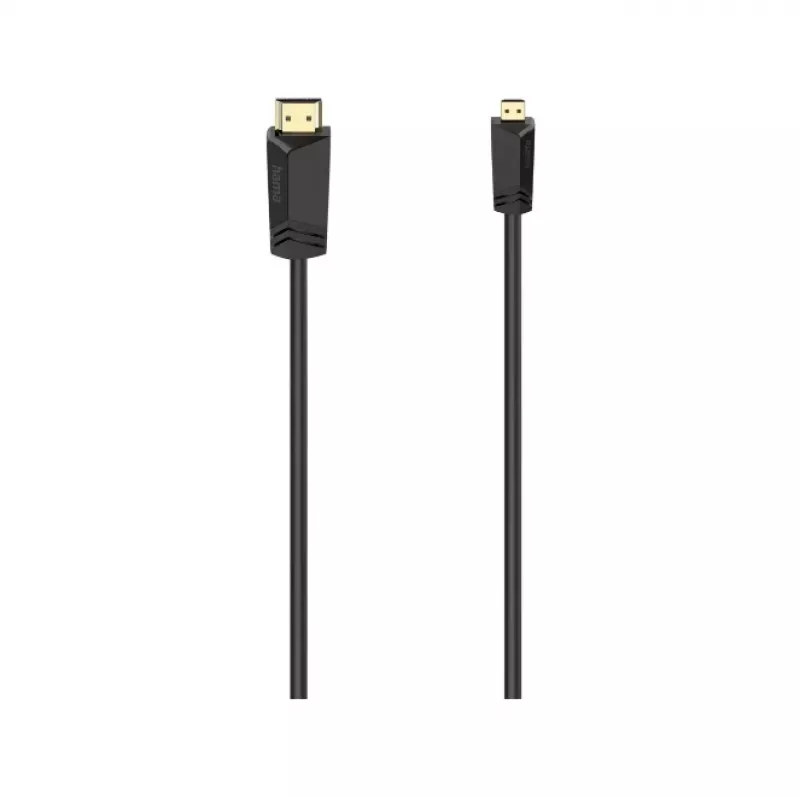

Hama 00074259 Cable HDMI 2 m HDMI Tipo A (estándar) HDMI Tipo D (Micro) Negro

The HAMA 00074259 HDMI cable is a 2 m black cable with HDMI Type A (standard) and HDMI Type D (micro) connectors. It supports high-speed digital audio and video transmission up to 18 Gbit/s and is suited for Ultra HD (4K) resolutions including 3840 x 2160 at common refresh rates and 4096 x 2160 at 24 Hz. The cable includes an integrated channel for network data and Audio Return Channel (ARC) functionality, and features gold-plated contacts for reliable signal transmission.

Advantages

High-quality shielding and materials reduce interference to provide clear picture and sound. Support for 3D transmission and a broad colour depth (30/36/48 bit) ensure rich image reproduction. The integrated network channel supports data transfer up to 100 Mbit/s, and the gold-plated plug lowers contact resistance for stable connections.

Suitable for

• Connecting a digital camera or camcorder to a TV or projector
• Linking laptops, set-top boxes, or gaming consoles to displays with HDMI Type A inputs
• Connecting mobile devices or small cameras with HDMI Type D (micro) output to larger screens
• Home cinema setups requiring ARC for returning audio to AV receivers or soundbars

Key specifications

• Cable length: 2 m
• Connectors: HDMI Type A (standard) to HDMI Type D (micro)
• Maximum data rate: 18 Gbit/s
• Supported resolutions: 3840 x 2160 at 24/25/30/50/60 Hz; 4096 x 2160 at 24 Hz
• Colour depth: 30/36/48 bit
• Network channel: up to 100 Mbit/s
• Audio support: PCM, Dolby Digital, DTS, MPEG, DVD audio, SACD, Dolby Digital Plus, TrueHD, dts-HD
• Features: 3D transmission, HDMI CEC support, Audio Return Channel (ARC)
• Product colour: Black

How to use

Insert the HDMI Type D (micro) connector into the source device with a compatible micro HDMI socket and connect the HDMI Type A (standard) plug to the display, TV or projector. Ensure both devices are powered on and select the corresponding HDMI input on the display. If using ARC, enable ARC on both the TV and the audio device in their settings. For network functionality, connect compatible devices and enable HDMI network features where required.

Recommendations

For optimal performance, avoid sharp bends and kinks in the cable, keep the cable away from strong electromagnetic sources, and fully seat gold-plated connectors to ensure low contact resistance. Use the cable for the supported resolutions and refresh rates listed in the key specifications to maintain signal integrity.
