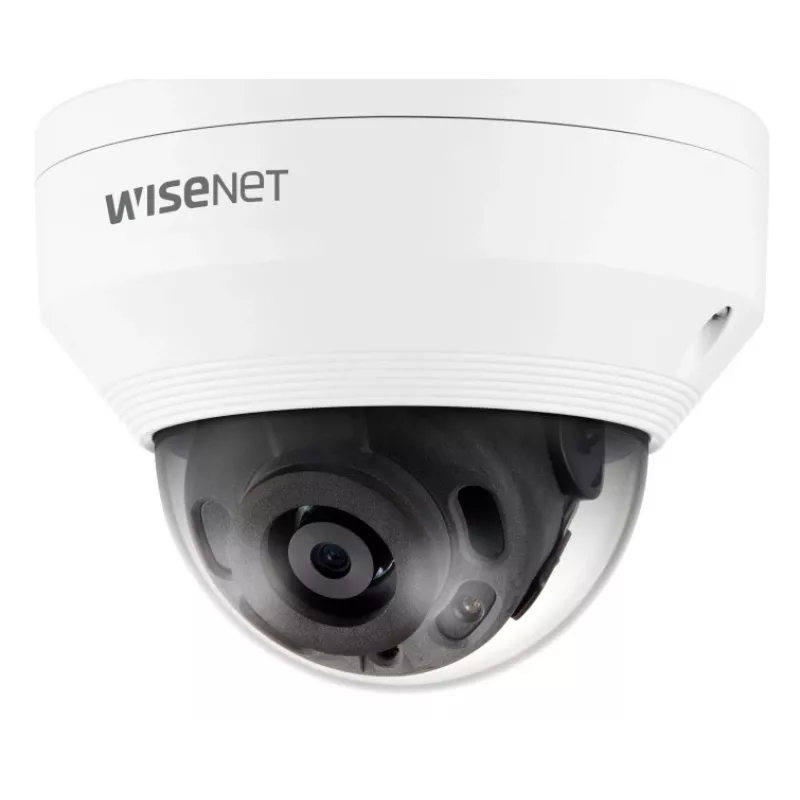

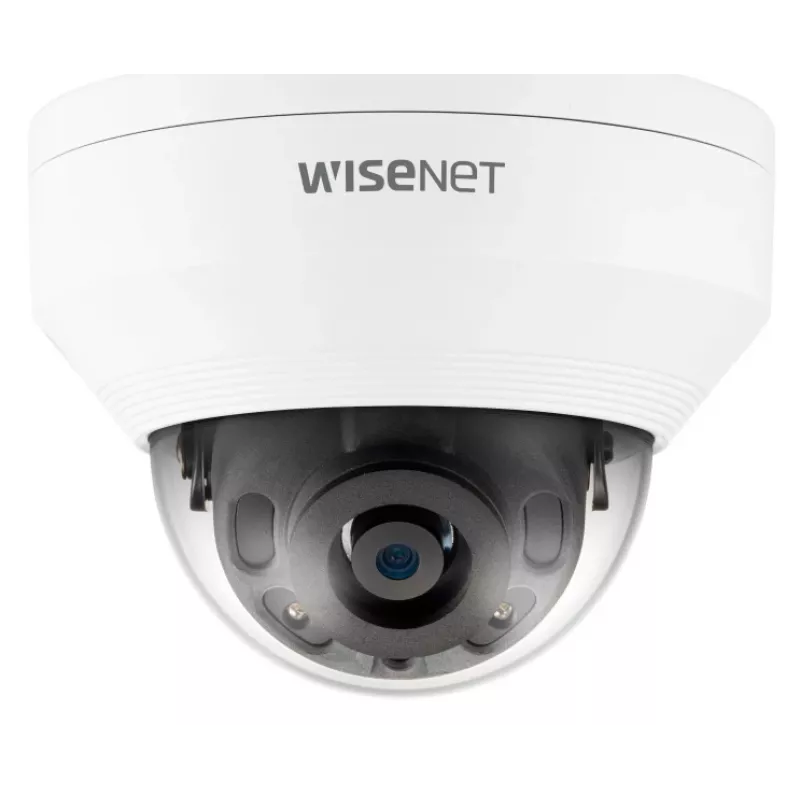

Cámara de vigilancia IP domo Hanwha QNV-6022R 1920 x 1080 píxeles

The Hanwha QNV-6022R dome IP security camera delivers 1920 x 1080 resolution for clear video capture in indoor surveillance environments. Designed for wired Ethernet connectivity, this camera supports stable network transmission and integrates into IP-based security systems. The dome housing allows ceiling or wall mounting and a wide 355° rotation angle, while the CMOS sensor and fixed 4 mm focal length provide a consistent field of view suitable for general monitoring tasks.

Advantages

The QNV-6022R combines Full HD resolution with 30 fps frame rate to provide smooth video suitable for identifying movement and recording events. Its wired Ethernet LAN connection ensures reliable data transfer and continuous operation. The compact dome design and dual-colour finish (black and white) make it adaptable to different interior styles, while the wide rotation range and horizontal/vertical viewing angles enable flexible coverage of target areas. Built-in video motion detection supports automated event response in security setups.

Suitable for

• Indoor retail surveillance and shop-floor monitoring
• Office and reception area monitoring
• Corridor and lobby coverage in commercial buildings
• Public area monitoring where discreet ceiling or wall mounting is needed

Key specifications

• Resolution: 1920 x 1080 pixels (Full HD)
• Frame rate: up to 30 fps
• Sensor type: CMOS
• Focal length: fixed 4 mm
• Horizontal viewing angle: 87.6°
• Vertical viewing angle: 46.4°
• Rotation range: 355°
• Connectivity: wired Ethernet LAN
• Mounting: ceiling or wall mount
• Video features: motion detection
• Product colour: black and white
• Weight: 0.51 kg

How to use

Mount the dome camera on a ceiling or wall using appropriate hardware and ensure the camera housing is secured. Connect the camera to a wired Ethernet network for power and data transmission according to your network and PoE setup. Adjust the rotation and orientation to achieve the desired framing within the horizontal and vertical viewing angles. Configure the camera settings through the integrated IP interface or the compatible video management system, setting resolution to 1920 x 1080 and frame rate up to 30 fps, and enable video motion detection as required for event alerts and recordings.

Recommendations

Place the camera at a height that maximizes coverage while minimizing blind spots; use the 355° rotation to fine-tune the monitored area. Ensure stable wired network connections and configure motion detection zones to reduce false alerts. For continuous monitoring, verify that the recording system supports Full HD streams at 30 fps and that storage capacity matches retention requirements.
