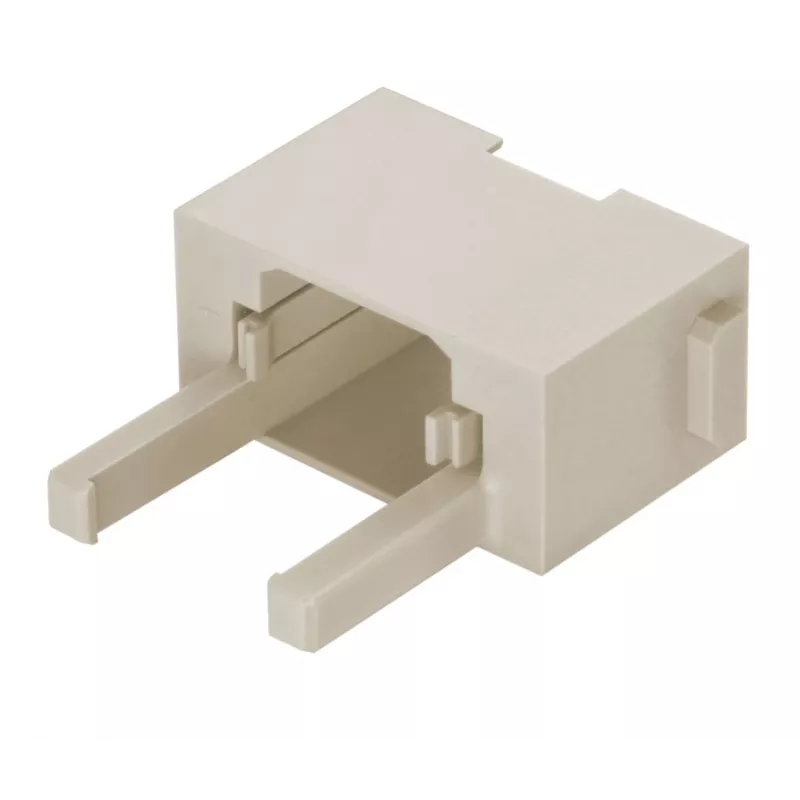

HARTING Han RJ45 Módulo pasamuros hembra 09140014722

The HARTING Han RJ45 Module Panel Feed Through Female (09140014722) is a high-performance, shielded RJ45 feed-through connector designed for industrial Ethernet applications. Part of the Han® 3A series, this module provides a reliable and robust connection for Cat. 6A networks, supporting data rates up to 10 Gbit/s. Its panel feed-through design allows for easy integration into control cabinets, patch panels, and junction boxes, ensuring secure and stable data transmission in demanding environments.

Advantages

This module offers exceptional durability with a minimum of 500 mating cycles and a wide operating temperature range from -40 °C to +85 °C. The gold-plated contacts ensure low resistance and corrosion resistance, while the shielded design (STP) minimizes electromagnetic interference. The IP20 rating (unmated) provides protection against solid objects, making it suitable for indoor industrial settings.

Suitable for

• Industrial Ethernet networks requiring Cat. 6A performance
• Panel feed-through applications in control cabinets and patch panels
• Harsh environments with temperature extremes and vibration
• Data centers and telecommunications infrastructure

Key specifications

• Connector Type: RJ45, Female (both sides)
• Ethernet Category: Cat. 6A
• Data Rate: 10 Gbit/s
• Mounting Type: Panel Feed-Through
• Series Compatibility: Harting Han® 3A
• Shielding: Shielded (STP)
• Number of Ports: 1
• Rated Voltage: 50 V
• Rated Current: 1.5 A
• Operating Temperature: -40 °C to +85 °C
• Housing Material: Polycarbonate (PC)
• Contact Plating: Gold
• Flammability Rating: UL 94 V-0
• Mating Cycles: ≥ 500
• IP Rating (unmated): IP20
• Standard: IEC 60603-7-51
• Colour: Black

Recommendations

For optimal performance, pair this module with HARTING Han® 3A housings and Cat. 6A shielded cables. Ensure proper grounding to maintain shielding effectiveness. Suitable for use in industrial automation, machine building, and transportation applications.
