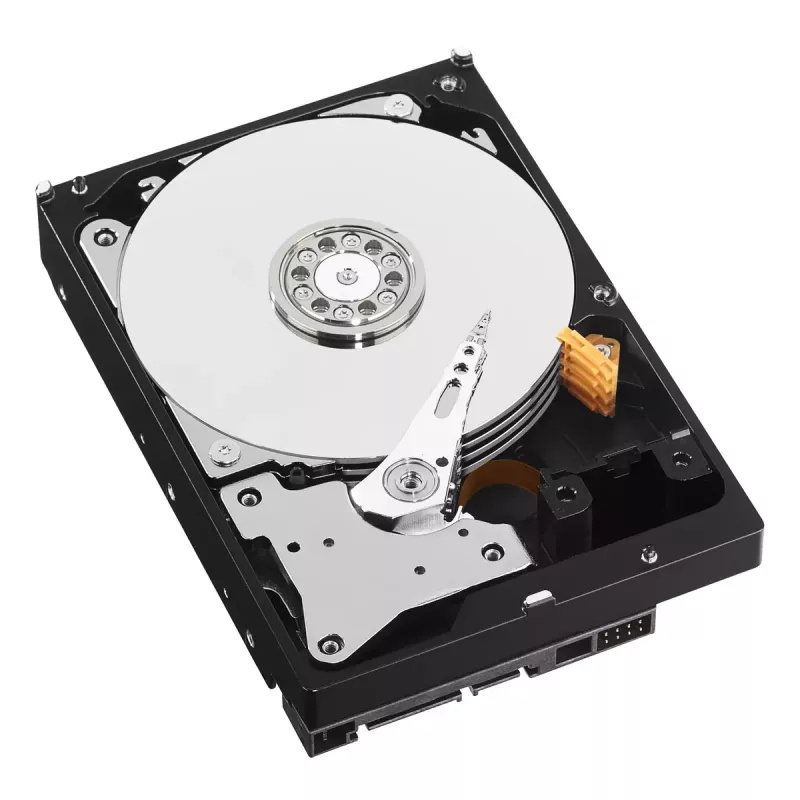

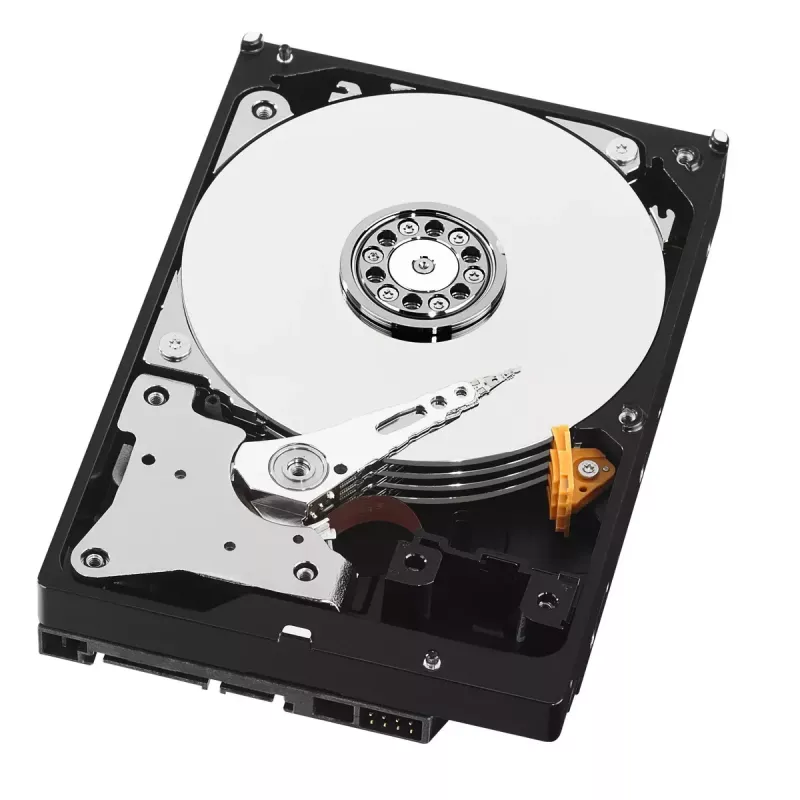

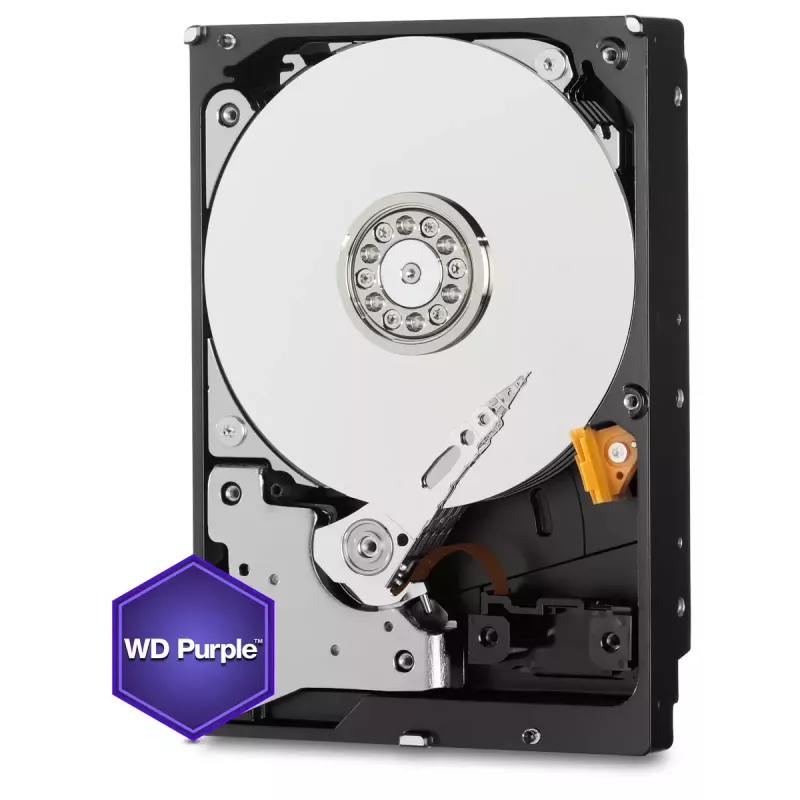

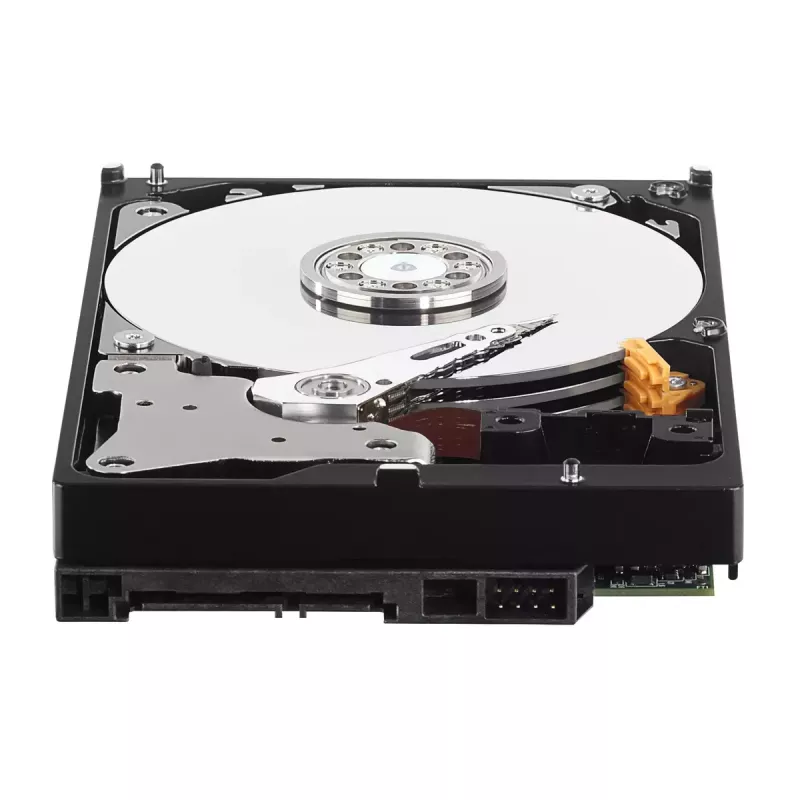

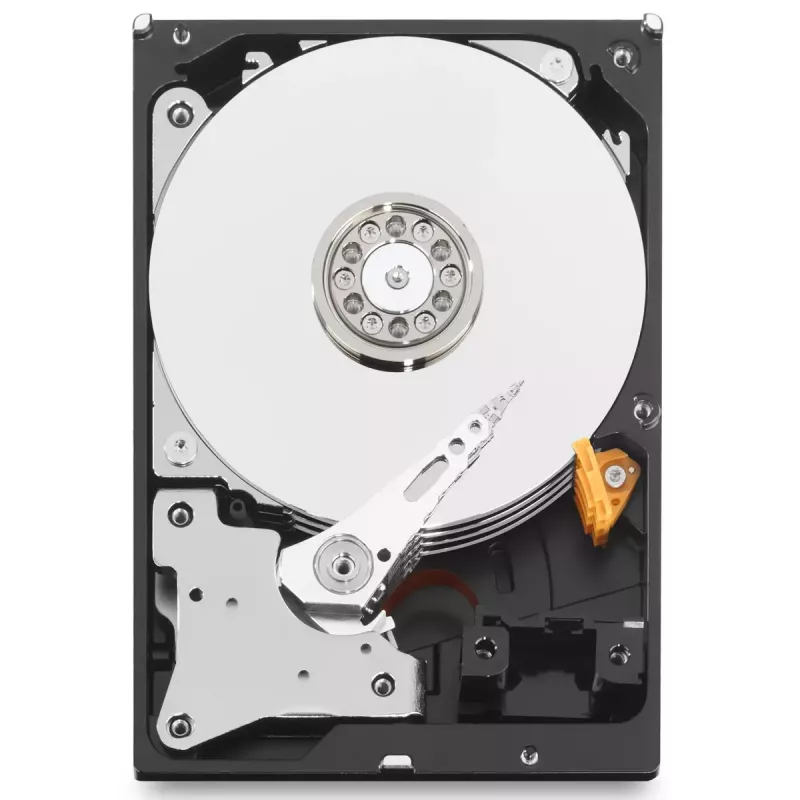

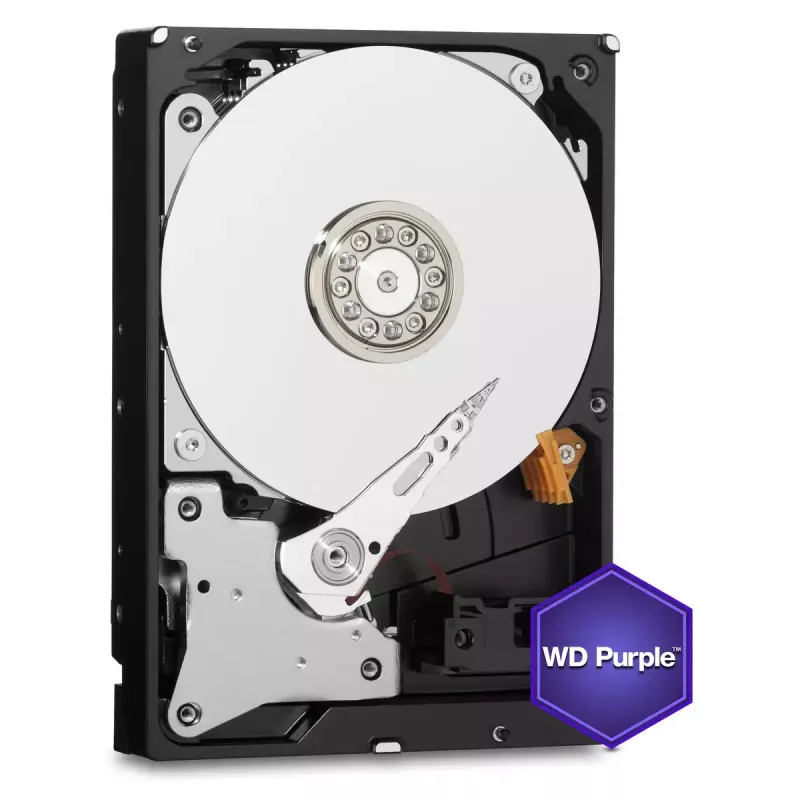

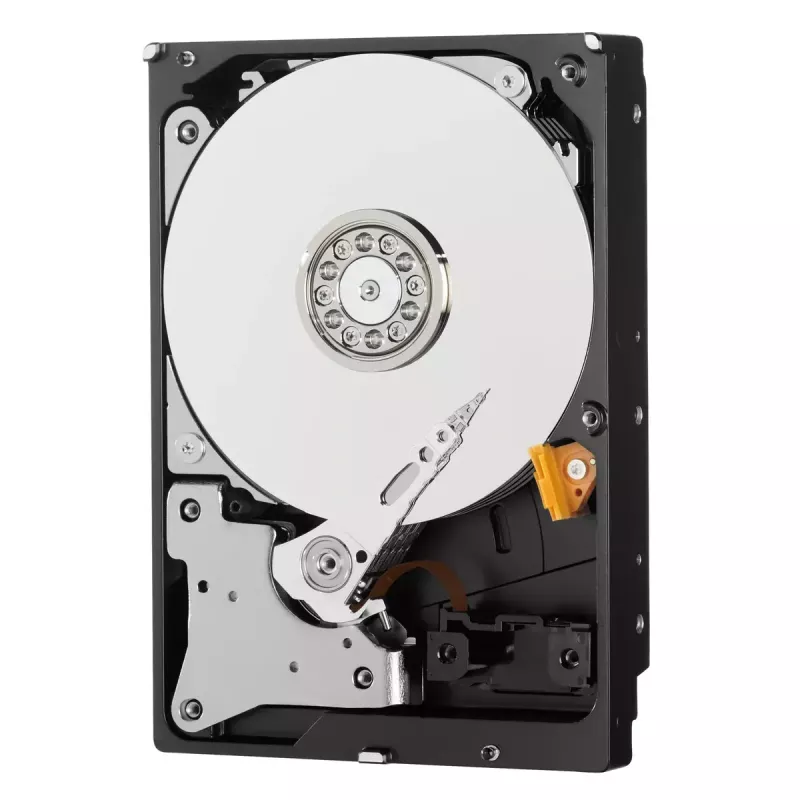

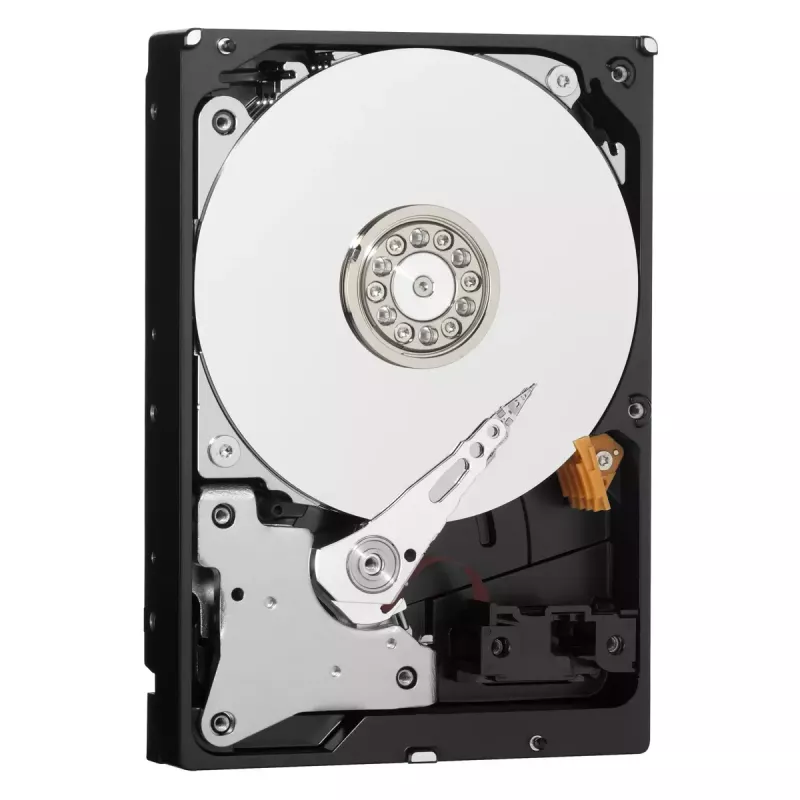

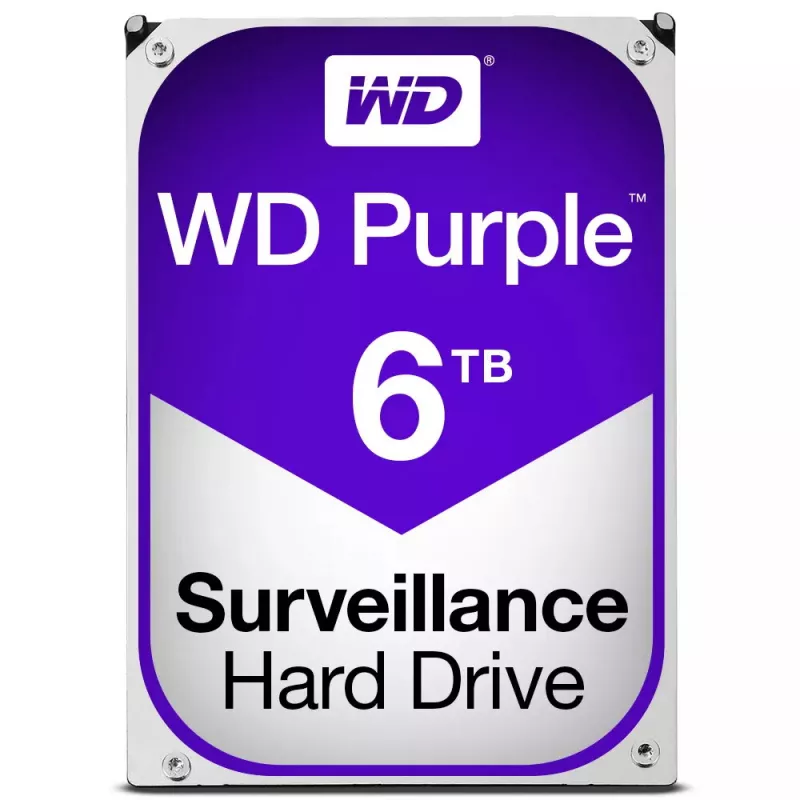

HDD Western Digital 6TB 3,5 inch SATA WD60PURX

The Western Digital WD Purple 6TB HDD (WD60PURX) is a 3.5-inch SATA hard drive engineered for 24/7 surveillance systems. With 6 TB capacity, 5400 RPM class performance and a workload rating designed for heavy write activity, this drive supports multiple HD video streams and continuous recording for DVR and NVR solutions. It is optimized for reliability in high-temperature, always-on environments and includes AllFrame 4K™ technology to improve video playback and reduce frame loss.

Advantages

WD Purple drives are purpose-built for surveillance: they offer a higher workload rating than desktop drives, improved ATA streaming through AllFrame 4K™ technology, and compatibility with both DVR and NVR systems. The 6 TB capacity lets you retain more footage and higher-quality frames per second while maintaining sustainable performance in continuous recording environments. Acronis True Image WD Edition is available as a free tool for drive cloning and backups.

Suitable for

• 24/7 DVR and NVR surveillance systems
• Multi-camera installations (supports up to 64 cameras)
• Continuous high-definition video recording and storage

Key specifications

• Model: Western Digital WD Purple WD60PURX
• Capacity: 6 TB (6000 GB)
• Form factor: 3.5 inch
• Interface: SATA
• Spindle speed class: 5400 RPM
• Workload rating: up to 180 TB/yr (optimized for surveillance)
• Maximum supported cameras: up to 64
• Weight: 0.75 kg

How to use

Install the WD Purple 3.5-inch SATA drive into a compatible DVR or NVR according to the device manufacturer’s installation instructions. Connect the SATA data and power cables, initialize and format the drive within the recorder’s storage management interface if required, then configure recording settings (resolution, frame rate, retention period) in the surveillance system to match your capacity needs.

Recommendations

For typical surveillance deployments WD recommends 4 TB or greater; the 6 TB WD Purple drive is suitable when you need extended retention or higher-definition footage. Use WD Purple in systems that provide adequate cooling for continuous operation and consult your DVR/NVR vendor for compatibility with specific models. Use Acronis True Image WD Edition for backups or cloning before replacing drives.
