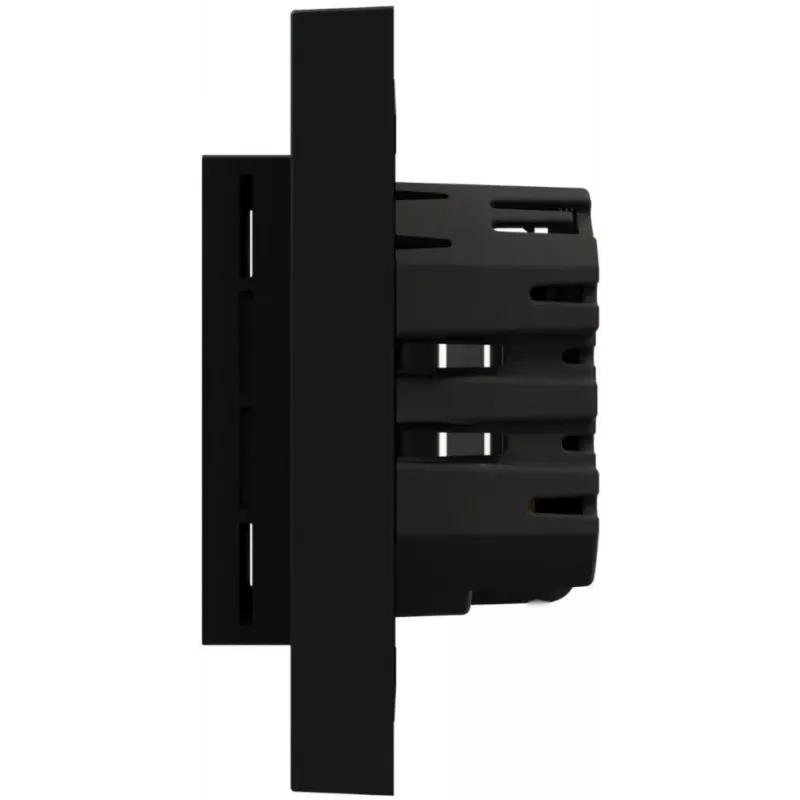

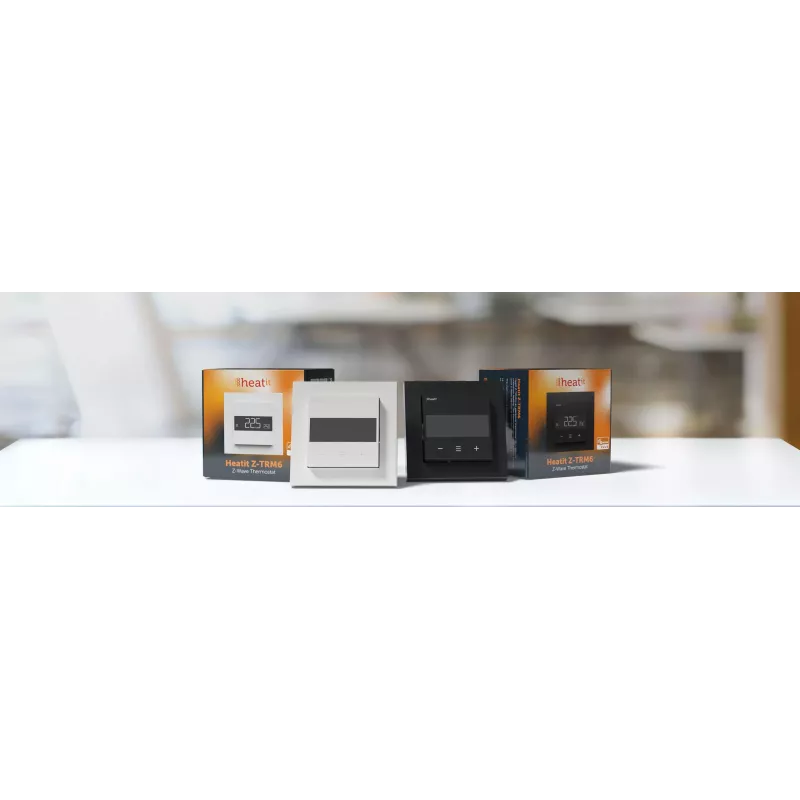

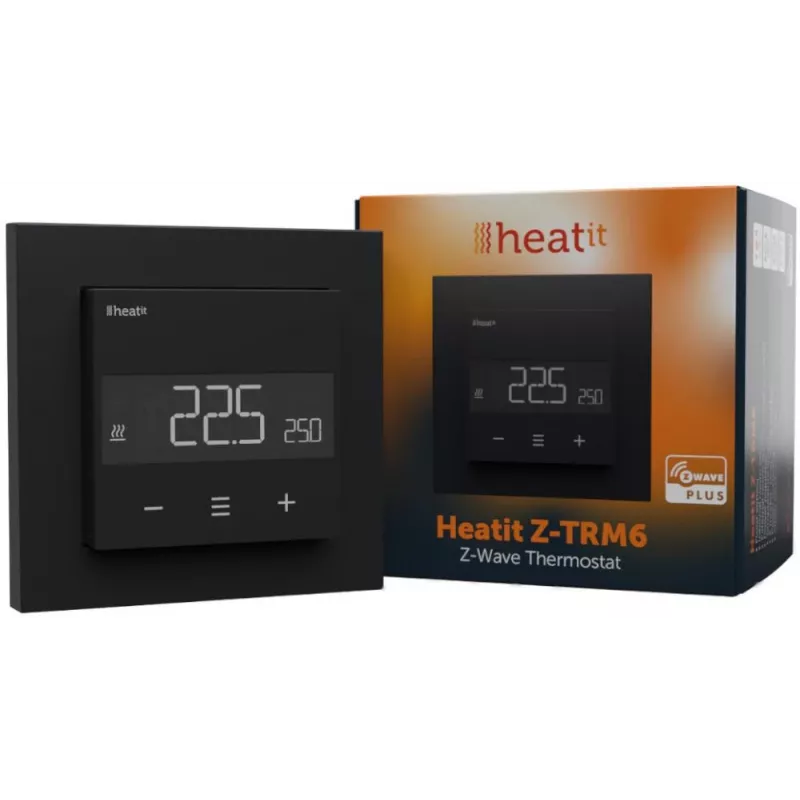

HEATIT Z-TRM6 Black Matt Termostato Z-Wave 3600W 16A 868.4 MHz

The HEATIT Z-TRM6 is a smart Z-Wave thermostat designed for precise temperature control in residential and commercial spaces. Featuring a sleek black matt finish and a color LCD display, this thermostat integrates seamlessly with Z-Wave Plus V2 networks for remote management and automation.

Advantages

With built-in power metering, child lock, weekly programming, open window detection, and boost function, the Z-TRM6 offers energy savings and enhanced comfort. Its compatibility with S2 security protocols ensures safe communication.

Suitable for

• Electric floor heating systems
• Radiant heating control
• Smart home automation setups

Key specifications

• Wireless Protocol: Z-Wave Plus V2 (800 series chip)
• Operating Frequency: 868.4 MHz (EU)
• Power Supply: 230V AC 50/60Hz
• Max Load: 16A / 3600W (Resistive Load)
• Power Consumption: < 2W
• Sensor Type: Internal Air Sensor, External NTC Floor Sensor (10kΩ)
• Temperature Set Range: 5°C - 40°C

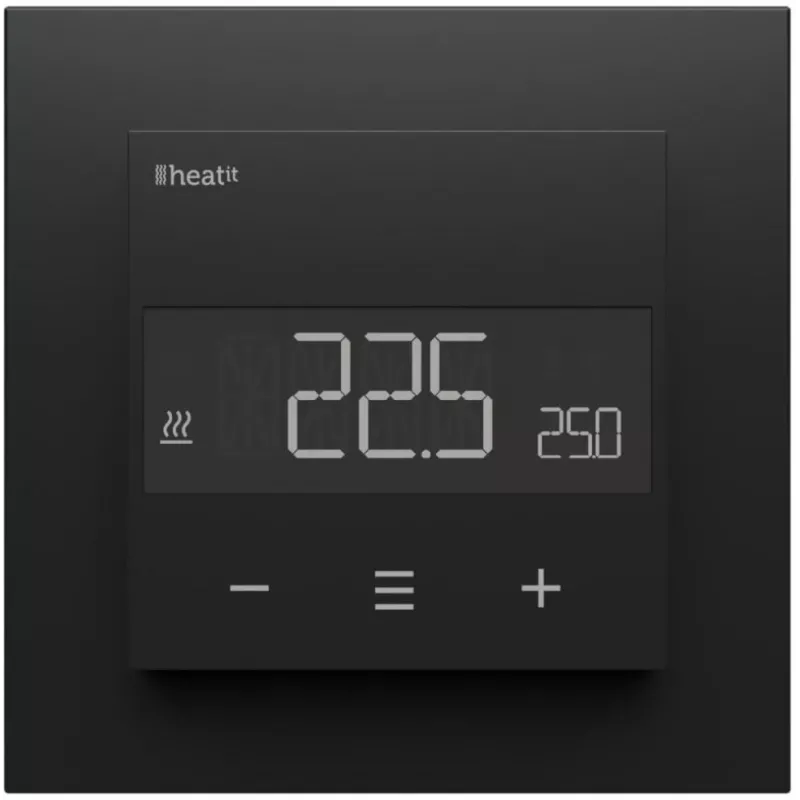

• Display Type: Color LCD
• Color: Black Matt
• IP Rating: IP21
• Installation Type: Standard European Wall Box (Ø60mm)
• Security Protocol: S2 Authenticated, S2 Unauthenticated
• Firmware Updates: Over-The-Air (OTA)
• Operating Temperature: 0°C - 40°C
• Humidity Range: 10% - 90% RH (non-condensing)

Recommendations

For optimal performance, pair with a Z-Wave certified gateway. Ensure proper installation by a qualified electrician.
