HEINRICH KOPP 353844003 caja de derivación, IP54, 7 entradas de cable, gris

IP54-rated distribution box with 7 elastic membrane cable entries for safe indoor and outdoor electrical connections.

Overview

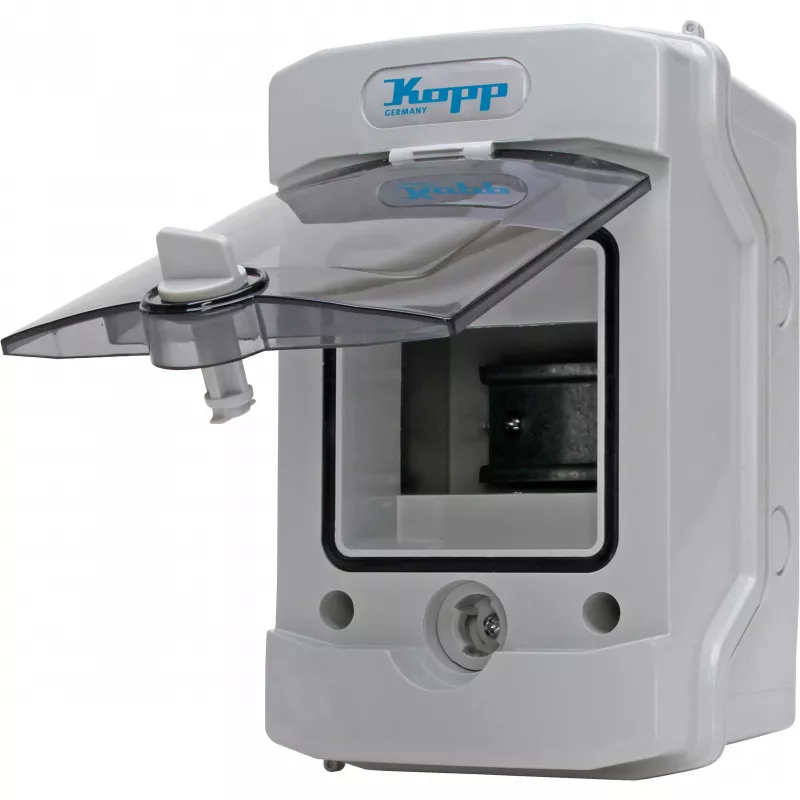

The HEINRICH KOPP 353844003 is a surface-mounted distribution box made from halogen-free, UV-resistant polypropylene in grey (RAL 7035). It provides a compact enclosure for electrical wiring, with a snap-on lid for easy access.

What stands out

• 7 elastic membrane cable entries (M20) for flexible cable routing
• IP54 protection against dust and water splashes
• Halogen-free and UV-resistant material for durability
• Impact resistance IK07
• Rated insulation voltage 400 V
• Operating temperature range -25 °C to +40 °C
• Glow-wire test 650 °C

Technical details

• Material: Polypropylene (PP)
• Colour: Grey (RAL 7035)
• External dimensions: 100 x 100 x 50 mm
• Mounting type: Surface-mounted
• Lid type: Snap-on lid
• Application area: Indoor and outdoor
• Standards/Certifications: VDE

Our verdict

A reliable distribution box for safe electrical connections in various environments, with easy installation and robust protection.
