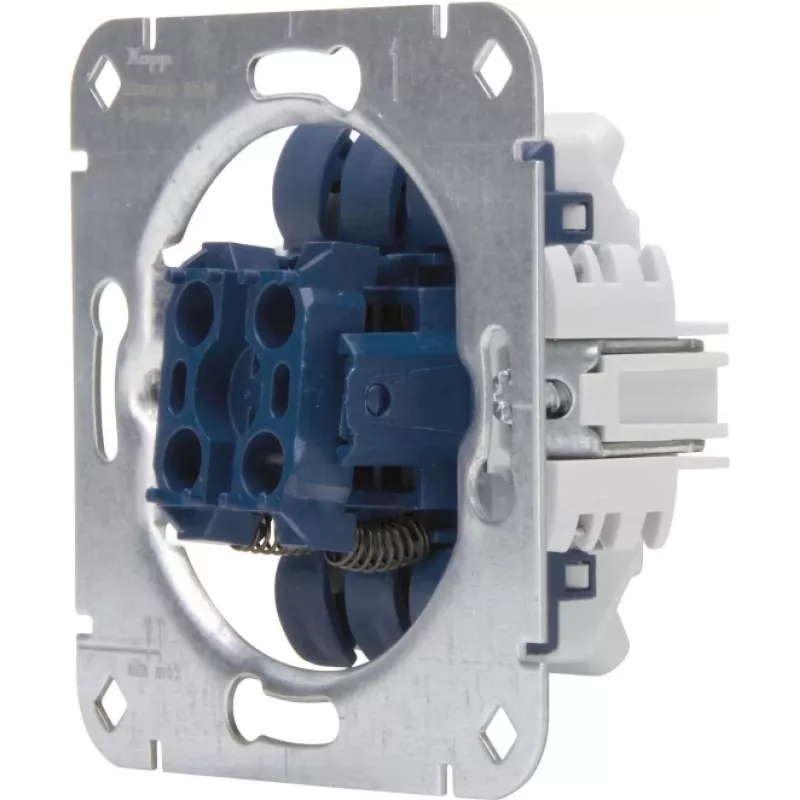

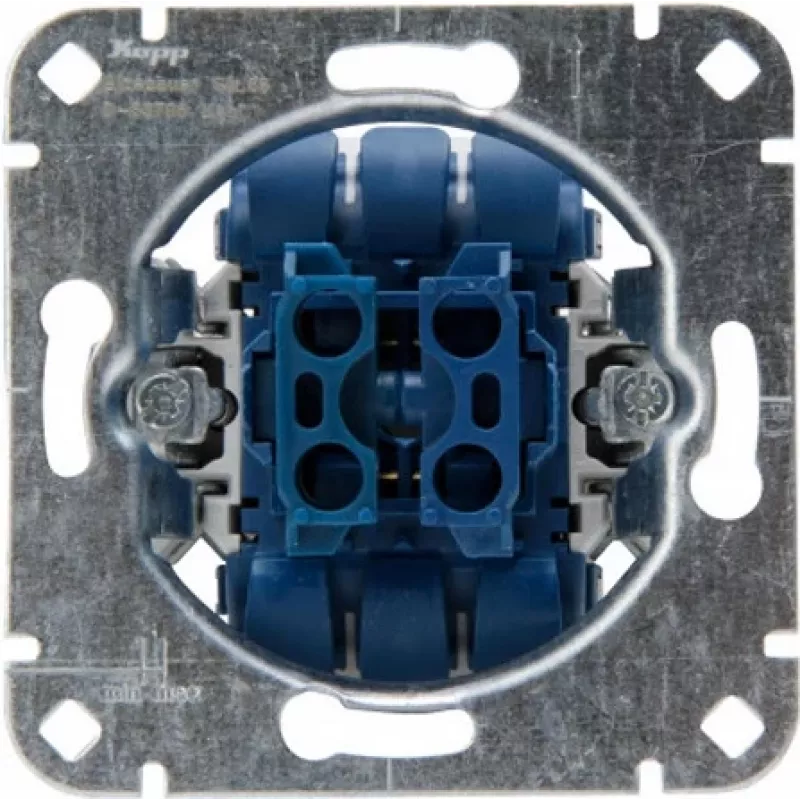

HEINRICH KOPP 508500008 Mecanismo de interruptor de persiana empotrable 250V 10A IP20 aluminio

Electricians and installers working on residential or commercial projects use this HEINRICH KOPP blind switch insert to control motorized blinds, shutters, and roller shutters. It fits into standard flush-mounted boxes and works with KOPP Paris, Vision, and common 55x55mm switch ranges. The insert provides three control positions (Up, Stop, Down) with a latching switching principle.

Key specifications

• Function: Control of motorized blinds, shutters, and roller shutters
• Mounting type: Flush-mounted (Unterputz)
• Control positions: 3 (Up - Stop - Down)
• Operating voltage: 250 V AC
• Rated current: 10 A
• Ingress protection: IP20
• Connection type: Screw terminals
• Switching principle: Latching (Rastend)
• Number of poles: 1-pole
• Material: Thermoplastic
• Colour: Aluminium
• Compatibility: KOPP Paris, Vision, and standard 55x55mm switch ranges
• Required accessories: Cover and frame (not included)
• Certifications: VDE, CE
• Dimensions (front plate): 71 x 71 mm
• Installation depth: 32 mm
• Operating temperature range: -5°C to +40°C

Why choose it

The insert is built for reliable switching of motorized window coverings. Its latching mechanism holds the selected position until changed, and screw terminals provide secure wiring. The aluminium finish matches modern switch designs.

Ideal use cases

• Residential blind and shutter control
• Commercial roller shutter installations
• Retrofit projects using KOPP switch ranges

Good to know

The insert is supplied without cover and frame; these must be ordered separately according to the desired switch design. Installation requires a standard flush-mounted box.
