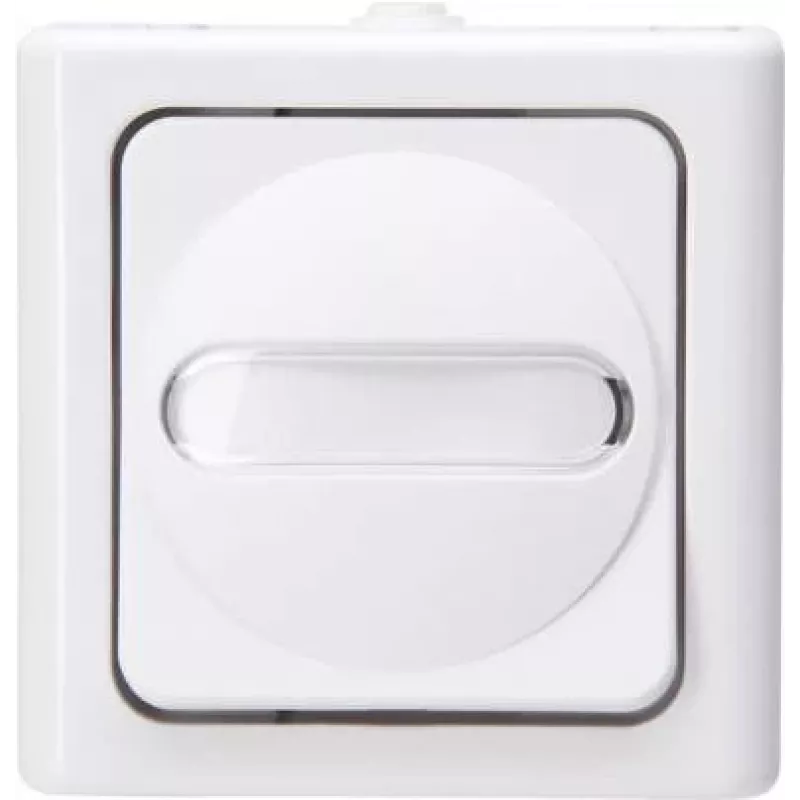

HEINRICH KOPP 560802003 Pulsador 1P blanco

When a standard light switch is too bulky or you need a momentary contact for a bell, door opener, or staircase timer, a simple pushbutton is the clean solution. The Kopp 560802003 provides a single-pole, normally-open contact in a flush-mounted design that disappears into the wall.

Who is it for

Electricians and DIY installers who need a reliable, no-frills pushbutton for residential or light commercial switching tasks. It fits standard flush-mounted boxes and matches the Kopp Paris series for a consistent look.

Main features

• Momentary pushbutton action: press to close the circuit, release to open.
• Single-pole, 1 normally-open contact.
• Rated for 250 V AC and 10 A, suitable for lighting and small loads.
• Flush-mounted installation with screw terminals for secure wiring.
• White thermoplastic housing, unilluminated.

Specifications

• Switch type: Pushbutton switch
• Switch function: Momentary (Taster)
• Contact configuration: 1 NO
• Number of poles: 1P
• Rated voltage: 250 V AC
• Rated current: 10 A
• Mounting type: Flush-mounted
• Colour: White
• Connection type: Screw terminals
• Material: Thermoplastic
• IP rating: IP20
• Actuator type: Flush button
• Illumination: No

Tips

Pair with a compatible frame from the Kopp Paris series. Ensure the circuit is de-energised before installation. For door opener or bell applications, verify the load does not exceed the rated current.
