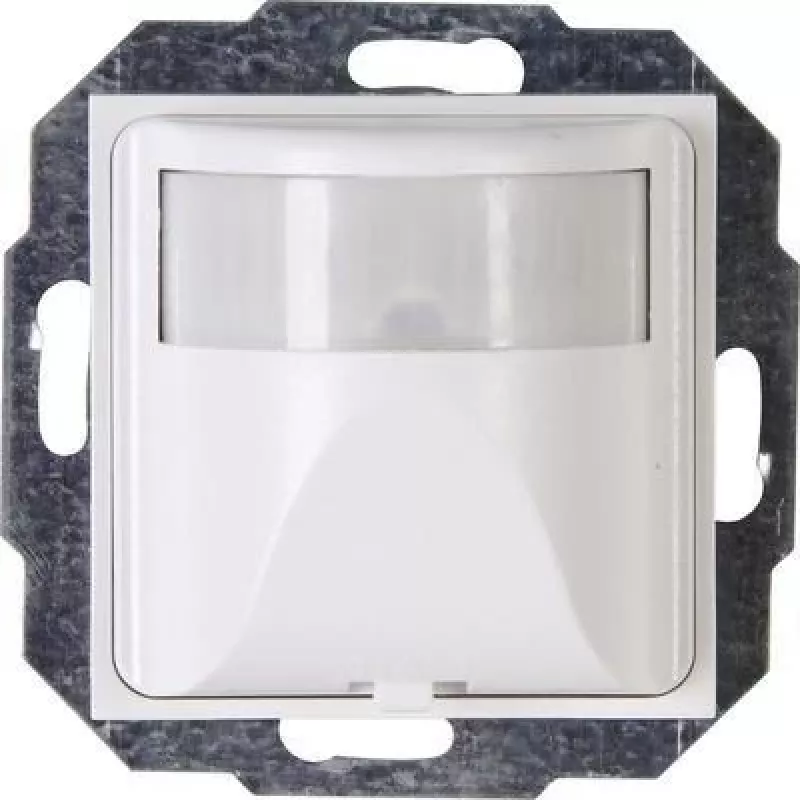

HEINRICH KOPP 805829013 Detector de movimiento PIR con cable, blanco, 180°, IP44

This wired PIR motion detector automatically switches lighting on when movement is detected and off after an adjustable delay. Its 180° detection angle and 12 m range cover large areas, while the IP44 rating allows indoor and outdoor installation. The sensor is surface-mounted and operates on 230 V AC.

Advantages

Reliable switching of incandescent, LED and fluorescent loads up to 300 W. Adjustable light sensitivity (3–2000 lx) prevents unnecessary activation in daylight. The time delay can be set from 10 seconds to 15 minutes.

Suitable for

• Entrance areas, corridors, stairwells and garages
• Outdoor areas protected from direct rain
• Automatic lighting control in residential and commercial buildings

Key specifications

• Sensor type: Passive infrared (PIR)
• Detection angle: 180°
• Detection range: max. 12 m
• Mounting type: Surface-mounted
• Protection class: IP44
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 1200 W
• Max. switching capacity (LED/fluorescent): 300 W
• Time setting range: 10 s – 15 min
• Light sensitivity range: 3 – 2000 lx
• Recommended installation height: 1.8 – 2.5 m
• Material: UV-stabilized polycarbonate
• Connection type: Wired
• Switching output: Relay
• Standby power consumption: < 0.5 W
• Operating temperature: -20 °C to +40 °C

Recommendations

For best results, install the sensor at a height of 1.8–2.5 m, avoiding direct sunlight and heat sources. Adjust the light sensitivity and time delay according to the location to prevent false triggers.
