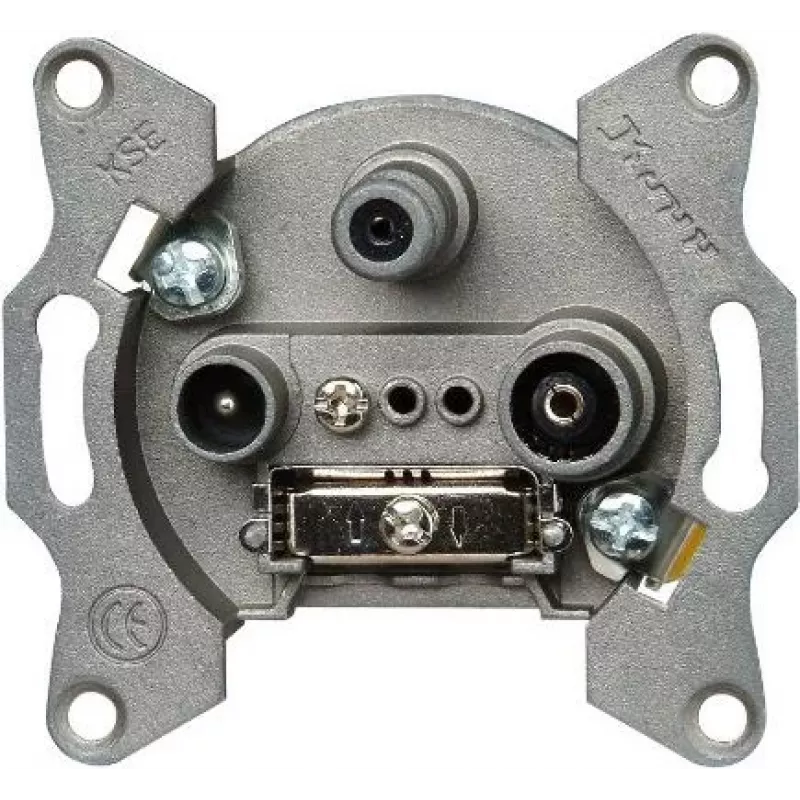

HEINRICH KOPP 916400181 Toma de conexión SAT + TV + Radio, gris

This flush-mounted terminal socket combines SAT, TV, and Radio connections in a single grey unit, featuring DC passage for LNB power supply and a shielding factor greater than 75 dB.

Advantages

Three outputs in one device simplify installation and reduce wall clutter. The high shielding factor minimizes interference, while DC passage supports remote-powered LNBs. Frequency ranges cover terrestrial and satellite bands, making it compatible with DVB-T/T2, DVB-C, and DVB-S/S2 signals.

Suitable for

• Star networks and single-cable systems in residential installations
• Connecting TVs, radios, and satellite receivers at a single wall outlet
• Installations requiring LNB power supply through the socket

Key specifications

• Outputs: TV (IEC male), Radio (IEC female), SAT (F-connector female)
• Frequency range: TV/Radio 5–862 MHz, SAT 950–2400 MHz
• Attenuation: TV 1.5 dB, Radio 1.5 dB, SAT 2.0 dB
• Impedance: 75 Ohm
• Return loss: >10 dB
• Housing material: Plastic

Recommendations

For best performance, ensure proper cable shielding and use a compatible LNB if DC passage is required.
