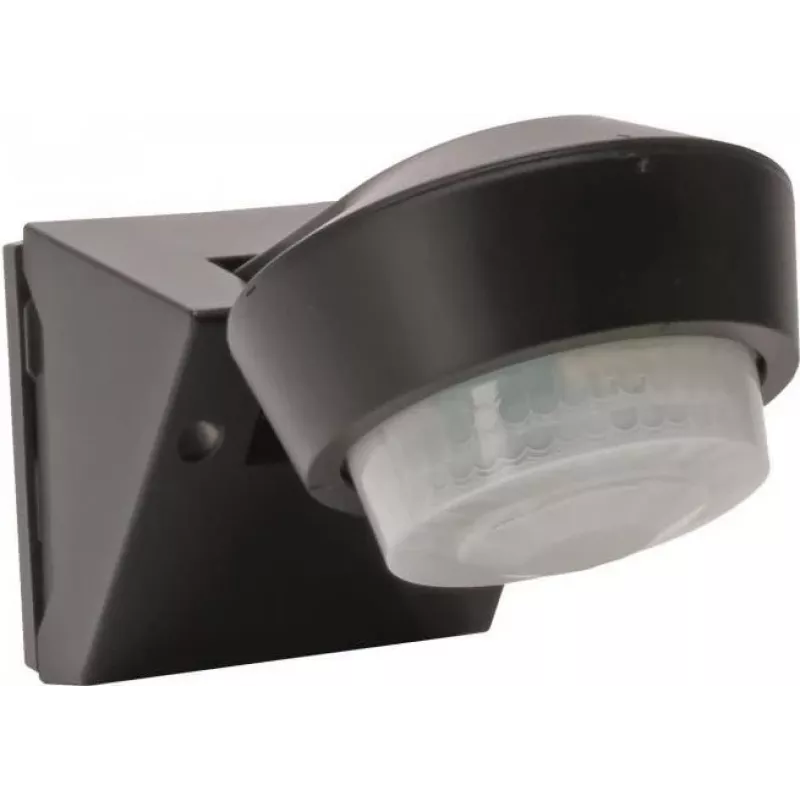

HEINRICH KOPP BWM 824615019 SW - Interruptor detector de movimiento exterior, 240°, IP55, Negro

The HEINRICH KOPP BWM 824615019 SW is a high-quality outdoor motion sensor switch designed for reliable automatic lighting control. With a wide 240° detection angle and a range of up to 12 meters, it ensures comprehensive coverage of your outdoor areas. The switch is IP55 rated, making it dust-tight and protected against water jets, ideal for exterior use. Its sleek black design blends seamlessly with modern architecture.

Advantages

This motion sensor switch offers energy-efficient operation by automatically turning lights on only when needed. The adjustable time setting (approx. 10 seconds to 15 minutes) and twilight setting (approx. 3-2000 lux) provide flexibility to suit various environments. The UV-stabilized polycarbonate housing ensures long-lasting durability against weather conditions.

Suitable for

• Outdoor areas such as gardens, driveways, patios, and entrances
• Commercial and residential security lighting
• Automatic lighting for pathways and parking lots

Key specifications

• Detection Angle: 240°
• Detection Range: Up to 12 m
• Ingress Protection: IP55
• Color: Black
• Mounting Type: Surface-mounted
• Operating Voltage: 230 V AC, 50 Hz
• Max. Switching Power (Incandescent/Halogen): 2000 W
• Max. Switching Power (LED): 300 W
• Max. Switching Power (Fluorescent, uncompensated): 1000 VA
• Time Setting Range: Approx. 10 seconds - 15 minutes
• Twilight Setting Range: Approx. 3 - 2000 Lux
• Recommended Mounting Height: 1.8 - 2.5 m
• Protection Class: II
• Material: UV-stabilized polycarbonate
• Operating Temperature Range: -20°C to +40°C
• Application Area: Outdoor

Recommendations

For optimal performance, mount the sensor at a height of 1.8-2.5 meters and ensure the detection area is free of obstructions. This switch is compatible with most standard outdoor lighting fixtures. Always consult a qualified electrician for installation.
