HEINRICH KOPP H03VV-F 2 x 0,75 mm² cable flexible de PVC blanco 10 m 151510843

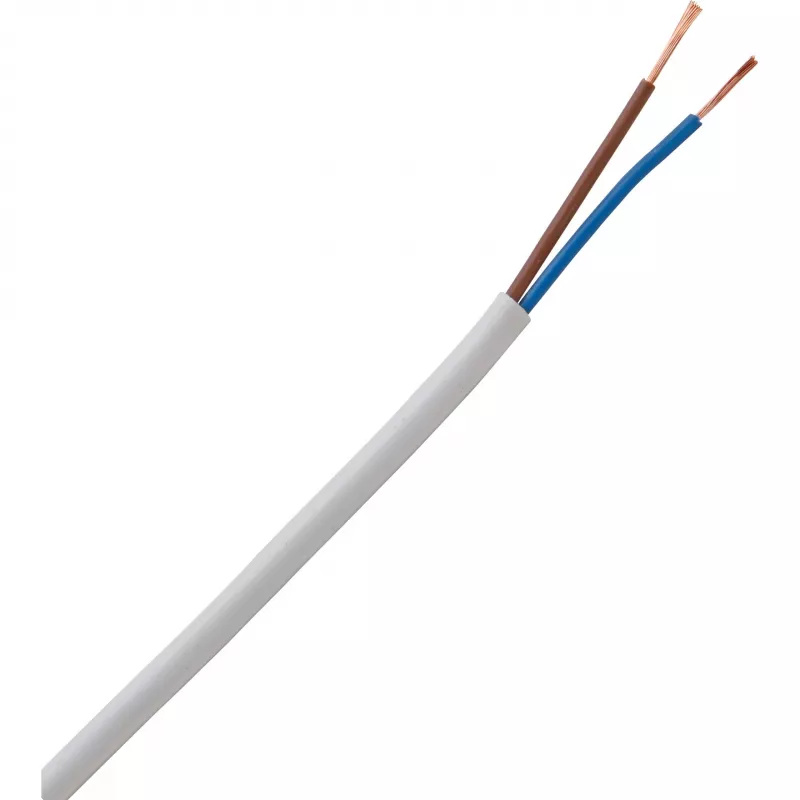

Light-duty household appliances in dry rooms often need a flexible, safe power connection. This 10-meter white PVC cable with two fine-stranded copper conductors (0.75 mm² each) provides exactly that, rated for 300/300 V and suitable for fixed or flexible use.

Who is it for

Electricians, technicians, and DIYers replacing or extending power cords on small appliances like lamps, radios, or office equipment in dry indoor environments.

Main features

• H03VV-F harmonized cable type for light duty
• 2 cores × 0.75 mm² fine-stranded copper
• White PVC insulation and sheath
• 10 m length
• Flame retardant according to EN 60332-1-2

Specifications

• Cable standard: H03VV-F
• Number of cores: 2
• Core cross-section: 0.75 mm²
• Rated voltage: 300/300 V
• Conductor material: Copper
• Conductor type: Fine-stranded, flexible
• Insulation material: PVC
• Sheath material: PVC
• Cable colour: White
• Cable length: 10 m
• Temperature range (fixed installation): -5°C to +70°C
• Temperature range (flexible use): +5°C to +70°C
• Max. operating temperature (conductor): +70°C
• Minimum bending radius (fixed): 4 × outer diameter
• Minimum bending radius (flexible): 6 × outer diameter
• Flame retardancy: Yes, according to EN 60332-1-2

Tips

For fixed installations, ensure the cable is not exposed to temperatures below -5°C. When used flexibly, avoid bending tighter than 6 times the cable's outer diameter to prevent damage.
