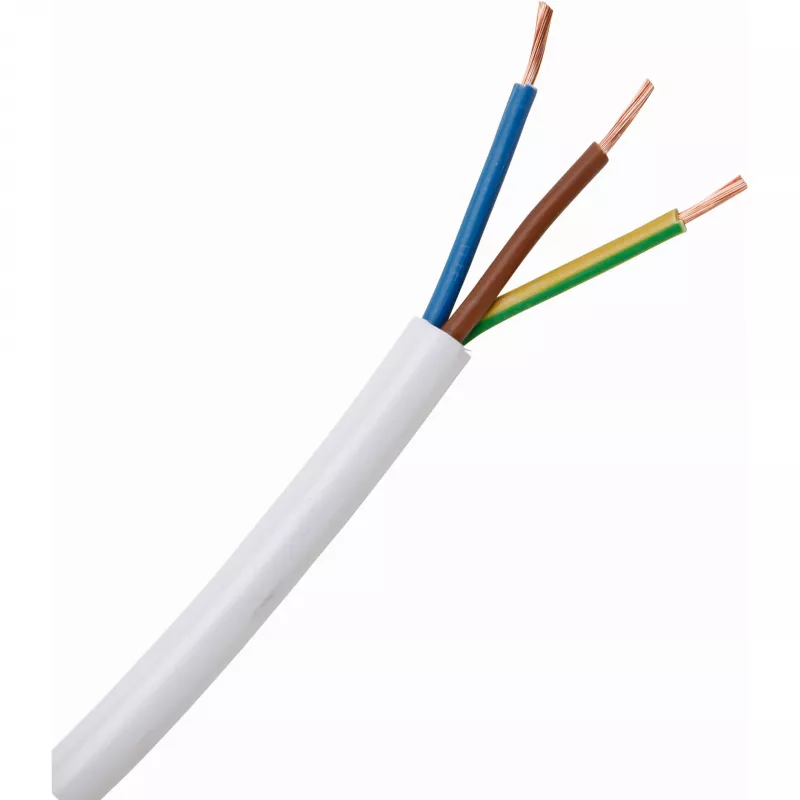

HEINRICH KOPP H05VV5-F 3G 1mm² cable flexible de PVC blanco resistente al aceite 10m 151710849

When equipment needs a dependable power connection in damp, oily, or mechanically demanding environments, standard cables often fail prematurely. This HEINRICH KOPP H05VV5-F cable solves that with an oil-resistant PVC jacket and fine-stranded copper conductors, ensuring reliable performance in workshops, kitchens, and industrial settings.

Who is it for

Electricians, maintenance technicians, and DIY users who require a flexible, oil-resistant cable for connecting appliances, power tools, or machinery in dry, damp, or wet rooms.

Main features

• 3-core configuration with green/yellow earth conductor (3G)
• 1 mm² cross-section supports up to 10 A current
• Oil-resistant special PVC jacket for harsh environments
• Fine-stranded copper conductors for excellent flexibility
• Flame retardant according to IEC 60332-1-2
• 10 m length for convenient installation

Specifications

• Cable type: H05VV5-F
• Number of cores: 3
• Conductor cross-section: 1 mm²
• Rated voltage: 300/500 V
• Conductor material: Bare copper, fine-stranded Class 5
• Insulation: PVC
• Sheath: Special PVC, oil-resistant
• Colour: White
• Outer diameter: 7.0 mm
• Operating temperature (fixed): -30°C to +70°C
• Operating temperature (flexible): -5°C to +70°C
• Length: 10 m

Tips

For fixed installations in oily environments, secure the cable every 30 cm to prevent strain. Avoid bending below the minimum radius of 4 times the outer diameter during installation.
