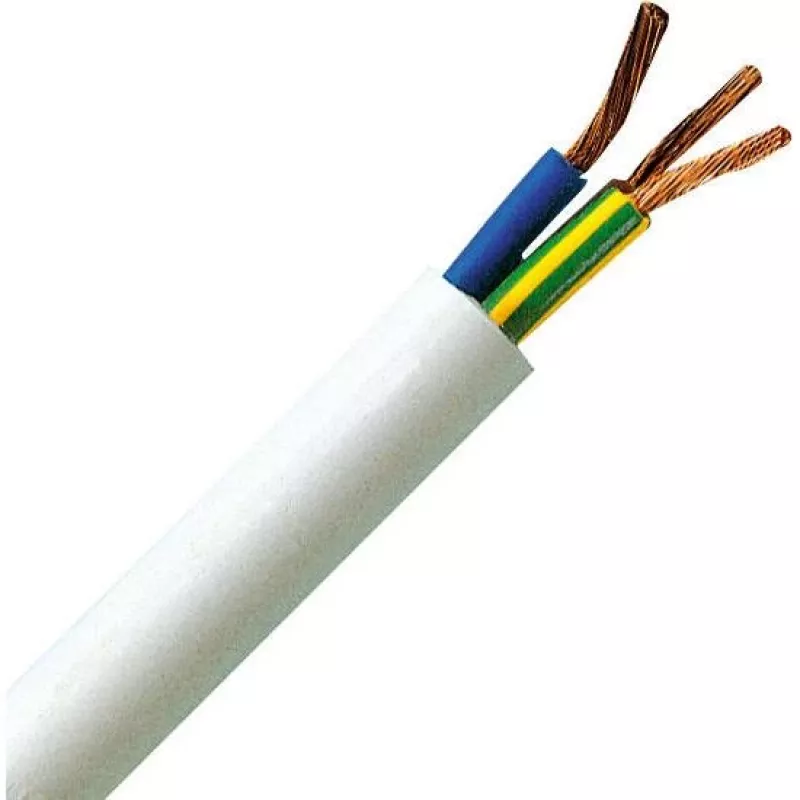

HEINRICH KOPP H05VV5-F 3G1,5 mm² cable de alimentación de PVC flexible resistente al aceite blanco 25m 151825002

This H05VV5-F cable stands out with its oil-resistant PVC sheath, making it suitable for demanding environments where standard PVC cables degrade. The white jacket provides clear identification in installations.

Highlights

• 3-core flexible power cable with 1.5 mm² fine-stranded copper conductors
• Oil-resistant special PVC sheath for enhanced durability
• Rated for 300/500 V, suitable for dry, damp, and wet conditions
• Flame retardant according to EN 60332-1-2
• 25 m length on reel for convenient installation

In daily use

The H05VV5-F is a flexible power cable designed for medium mechanical stress in household and commercial applications. Its fine-stranded copper conductors (Class 5) allow easy routing, while the oil-resistant sheath extends service life in workshops, kitchens, and industrial settings. The green/yellow earth conductor ensures safe grounding.

Full specifications

• Cable type: H05VV5-F
• Number of cores: 3
• Conductor cross-section: 1.5 mm²
• Conductor material: Fine-stranded copper (Class 5)
• Insulation material: PVC
• Sheath material: Special PVC (oil-resistant)
• Rated voltage: 300/500 V
• Temperature range: -5°C to +70°C (fixed), -5°C to +60°C (flexible)
• Oil resistance: Yes
• Flame retardant: Yes (EN 60332-1-2)
• Harmonized standard: EN 50525-2-51
• Application: Dry, damp, and wet conditions
• Length: 25 m
• Colour: White

Final note

A reliable oil-resistant flexible cable for installations where standard PVC may fail, delivered in a convenient 25 m length.
