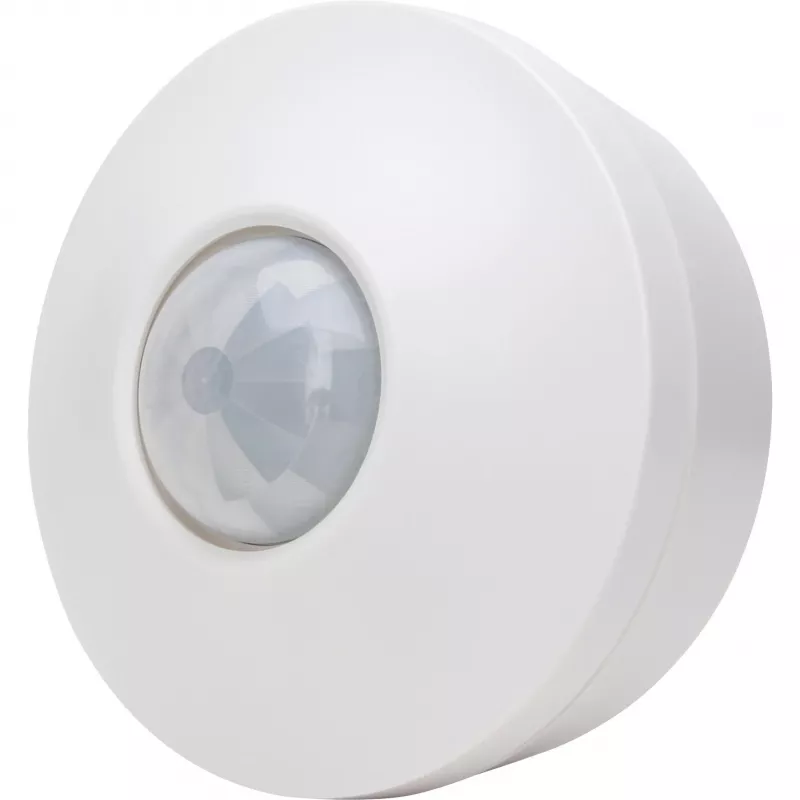

HEINRICH KOPP INFRAcontrol Detector de presencia 360° montaje en techo, Blanco, 827803002

The HEINRICH KOPP INFRAcontrol Presence Detector (model 827803002) is a high-quality passive infrared (PIR) sensor designed for automatic lighting control in commercial and residential spaces. With a 360° detection angle and ceiling surface-mounted installation, it reliably detects presence and motion, optimizing energy efficiency and comfort.

Advantages

Energy-saving automatic lighting control; 360° full-room coverage; adjustable time and twilight settings for flexible operation; robust UV-stabilized polycarbonate housing for long-lasting use.

Suitable for

• Office rooms and meeting areas
• Corridors and stairwells
• Open-plan workspaces
• Storage rooms and utility areas

Key specifications

• Detection type: Passive Infrared (PIR) Presence
• Detection angle: 360°
• Mounting: Ceiling surface-mounted
• Recommended mounting height: 2.5 - 3.5 m
• Detection range (presence): up to 8 m diameter (at 2.5 m height)
• Detection range (motion): up to 16 m diameter (at 2.5 m height)
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (ohmic load): 2000 W
• Max. switching power (inductive/LED load): 1000 W
• Time setting range: 10 seconds - 30 minutes (adjustable)
• Twilight setting range: 5 - 2000 Lux (adjustable)
• Protection class: IP20
• Colour: White
• Material: UV-stabilized polycarbonate
• Operating temperature: -20°C to +40°C

Recommendations

For optimal performance, mount at the recommended height and avoid obstructions in the detection field. Suitable for indoor use only.
