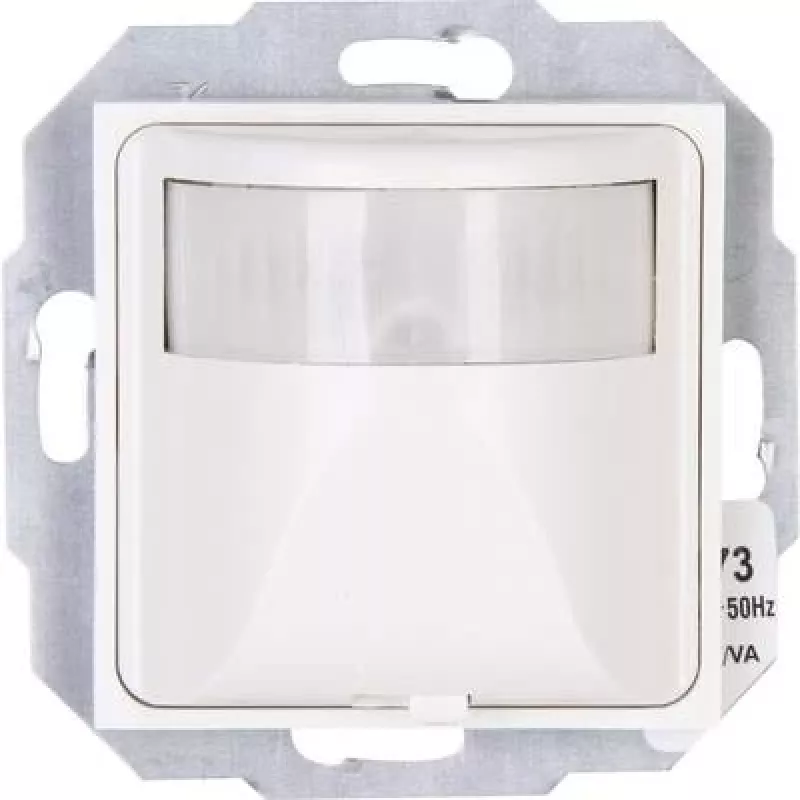

HEINRICH KOPP INFRAcontrol T detector de movimiento PIR de empotrar 180° IP20, blanco polar 805829006

The INFRAcontrol T 180° stands apart with its wide 180° detection angle and flush-mounted design, making it a discreet yet powerful presence detector for indoor spaces. Its PIR sensor responds to thermal movement, while the adjustable twilight threshold and time delay let you fine-tune automation to the room’s actual use.

Highlights

• 180° detection angle covers broad areas from a single mounting point
• Flush-mounted (Unterputz) installation for a clean, integrated look
• Adjustable twilight setting from 3 to 2000 lux
• Time delay adjustable from approximately 10 seconds to 15 minutes
• Switching capacity up to 2000 W for incandescent loads

In daily use

Install the detector at 0.8 to 1.2 m for fine movement detection or at 2.5 m for standard coverage up to 12 m. It switches lighting loads directly via its relay output, handling incandescent, halogen, and LED lamps. The 3-wire connection (L, N, L') fits standard flush-mounted boxes, and the polar white thermoplastic housing blends with most interiors.

Full specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 180°
• Mounting type: Flush-mounted
• International Protection (IP) code: IP20
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity: 2000 W incandescent, 1000 W halogen HV, 200 W LED
• Time setting range: approx. 10 s – 15 min
• Twilight setting range: 3 – 2000 lux
• Detection range: up to 12 m at 2.5 m installation height
• Recommended installation height: 0.8 – 1.2 m (small movements), 2.5 m (standard)
• Connection type: 3-wire (L, N, L')
• Housing material: Thermoplastic (PC)
• Product colour: Polar White
• Operating temperature: -20 °C to +40 °C

Final note

The INFRAcontrol T 180° delivers reliable, adjustable motion-activated switching in a compact flush-mounted form, ideal for hallways, stairwells, and utility rooms where discreet automation matters.
