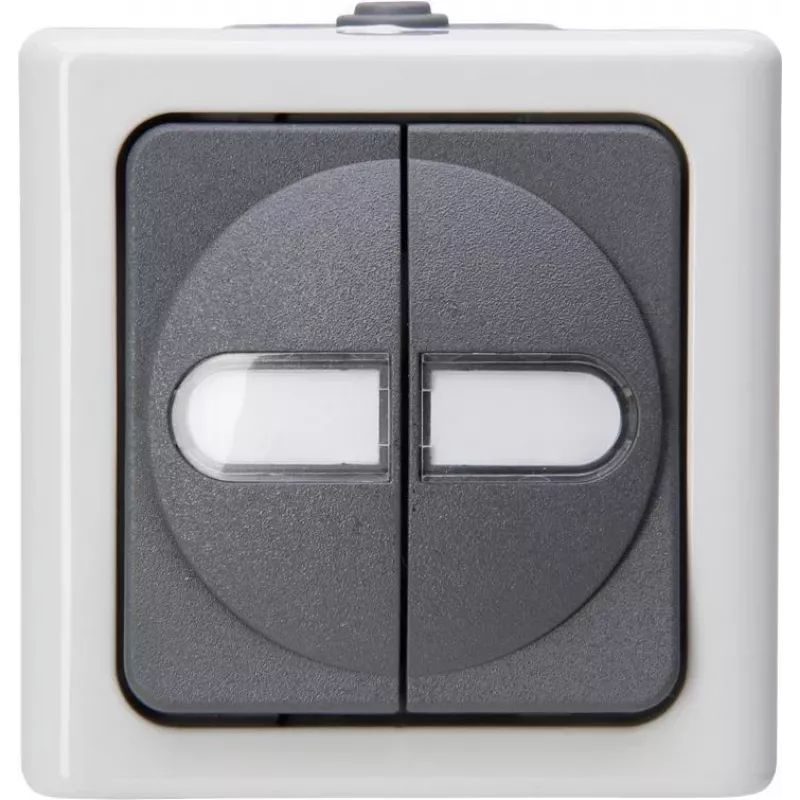

HEINRICH KOPP interruptor doble de superficie para zonas húmedas azul eléctrico gris 10A 250V 560556003

Series switch for surface-mounted installation in damp and wet rooms, rated 10 A / 250 V AC, with two independent rockers in grey thermoplastic.

Advantages

Two separate switching circuits in one compact housing. Screw terminals accept conductors up to 2.5 mm². Multiple knock-out cable entries on top, bottom and sides simplify wiring. Halogen-free material.

Suitable for

• Damp rooms and wet rooms
• Protected outdoor areas
• Surface-mounted installations

Key specifications

• Switch type: series switch (2-gang)
• Mounting type: surface-mounted
• Rated current: 10 A
• Rated voltage: 250 V AC
• Colour: grey
• Material: thermoplastic
• Number of rockers: 2
• Connection type: screw terminals
• Max. terminal capacity: 2.5 mm²
• Operating temperature range: -25 °C to +40 °C

Recommendations

For reliable switching of two circuits in demanding environments, choose this surface-mounted series switch from the BLUE ELECTRIC wet-room programme.
