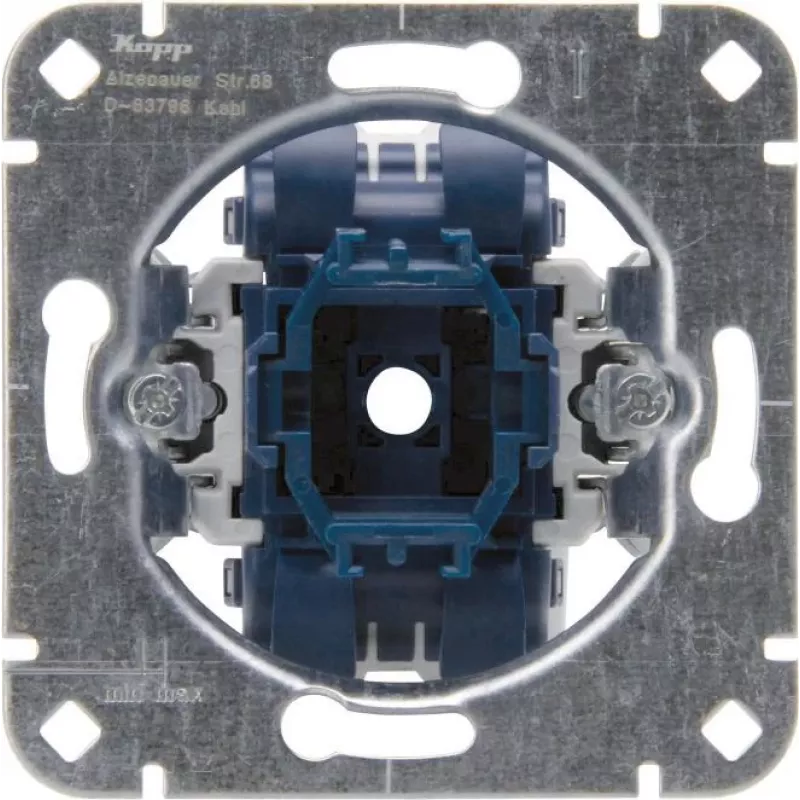

Kopp mecanismo de interruptor universal, unipolar, 10 A, 250 V, empotrar, para tapas basculantes 507600000

Electricians and installers use this Kopp universal switch insert as a reliable core for flush-mounted switch systems in residential and commercial buildings. It functions as an ON/OFF switch, changeover switch, or intermediate switch, depending on wiring, and accepts compatible rocker or toggle covers from Kopp ranges like Paris, Milano, and Vision.

Key specifications

• Switch function: universal (ON/OFF and changeover)
• Number of poles: 1
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: screw terminals
• Terminal capacity: up to 2.5 mm²
• Material: thermoplastic
• Halogen-free: yes
• Installation depth: approx. 32 mm
• Operating temperature: -5°C to +40°C
• Design: standard insert for modular switch systems

Why choose it

The insert offers flexibility with three possible switching functions in one unit. Its screw terminals accommodate conductors up to 2.5 mm², ensuring secure connections. The halogen-free thermoplastic housing meets modern building requirements.

Ideal use cases

• Replacing worn switch mechanisms in existing flush-mounted boxes
• New installations where cover plates are selected separately
• Projects requiring changeover or intermediate switching

Good to know

The mechanism is designed for flush mounting and pairs with Kopp cover frames. It is VDE certified and rated IP20 for indoor use only.
