Heinrich Kopp mecanismo interruptor 10A 250V IP20 basculante empotrar bornes de tornillo

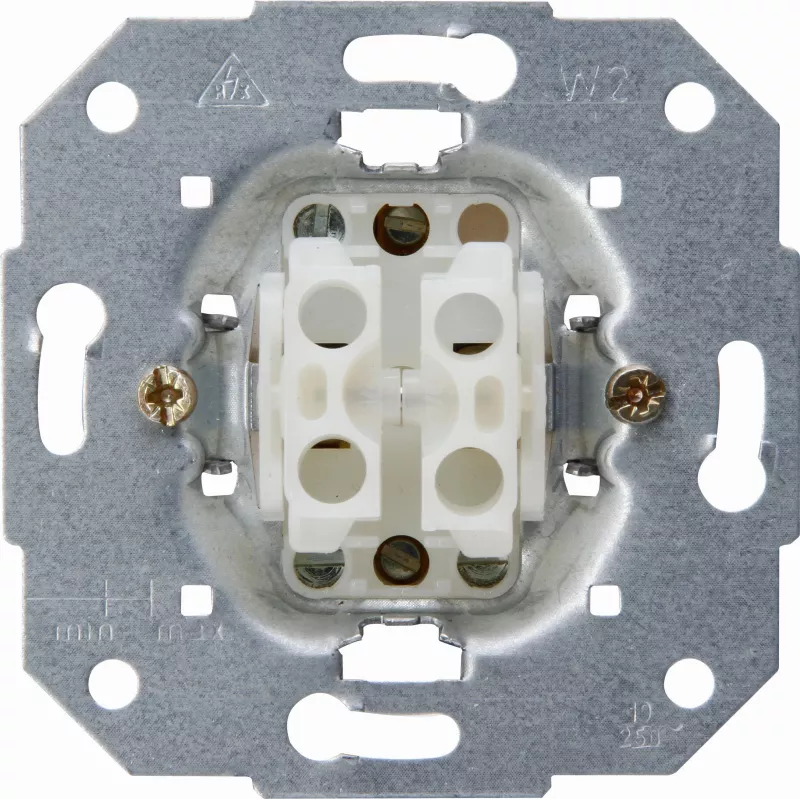

The Heinrich Kopp 503900005 is a high-quality switch insert designed for reliable control of indoor lighting and power circuits. This single-pole two-way (changeover) switch features a rocker actuation and is suitable for flush-mounted installation. With a rated current of 10 A and rated voltage of 250 V AC, it offers robust performance for standard electrical applications. The IP20 protection class ensures safe operation in dry indoor environments. The switch is equipped with screw terminals that accept up to 2.5 mm² rigid conductors, providing secure and easy wiring. Manufactured from durable thermoplastic, this switch insert is compatible with standard flush-mounted switch ranges such as Kopp Paris, Milano, and Vision. It is VDE certified, guaranteeing compliance with safety standards.

Advantages

This switch insert offers reliable switching performance with a rated current of 10 A and voltage of 250 V AC. The rocker actuation provides smooth operation, while the screw terminals ensure secure connections. The thermoplastic housing is durable and impact-resistant. VDE certification assures high safety and quality standards.

Suitable for

• Indoor lighting control in residential and commercial buildings
• Power circuit switching for standard electrical loads
• Integration into flush-mounted switch ranges like Kopp Paris, Milano, Vision

Key specifications

• Product Type: Switch Insert
• Switch Function: Single-Pole Two-Way (Changeover)
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Protection Class: IP20
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Number of Poles: 1-pole
• Actuation Type: Rocker
• Material: Thermoplastic
• Terminal Capacity: Up to 2.5 mm² rigid conductors
• Operating Temperature Range: -5°C to +40°C
• Certification: VDE

Recommendations

For optimal performance, use this switch insert with compatible Kopp switch ranges. Ensure proper installation by a qualified electrician. Suitable for indoor use only.
