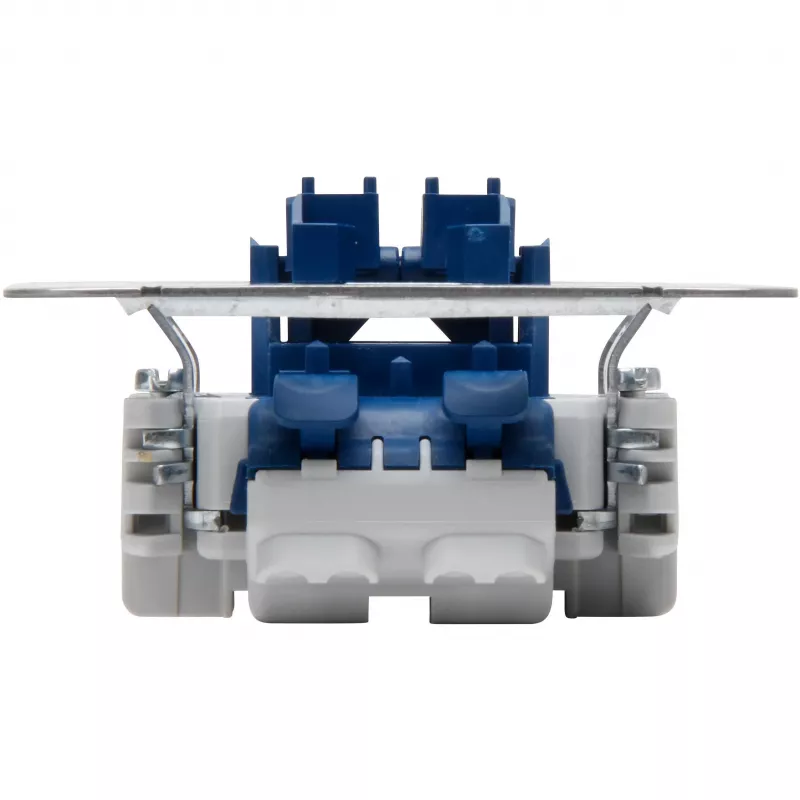

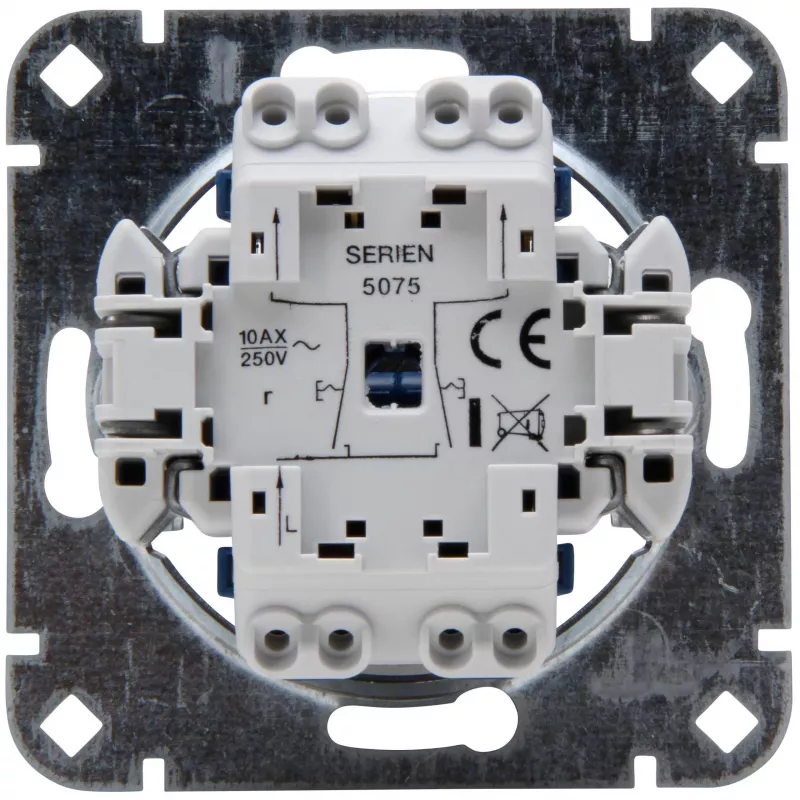

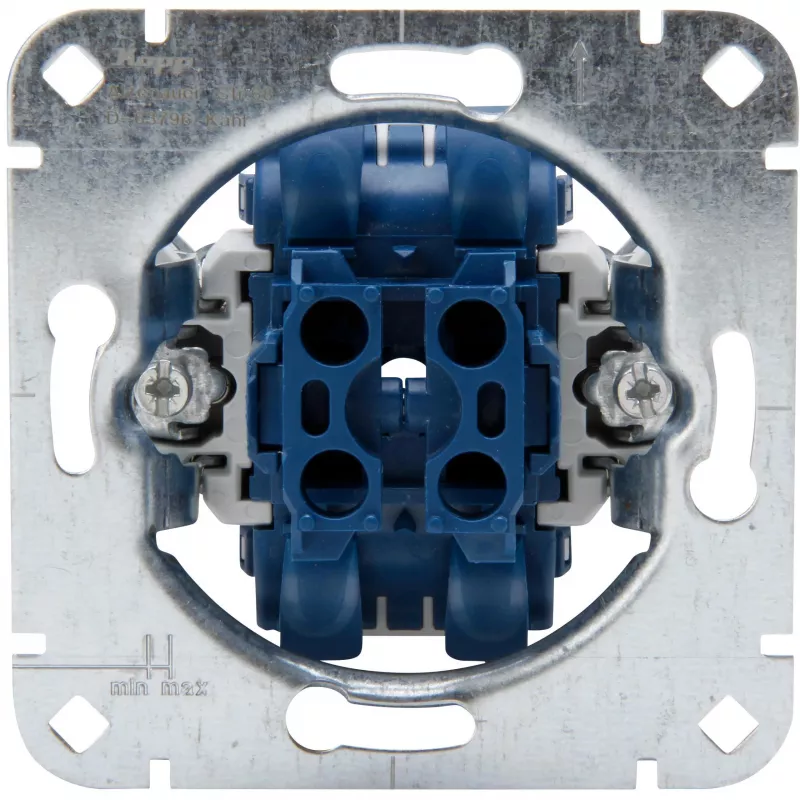

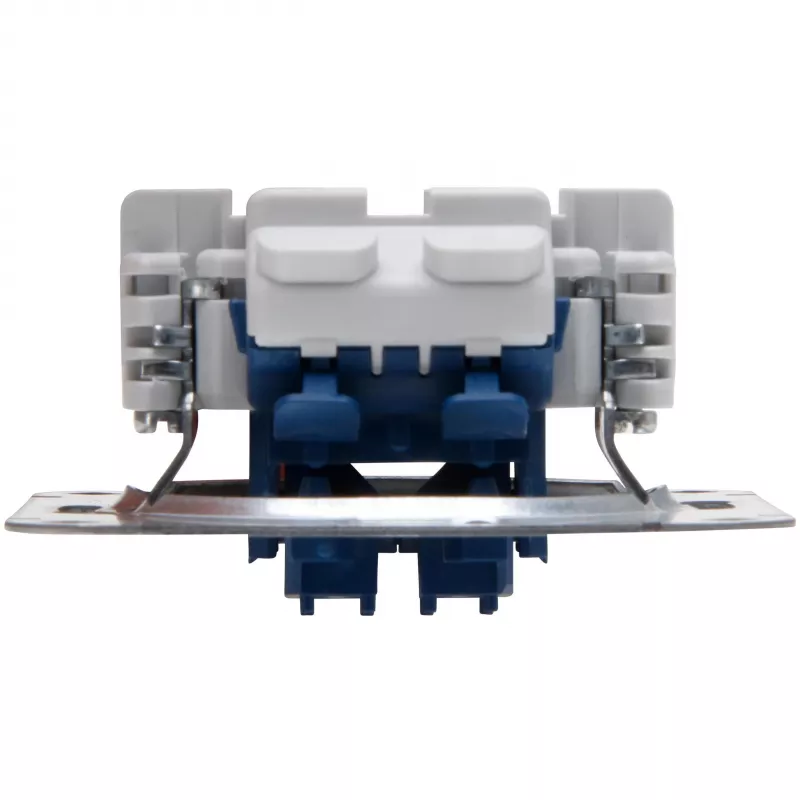

HEINRICH KOPP mecanismo interruptor doble, empotrar, 2 elementos, 250 V, 10 A, bornes de tornillo, termoplástico, IP20 507500007

Electricians and installers use this series switch insert as the functional core of a flush-mounted two-circuit switch. It fits standard Kopp switch ranges and accepts rocker covers for a complete installation.

Key specifications

• Product type: Series switch insert
• Mounting type: Flush-mounted
• Switching function: 2-gang (controls two independent circuits)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: Neutral
• Protection class: IP20
• Halogen-free: Yes
• Number of modules: 1
• Installation depth: 25–30 mm
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Operating method: Rocker
• Certification: VDE
• Backlight option: No

Why choose it

This insert provides reliable switching for two separate circuits in a single flush-mounted box. Its screw terminals ensure secure connections, and the halogen-free thermoplastic housing meets modern installation requirements.

Ideal use cases

• Controlling two lighting circuits from one location
• Replacing worn switch inserts in existing Kopp installations
• New residential or commercial wiring projects

Good to know

The insert is compatible with Kopp standard switch ranges such as Paris, Vision, and Alaska. It does not include a rocker cover or frame; those are ordered separately to match the desired design.
