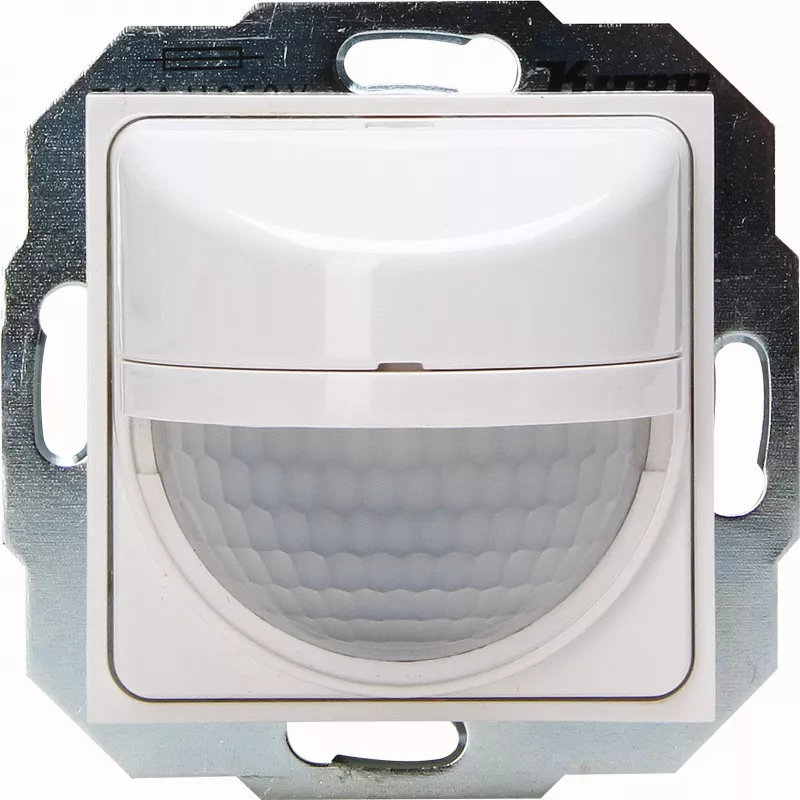

HEINRICH KOPP Sensor infrarrojo 840629058 - Cableado, alcance 9m, detección 180°, montaje en pared, Blanco, 230V AC, IP44

The HEINRICH KOPP Infrared Sensor 840629058 is a high-quality passive infrared (PIR) motion detector designed for reliable indoor and outdoor lighting control. With a detection range of 9 meters and a 180° detection angle, it ensures comprehensive coverage for residential and commercial applications. The sensor is wall-mounted and wired for a stable connection, operating at 230V AC with a standby power consumption of only 1W. Its IP44 protection class makes it suitable for damp environments, while the white plastic housing blends seamlessly with any decor.

Advantages

Energy-efficient standby power consumption of just 1W reduces electricity costs. The adjustable time setting (10 seconds to 15 minutes) and light sensitivity (3-2000 Lux) provide flexible control. With a maximum switching capacity of 1000W for incandescent lamps and 300W for LED/fluorescent lamps, it handles various lighting loads. The 180° detection angle and 9m range minimize blind spots, enhancing security and convenience.

Suitable for

• Indoor corridors, staircases, and garages
• Outdoor entrances, patios, and garden areas (IP44 rated)
• Commercial offices, storage rooms, and warehouses
• Automatic lighting control for energy savings

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Angle: 180°
• Detection Range: 9 m
• Mounting Type: Wall
• Connectivity Technology: Wired
• Input Voltage: 230 V AC, 50 Hz
• Max. Switching Capacity (Incandescent): 1000 W
• Max. Switching Capacity (LED/Fluorescent): 300 W
• Time Setting Range: 10 seconds - 15 minutes
• Light Sensitivity: 3 - 2000 Lux
• Protection Class: IP44
• Product Color: White
• Standby Power Consumption: 1 W
• Installation Height: 0.8 - 1.2 m
• Material: Plastic
• Width: 50 mm

Recommendations

For optimal performance, install the sensor at a height of 0.8-1.2 meters and avoid direct sunlight or heat sources. Pair with compatible LED or incandescent loads up to the specified maximum switching capacity. Suitable for use in damp locations such as covered outdoor areas.
