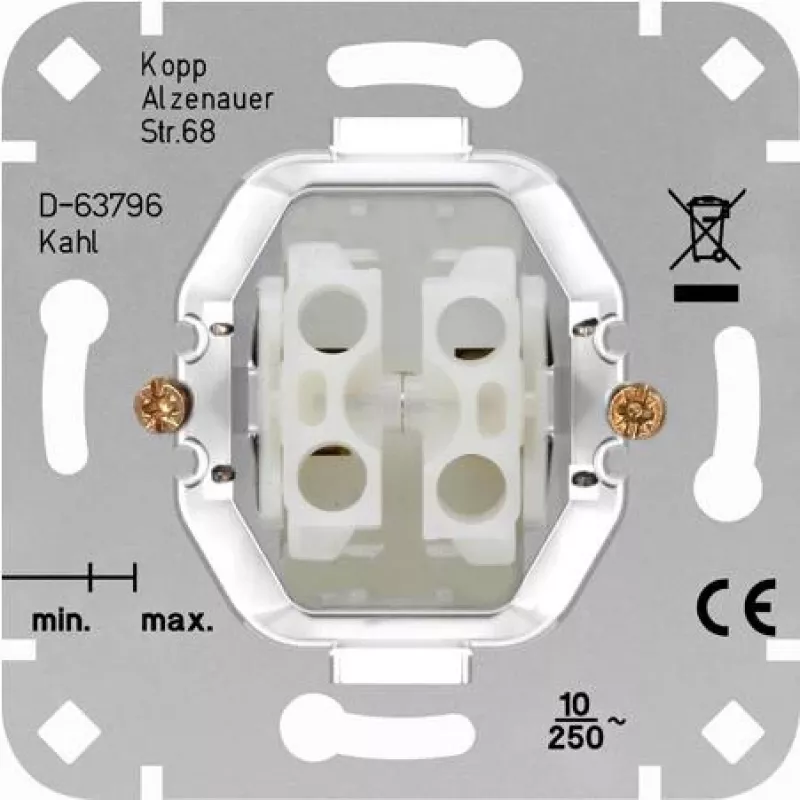

HEINRICH KOPP Serie Tastereinsatz, empotrado, 250V, 10AX, IP20, sin tapa 504000009

For flush-mounted installations where a series push-button function is required, this insert provides the switching mechanism without the decorative cover, allowing you to match it with your chosen KOPP switch range.

Who is it for

Electricians and installers who need a reliable series push-button insert for building into KOPP switch systems. It suits those who prefer to select the cover plate separately to match the room's design.

Main features

• Series push-button function with two buttons
• Flush-mounted installation
• Rated 250 V AC, 10 AX
• IP20 protection
• Screw terminals for secure wiring
• Halogen-free thermoplastic material
• Compatible with KOPP switch ranges such as Paris, Milano, and Athen

Specifications

• Product type: Series push-button insert
• Installation type: Flush-mounted
• Operating voltage: 250 V AC
• Rated current: 10 AX
• Protection class: IP20
• Number of buttons: 2
• Switching function: Momentary (push-button)
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• Cover/frame included: No
• Mounting type: Claw and screw mounting
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Operating temperature: -5 to +40 °C
• Relative humidity: 5 to 95 % (non-condensing)
• Colour of insert base: White
• Number of modules: 1-module

Tips

Pair this insert with a KOPP cover plate from the Paris, Milano, or Athen range for a complete installation. Ensure the wiring is done by a qualified electrician and that the circuit is de-energized before installation.
