HellermannTyton 323-50750 tubo termorretráctil con adhesivo, negro, 75 mm (suministrado), 22 mm (retraído), relación de retracción 4:1, 1 m de longitud

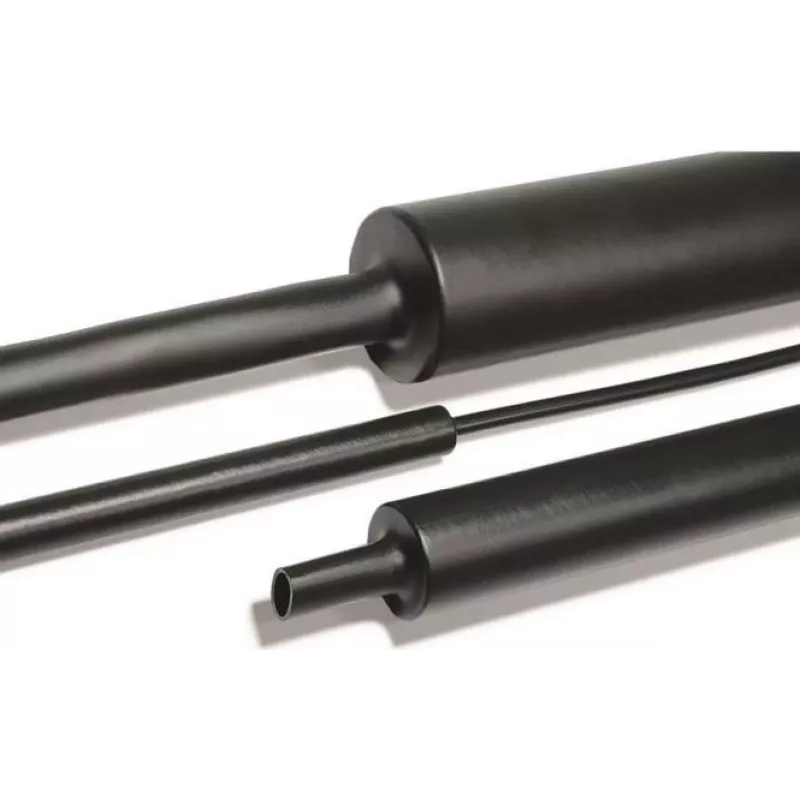

HellermannTyton 323-50750 is a high-quality heat shrink tubing with adhesive lining, designed for reliable electrical insulation, environmental sealing, and strain relief. With a 4:1 shrink ratio, it shrinks from 75 mm to 22 mm inner diameter, making it ideal for protecting cables and connectors in demanding applications. The cross-linked polyolefin material provides excellent UV resistance and operates in temperatures from -55°C to +125°C. This 1-meter length tubing is RoHS compliant and ensures moisture and dust proof sealing.

Advantages

Adhesive lined for superior sealing against moisture and dust. High shrink ratio (4:1) accommodates a wide range of cable sizes. UV resistant for outdoor use. Wide operating temperature range. Easy installation with minimum shrink temperature of +110°C.

Suitable for

• Electrical insulation of wires and cables
• Environmental sealing of connectors and splices
• Strain relief for cable terminations
• Cable protection in automotive, marine, and industrial applications

Key specifications

• Product Type: Heat Shrink Tubing
• Adhesive Lined: Yes
• Colour: Black
• Supplied Inner Diameter: 75 mm
• Recovered Inner Diameter: 22 mm
• Shrink Ratio: 4:1
• Length: 1 m
• Material: Cross-linked Polyolefin
• Operating Temperature Range: -55°C to +125°C
• Minimum Shrink Temperature: +110°C
• UV Resistance: Yes
• Environmental Sealing: Moisture and Dust Proof
• Standards: RoHS Compliant

Recommendations

For best results, ensure the tubing is heated evenly until fully shrunk and adhesive flows. Suitable for use with heat guns or infrared heaters.
