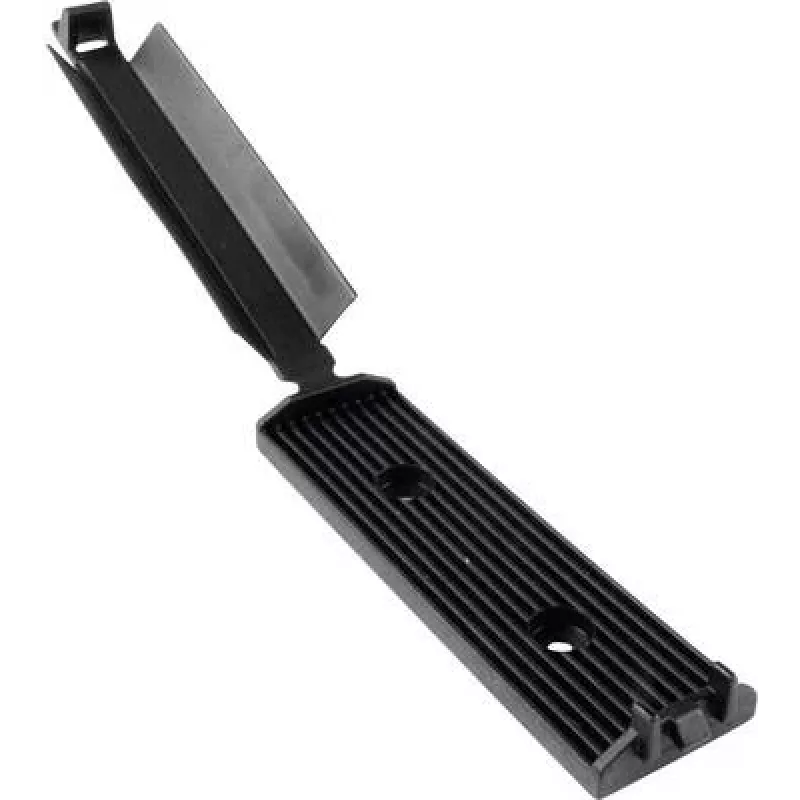

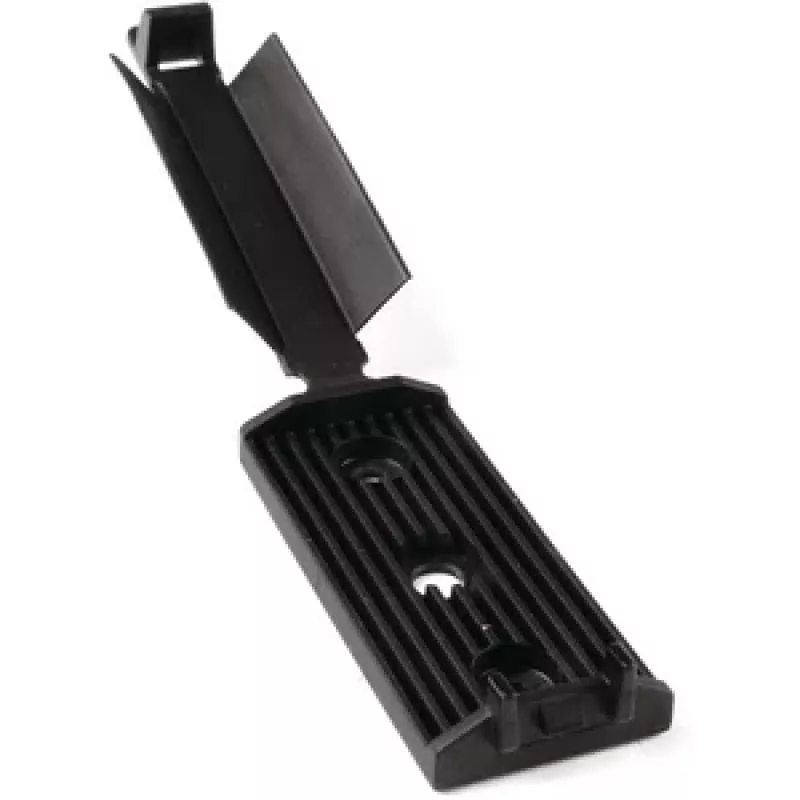

HellermannTyton FKH80 fijación atornillada para bridas, negra PA66, 25mm x 56,5mm, 100 uds. 151-16800

Securing cable ties to flat surfaces often requires a reliable anchor point that can withstand vibration and load. The HellermannTyton FKH80 cable tie mount provides a sturdy screw-down base for routing and fastening cables in industrial and commercial installations.

Who is it for

Panel builders, electrical installers, and maintenance technicians who need a durable, low-profile fixing point for cable ties in control cabinets, machinery, and cable management systems.

Main features

• Moulded from black polyamide 6.6 (PA66) for high mechanical strength and temperature resistance.
• Accepts cable ties up to 8.0 mm wide, allowing secure bundling of multiple cables.
• Single screw hole with 3.1 mm diameter for quick and firm attachment to panels or frames.
• Compact base dimensions: 25 mm wide and 56.5 mm long, suitable for tight spaces.
• Halogen-free material with UL94 V2 flammability rating for safer installations.
• Supplied in packs of 100 pieces for cost-effective bulk usage.

Specifications

• Product type: Cable tie mount
• Mounting method: Screw mounting
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Base length: 56.5 mm
• Base width: 25 mm
• Screw hole diameter: 3.1 mm
• Max. cable tie width: 8.0 mm
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen free: Yes
• RoHS compliant: Yes
• Pack quantity: 100 pieces

Tips

Use a pan-head screw with a diameter slightly smaller than 3.1 mm and a washer to distribute load. For outdoor applications, verify UV stability of the polyamide or consider a UV-resistant variant.
