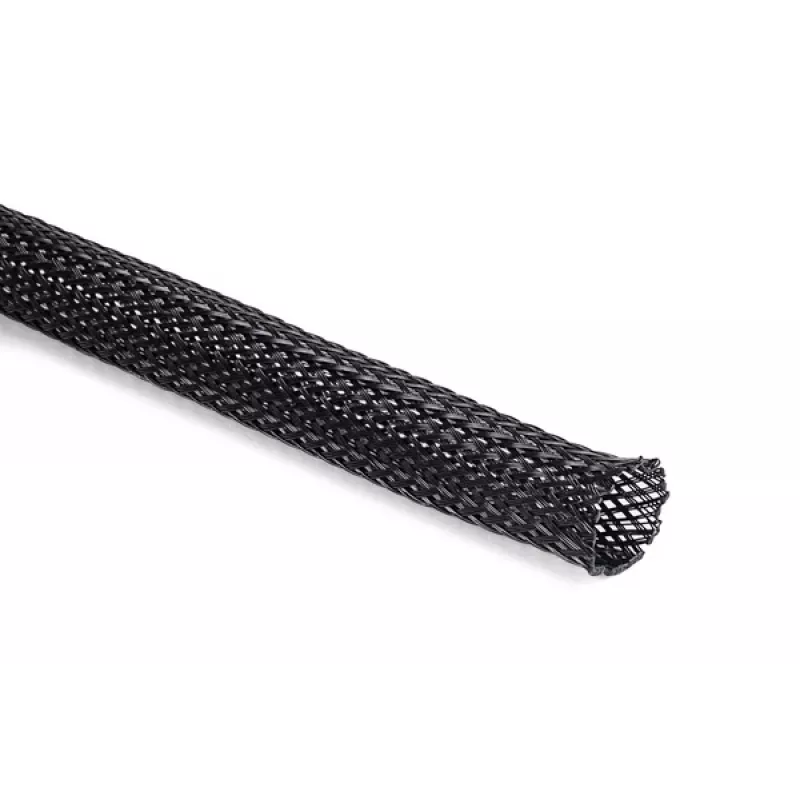

HellermannTyton Helagaine HEGWS funda trenzada, poliéster, negro, 30 mm, 10 m 170-80250

With an operating temperature range from -50 °C to 150 °C and a UL94 V0 flammability rating, this braided sleeving delivers reliable protection in demanding environments. The HellermannTyton Helagaine HEGWS sleeving is made from halogen-free polyester (PET) and offers excellent cut and abrasion resistance for durable cable management.

Overview

The HellermannTyton 170-80250 is a black braided sleeving designed for bundling and protecting cables and wires. It features a nominal diameter of 30 mm and accommodates bundle diameters from 25 mm to 35 mm. The sleeving is supplied in a 10-metre length and is compliant with RoHS and ELV directives.

What stands out

• Wide temperature tolerance from -50 °C to 150 °C
• Self-extinguishing UL94 V0 rated material
• Halogen-free polyester construction
• High abrasion and cut resistance
• Good UV and chemical resistance

Technical details

• Material: Polyester (PET)
• Colour: Black
• Nominal diameter: 30 mm
• Bundle diameter range: 25–35 mm
• Length: 10 m
• Expansion ratio: 1:1.4
• Operating temperature: -50 °C to 150 °C
• Flammability rating: UL94 V0
• Halogen-free: Yes
• Compliance: RoHS, ELV

Our verdict

A robust and versatile braided sleeving that excels in high-temperature and safety-critical applications, offering excellent mechanical protection and compliance with key directives.
