HellermannTyton Helagaine MAN funda trenzada para cables, poliéster, negra, 50m x 26mm 170-12000

With an operating temperature range of -50 °C to +150 °C, this braided cable sleeve handles extreme conditions while keeping cables organized and protected.

Overview

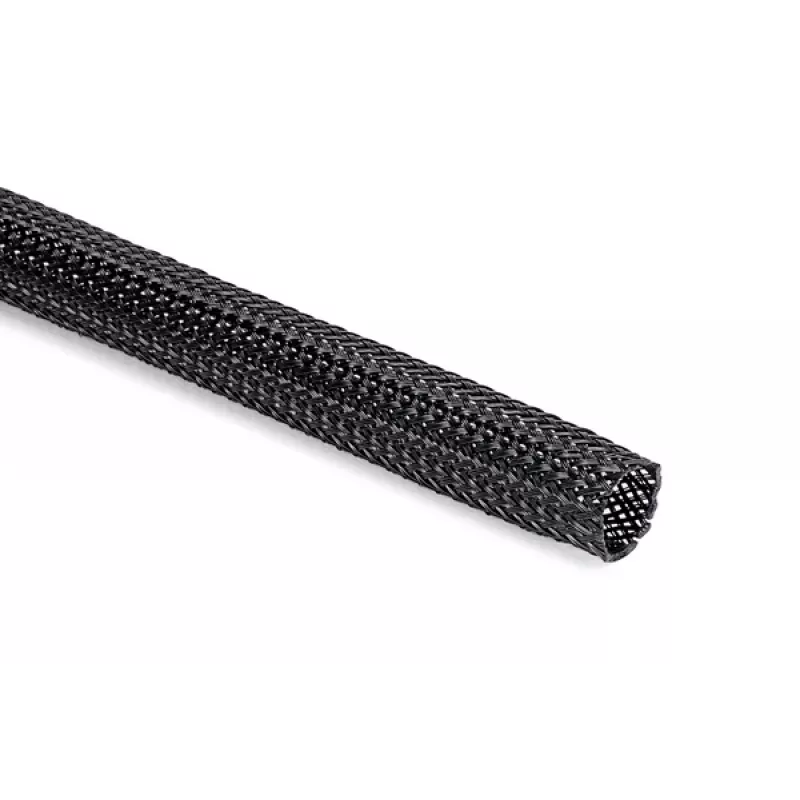

The HellermannTyton 170-12000 is a 50-meter roll of black braided cable sleeving from the Helagaine MAN series. Made from polyester (PET), it offers excellent abrasion resistance and good chemical and UV resistance. The sleeve has a nominal diameter of 26 mm and can accommodate bundle diameters from 20 mm to 30 mm. It is halogen-free and meets UL94 HB flammability rating.

What stands out

• Wide temperature range: -50 °C to +150 °C
• High expandability for easy installation over connectors
• Halogen-free and RoHS compliant
• Durable polyester construction with excellent abrasion resistance

Technical details

• Material: Polyester (PET)
• Colour: Black
• Length: 50 m
• Nominal diameter: 26 mm
• Bundle diameter range: 20 mm – 30 mm
• Flammability rating: UL94 HB
• Halogen-free: Yes
• Abrasion resistance: Excellent
• Chemical resistance: Good
• UV resistance: Good
• Series: Helagaine MAN
• Application: Cable bundling and protection

Our verdict

A reliable braided sleeve for demanding cable management tasks, offering high temperature tolerance and robust protection.
