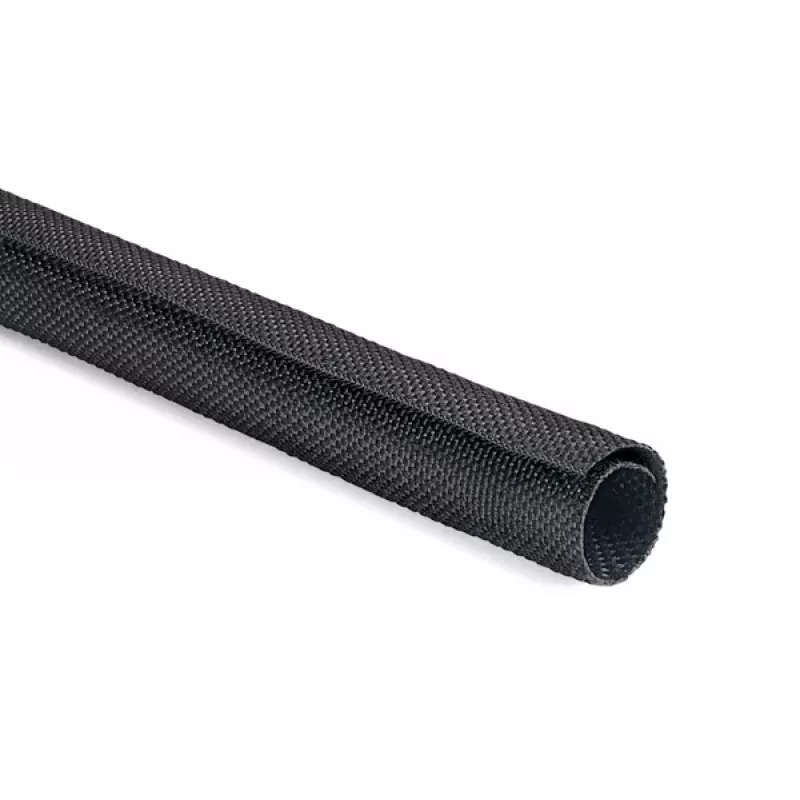

HellermannTyton Helagaine Twist-In funda trenzada para cables, 25-29 mm de diámetro de haz, 2 m, negra 170-01016

The Helagaine Twist-In braided sleeve from HellermannTyton offers a self-wrapping design that eliminates the need to disconnect cables during installation. Its lateral slit allows the sleeve to be wrapped around existing bundles, saving time and reducing downtime in maintenance and retrofitting tasks.

Highlights

• Self-wrapping construction for easy installation over assembled cable bundles
• Made from durable polyester (PET) monofilament for high abrasion resistance
• Accommodates bundle diameters from 25 mm to 29 mm
• Supplied in a 2-meter length, ready for immediate use
• Halogen-free and flame-retardant to UL94 V0

In daily use

This sleeve is ideal for organizing and protecting cable harnesses in industrial control panels, automotive wiring, and data centers. Its black colour blends neatly into most installations, while the open weave allows heat dissipation and easy inspection of the underlying cables. The sleeve can be reopened and reused, making it a practical choice for evolving installations.

Full specifications

• Product type: Braided cable sleeve
• Series: Helagaine Twist-In
• Technology: Self-wrapping
• Material: Polyester (PET) monofilament
• Colour: Black
• Minimum bundle diameter: 25 mm
• Maximum bundle diameter: 29 mm
• Nominal diameter: 29 mm
• Length: 2 m
• Operating temperature range: -50 °C to +125 °C
• Flammability rating: UL94 V0
• Halogen-free: Yes
• UV resistance: Moderate
• Abrasion resistance: Very high
• Chemical resistance: Good against most common chemicals
• Slit design: Yes (lateral slit)
• Reusability: Yes
• Application: Cable bundling, protection, and organization
• Standards/approvals: RoHS, REACH compliant

Final note

With its combination of easy installation, robust protection, and reusability, the Helagaine Twist-In sleeve is a reliable solution for demanding cable management tasks.
