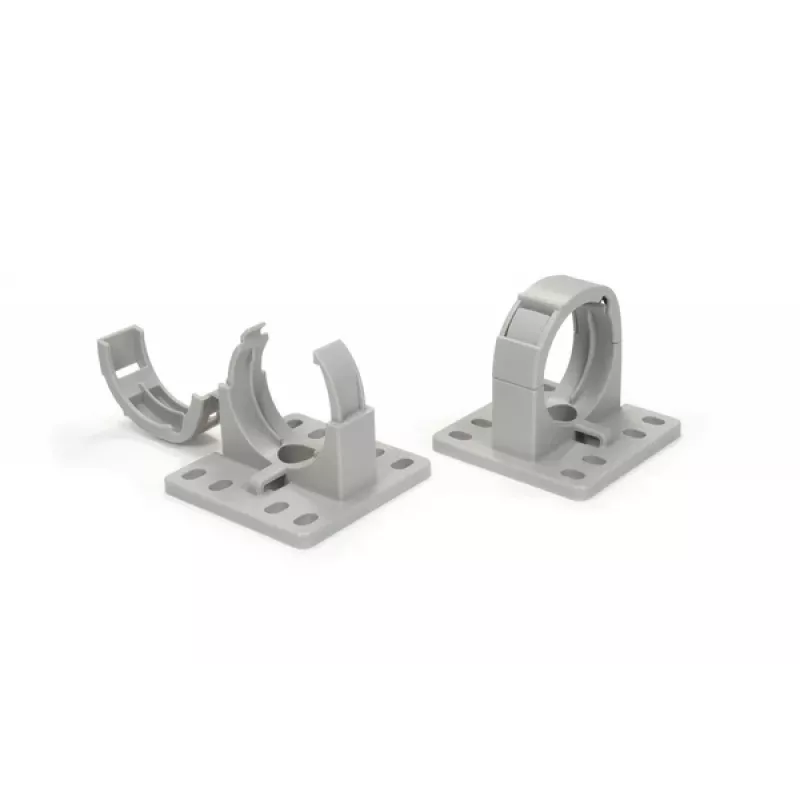

HellermannTyton IWS Soporte para tubo corrugado CTCC-IWS50-MB65-PA66/6HIRHS-GY 20

The HellermannTyton IWS Corrugated Conduit Holder CTCC-IWS50-MB65-PA66/6HIRHS-GY is a high-quality, screw-mountable conduit holder designed for secure cable routing and protection in demanding industrial environments. Part of the Integrated Wire System (IWS), this holder accommodates 50 mm corrugated conduit and is manufactured from heat-stabilized, halogen-free polyamide 6.6 with high impact resistance and limited UV resistance. It offers excellent chemical resistance and operates reliably across a wide temperature range from -40 °C to +105 °C. The grey colour ensures easy identification and integration into existing installations. Pack quantity: 20 pieces.

Advantages

Robust polyamide 6.6 construction with UL94 V2 flammability rating ensures long-lasting performance and safety. Screw mount design with 6.5 mm mounting hole diameter provides simple and secure installation. Halogen-free and RoHS compliant, supporting environmental and health standards. High impact resistance and heat stabilization make it suitable for harsh conditions. Compatible with HellermannTyton IWS system for streamlined cable management.

Suitable for

• Industrial cable routing and protection
• Automation and control cabinets
• Machine building and plant engineering
• Transportation and automotive applications
• Any environment requiring reliable conduit fixation

Key specifications

• Product Type: Corrugated Conduit Holder
• Conduit Diameter: 50 mm
• Material: Polyamide 6.6 (PA66)
• Colour: Grey
• Mounting Type: Screw Mount
• Mounting Hole Diameter: 6.5 mm
• Operating Temperature Range: -40 °C to +105 °C
• Flammability Rating: UL94 V2
• Halogen-Free: Yes
• UV Resistance: Limited (Standard PA66)
• Impact Resistance: High
• Heat Stabilized: Yes
• System Compatibility: HellermannTyton IWS
• Pack Quantity: 20 pieces
• Chemical Resistance: Good against many chemicals, oils, and greases
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with HellermannTyton IWS corrugated conduit and accessories. Ensure mounting surface is clean and suitable for screw fixation. Verify conduit diameter matches holder size (50 mm). Store in a cool, dry place away from direct sunlight to preserve material properties.
