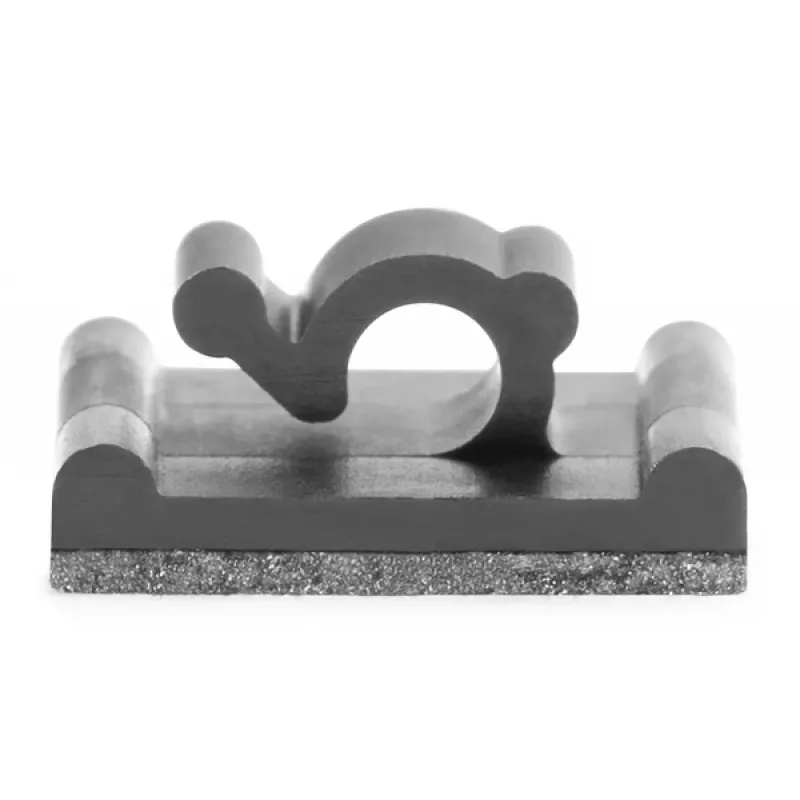

HellermannTyton MAGRA3 Pinza magnética para cables PA66 NdFeB negra 50 unidades 151-04466

Securing small cables and wires in place can be a challenge, especially on metal surfaces where traditional fasteners are impractical. The HellermannTyton MAGRA3 magnetic cable clip solves this by combining a strong neodymium magnet with a durable polyamide clip, allowing quick, releasable mounting on any ferromagnetic surface.

Who is it for

Ideal for electricians, panel builders, and maintenance technicians who need a fast, reusable solution for routing cables in control cabinets, machinery, or metal enclosures.

Main features

• Magnetic mounting with neodymium magnet for secure hold on steel surfaces
• Clip made of polyamide 6.6 (PA66) for durability and resistance
• Holds bundles up to 3 mm in diameter
• Releasable and reusable, allowing easy repositioning
• Halogen-free and RoHS compliant
• Pack of 50 pieces

Specifications

• Colour: Black
• Material clip: Polyamide 6.6 (PA66)
• Material magnet: Neodymium (NdFeB)
• Max bundle diameter: 3 mm
• Magnetic holding force: 5 N
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Length: 15.5 mm
• Width: 15.5 mm
• Height: 10.5 mm
• Magnet diameter: 5 mm
• Magnet thickness: 2 mm

Tips

Ensure the mounting surface is clean and ferromagnetic for optimal holding strength. These clips can be easily removed and reused without leaving residue.
