HellermannTyton S3SB15CBM8-PA6GF30-BK base de montaje atornillada para bridas, negra, M8, PA6GF30, 1 ud. 151-01010

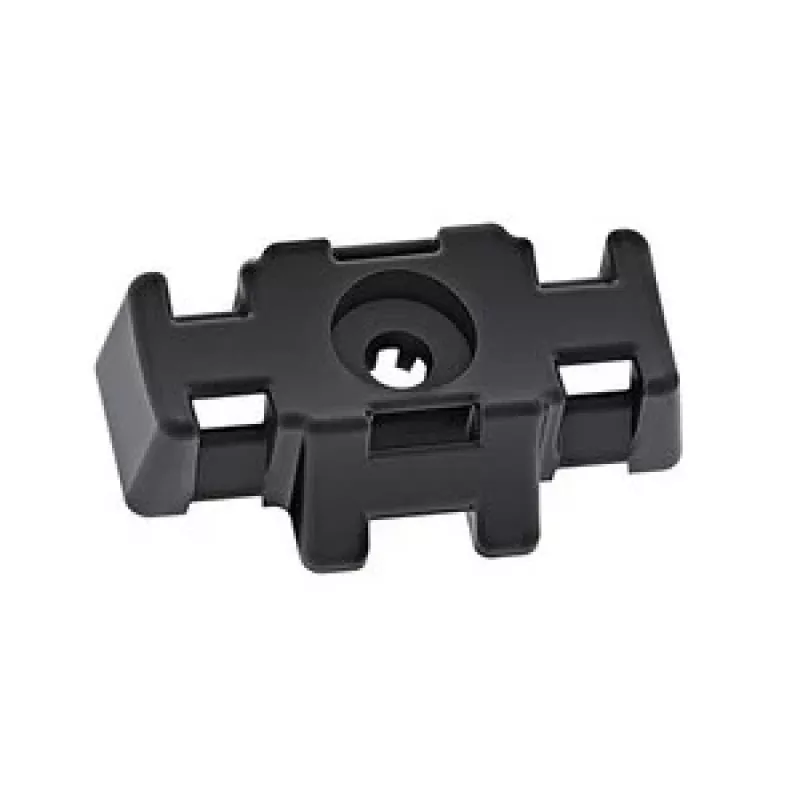

Secure cable ties to panels, frames, or enclosures with the HellermannTyton S3SB15CBM8-PA6GF30-BK screw mount base. This black base is made from glass-fibre reinforced polyamide (PA6GF30) and accepts a single M8 screw for firm attachment. It is suitable for cable ties up to 8 mm wide and measures 30 mm long, 15 mm wide, and 10 mm high. The base operates from -40 °C to +105 °C and meets UL94 V-2 flammability requirements.

Key specifications

• Material: Polyamide 6 with 30% glass fibre (PA6GF30)
• Colour: Black
• Mounting: Screw mount, M8 screw size
• Max. cable tie width: 8.0 mm
• Base dimensions (L x W x H): 30.0 x 15.0 x 10.0 mm
• Fixing hole diameter: 8.4 mm
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V-2
• Halogen-free: Yes
• Pack size: 1 piece

Why choose it

The glass-fibre reinforcement provides high mechanical strength and dimensional stability, making it suitable for demanding industrial environments. The black colour offers a neutral appearance, and the halogen-free material supports safer disposal in many applications.

Ideal use cases

• Securing cable ties in control cabinets and switchgear
• Routing cables along machine frames or panels
• Automotive and transportation wiring harnesses
• General industrial cable management

Good to know

The base is designed for use with standard cable ties up to 8 mm wide. It is not UV resistant, so it is best suited for indoor or protected outdoor installations.
