HellermannTyton T50ROSEC5B-PA66HS/PA66HIRHS-BK Brida con soporte de abeto, 200 x 4,6 mm, negro, 500 uds. 150-40581

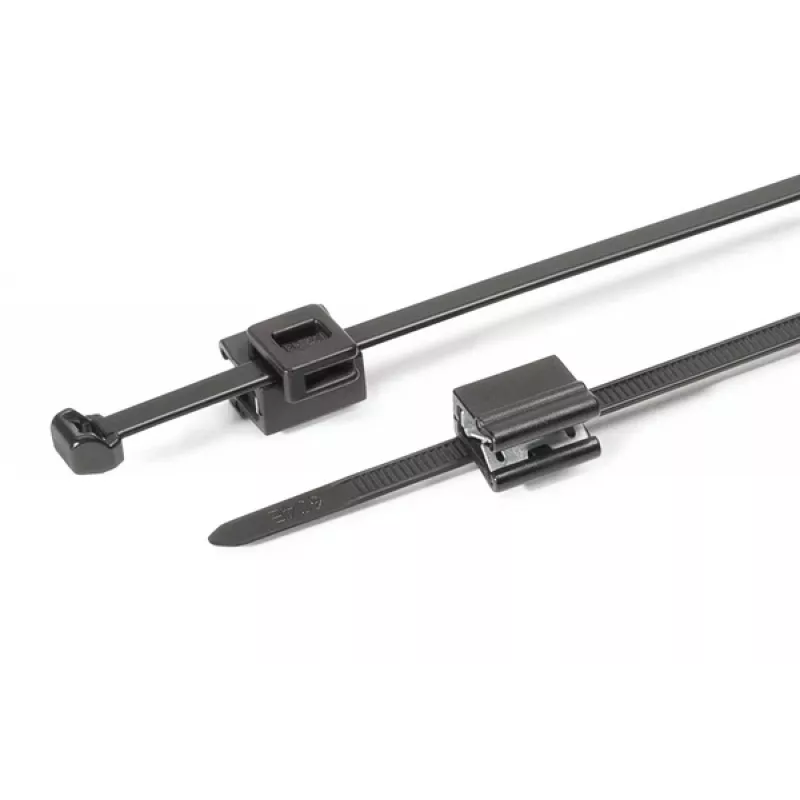

Securing cables to panels or chassis often requires separate fasteners and drilling, which adds time and complexity. The HellermannTyton T50ROSEC5B combines a cable tie and a fir tree mount in one piece, simplifying installation in pre-drilled holes.

Who is it for

This cable tie with mount is intended for electricians, panel builders, and maintenance technicians who need a reliable, one-piece fastening solution for bundling and fixing cables in automotive, industrial, and general wiring applications.

Main features

• Integrated fir tree anchor for secure push-in mounting
• Heat stabilised and high impact resistant polyamide 6.6
• Black colour with carbon black for limited UV resistance
• Supplied in packs of 500 pieces

Specifications

• Length: 200 mm
• Width: 4.6 mm
• Maximum bundle diameter: 45 mm
• Minimum tensile strength: 225 N
• Material: Polyamide 6.6 (PA66HS/PA66HIRHS)
• Operating temperature: -40 °C to +105 °C
• Short-term temperature: up to +140 °C
• Flammability rating: UL94 V2
• Halogen free: Yes
• Fir tree anchor diameter: 5.0 mm
• Fir tree anchor length: 10.0 mm

Tips

Ensure the mounting hole diameter matches the fir tree anchor (5.0 mm) for a secure fit. For high-vibration environments, verify that the material properties meet your application requirements.
