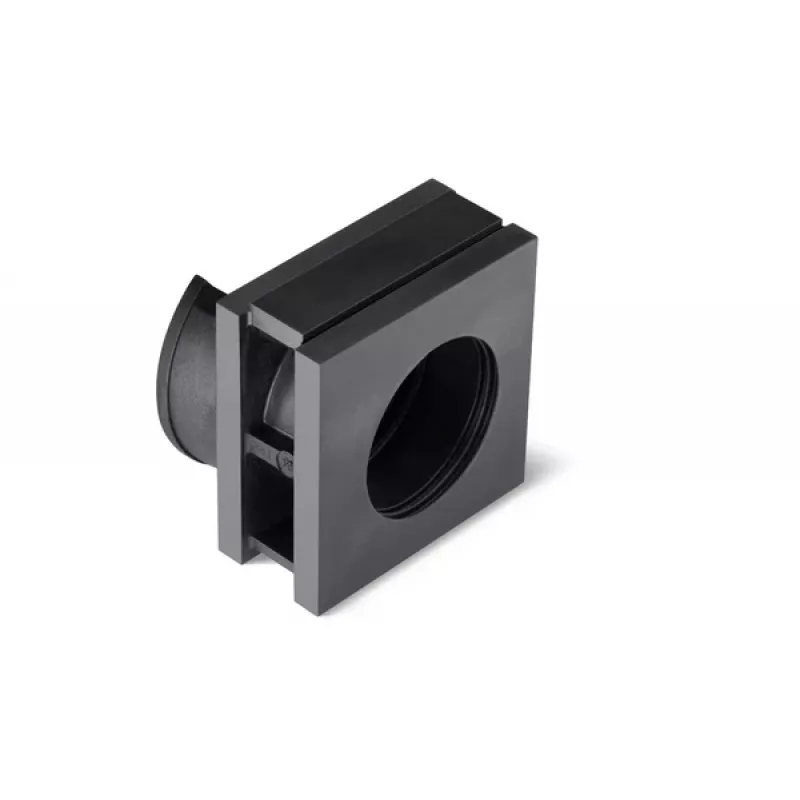

HellermannTyton VP-L 28-29 pasacables individual libre de halógenos TPE negro 1 ud. (440-00036)

Single entry grommet for cable diameters 28–29 mm, providing reliable cable protection and strain relief in panel cutouts. Made from halogen-free thermoplastic elastomer (TPE) in black, it offers flexibility and durability across a wide temperature range.

Advantages

The halogen-free TPE material ensures safety in fire-sensitive environments, while the grommet's design allows quick installation without tools. It accommodates panel thicknesses from 1.5 to 2.5 mm and fits a 32 mm mounting hole.

Suitable for

• Cable routing through sheet metal or plastic panels
• Applications requiring strain relief and abrasion protection
• Environments where halogen-free materials are mandated

Key specifications

• For cable diameter: 28–29 mm
• Mounting hole diameter: 32 mm
• Panel thickness: 1.5–2.5 mm
• Material: TPE, halogen-free
• Colour: black
• Operating temperature: -40 °C to +120 °C
• Flammability rating: UL94 HB
• Outer diameter: 37 mm, height: 10 mm

Recommendations

Verify the panel cutout and cable diameter before ordering. For high-vibration applications, consider additional strain relief measures.
