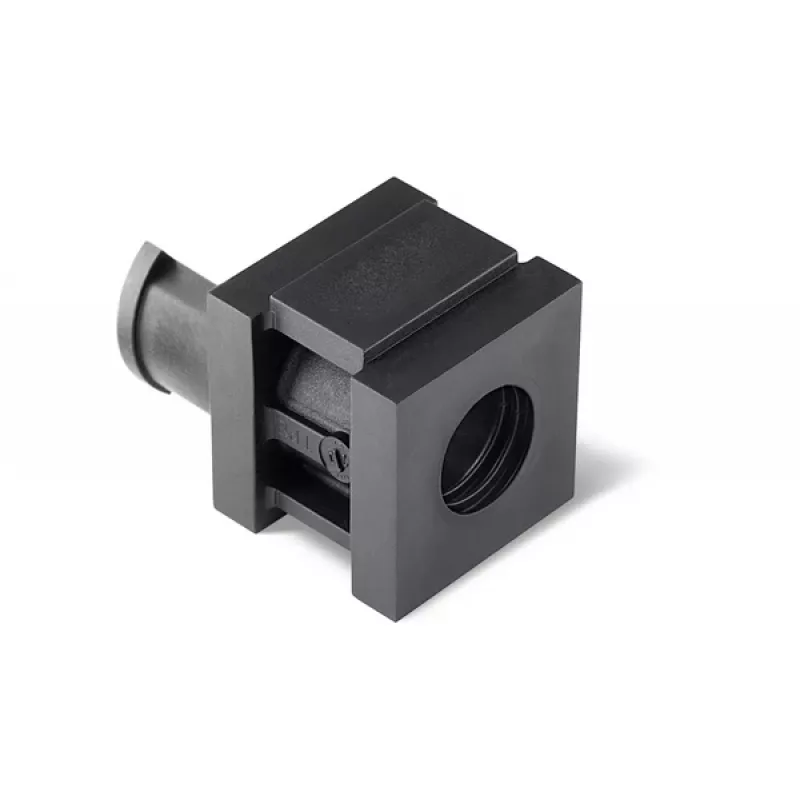

HELLERMANNTYTON VP-S 11-12 Ins-sgl-PL-BK inserto de prensaestopas de un orificio libre de halógenos, negro, pack de 20 (440-00013)

This HELLERMANNTYTON insert stands out for its halogen-free TPE-V construction, which combines flexibility with a wide temperature range. It is designed as a single-hole sealing element for cable glands, accommodating cables with diameters from 11.0 to 12.0 mm. The insert provides strain relief and sealing, and when used with a compatible PFLITSCH UNI Dicht or blueglobe gland, it can achieve protection class IP 68 (up to 10 bar).

Highlights

• Halogen-free TPE-V material
• Single hole for one cable
• Clamping range 11.0–12.0 mm
• Black colour, pack of 20 pieces
• Temperature range -40 °C to +130 °C
• Flame retardant to UL 94 V-0

In daily use

The insert is installed inside a cable gland to seal around the cable and provide strain relief. Its elastomeric material adapts to the cable surface, maintaining a reliable seal even under vibration or temperature changes. The halogen-free property makes it suitable for applications where low smoke and toxic gas emission are required.

Full specifications

• Product type: Cable gland insert
• Insert type: Single hole
• Cable clamping range: 11.0 - 12.0 mm
• Material: TPE-V (thermoplastic elastomer, vulcanized)
• Material properties: Halogen-free
• Colour: Black
• Quantity per pack: 20 pieces
• Outer diameter (insert): 15.5 mm
• Height (insert): 10 mm
• Temperature range: -40 °C to +130 °C
• Protection class (with suitable gland): IP 68 (up to 10 bar)
• Flame retardancy: UL 94 V-0
• Compatibility: PFLITSCH UNI Dicht and blueglobe cable glands
• Application: Cable entry, sealing, strain relief
• RoHS compliant: Yes
• REACH compliant: Yes

Final note

This insert is a reliable choice for industrial cable management, offering robust sealing and long-term performance.
