HellermannTyton VP_S_7 Tapones ciegos PA66 libres de halógenos negros 7,0 mm de diámetro de orificio 20 uds. (440-00050)

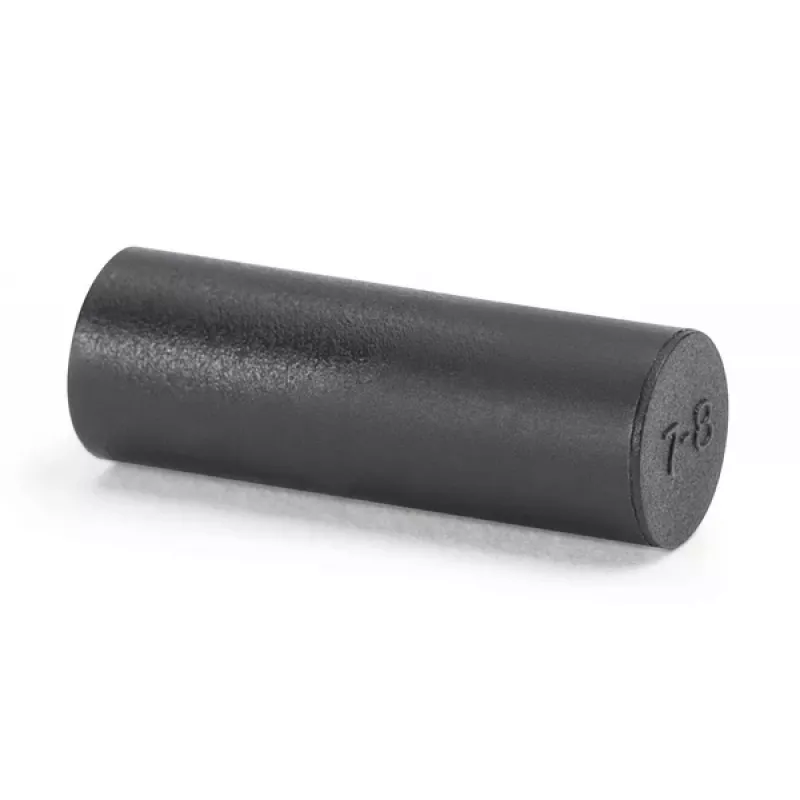

Blind plug for sealing unused cable entry holes in panels and enclosures. Push-in mounting for quick installation without tools. Made of halogen-free polyamide 6.6 (PA66) in black.

Advantages

Halogen-free material reduces toxic smoke in case of fire. UL94 V2 flammability rating. Wide operating temperature range from -40 °C to +105 °C. RoHS and REACH compliant.

Suitable for

• Panel thickness 0.8 to 3.0 mm
• Hole diameter 7.0 mm
• Enclosures, control cabinets, and electrical panels

Key specifications

• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Head diameter: 10.0 mm
• Overall length: 7.0 mm
• Mounting type: Push-in
• Pack quantity: 20 pieces

Recommendations

Use to close unused openings and maintain ingress protection of enclosures. Verify panel thickness and hole diameter before ordering.
