Herramienta de montaje InLine 94104 Negro Rojo Conector MC4 5 unidades

Efficient work on the construction site:The complete set offers all the tools required for professional processing of PV connectors in a robust, portable system.

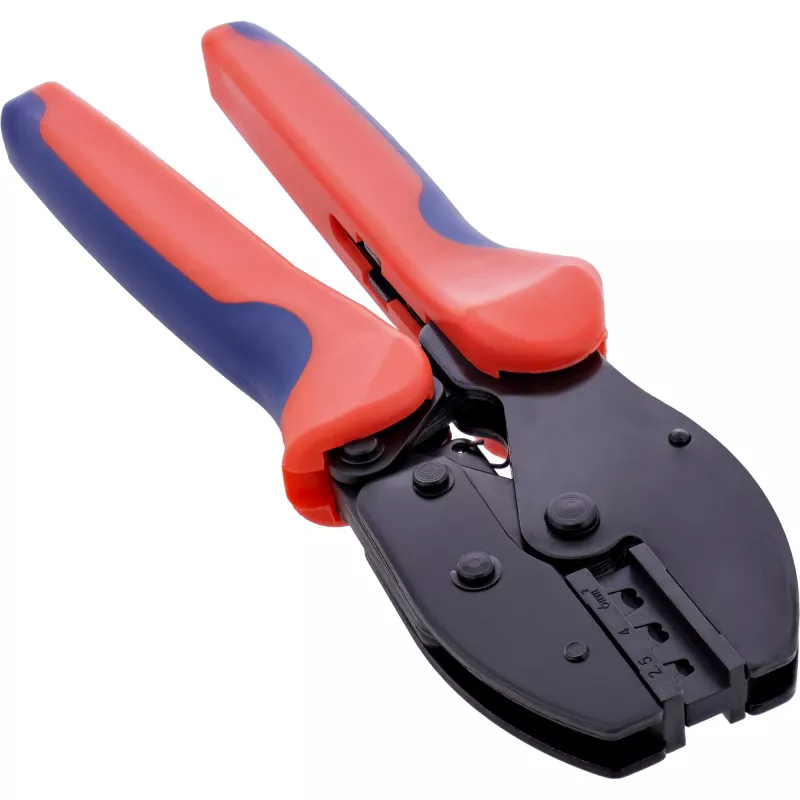

Standard-compliant connection technology:The MC4 crimping pliers with ratchet mechanism ensure reproducible, standard-compliant crimping in professional use.

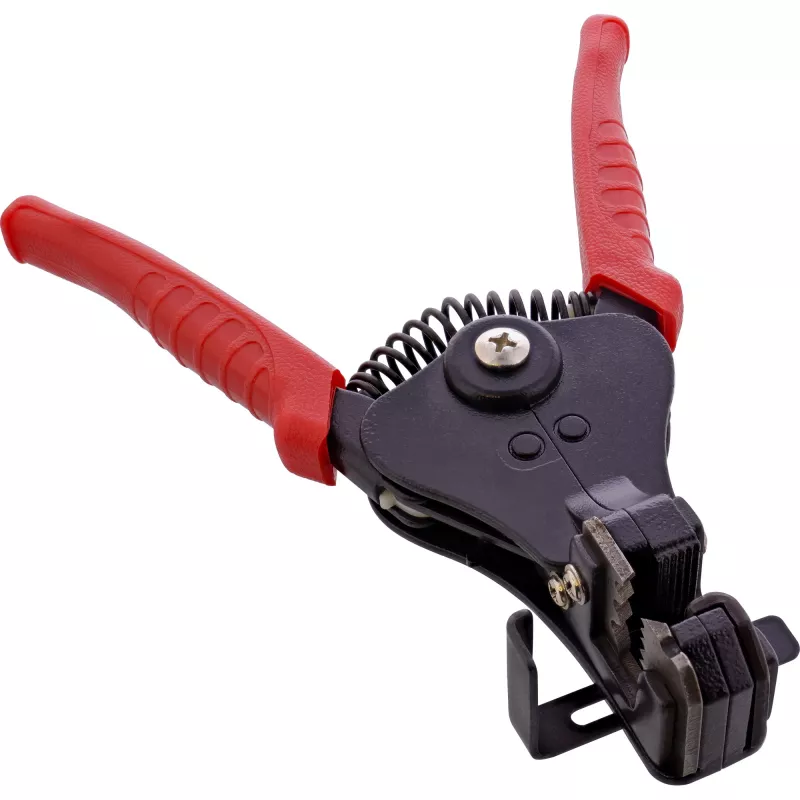

Safe stripping without damaging the cable:The automatic stripping pliers adapt automatically to different cable diameters, thus protecting the inner conductor.

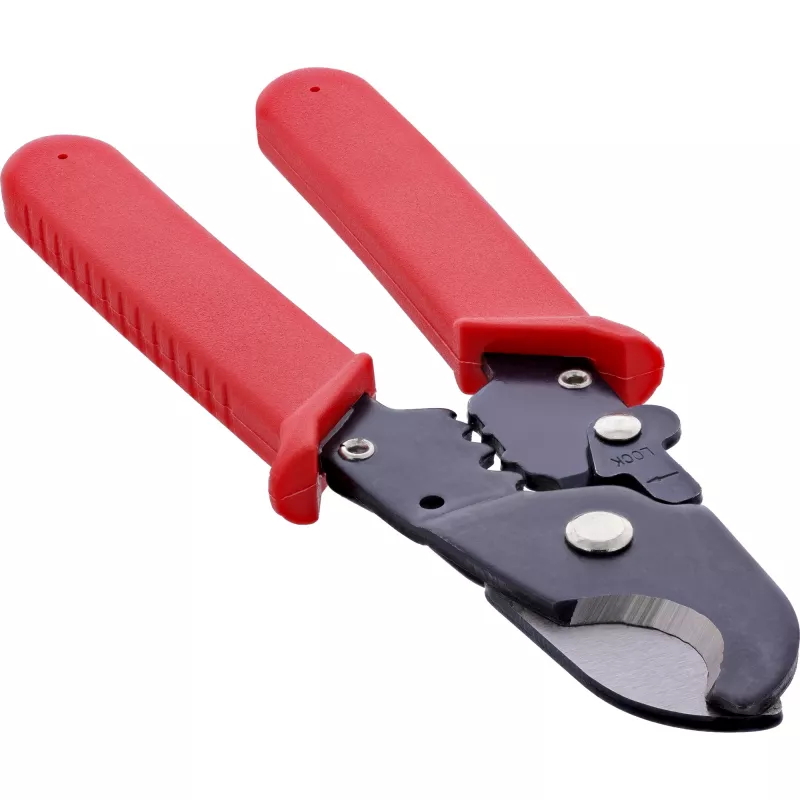

High cutting precision:The integrated cable cutter enables clean, smooth cuts on PV cables up to 6 mm² – for reliable contact quality.

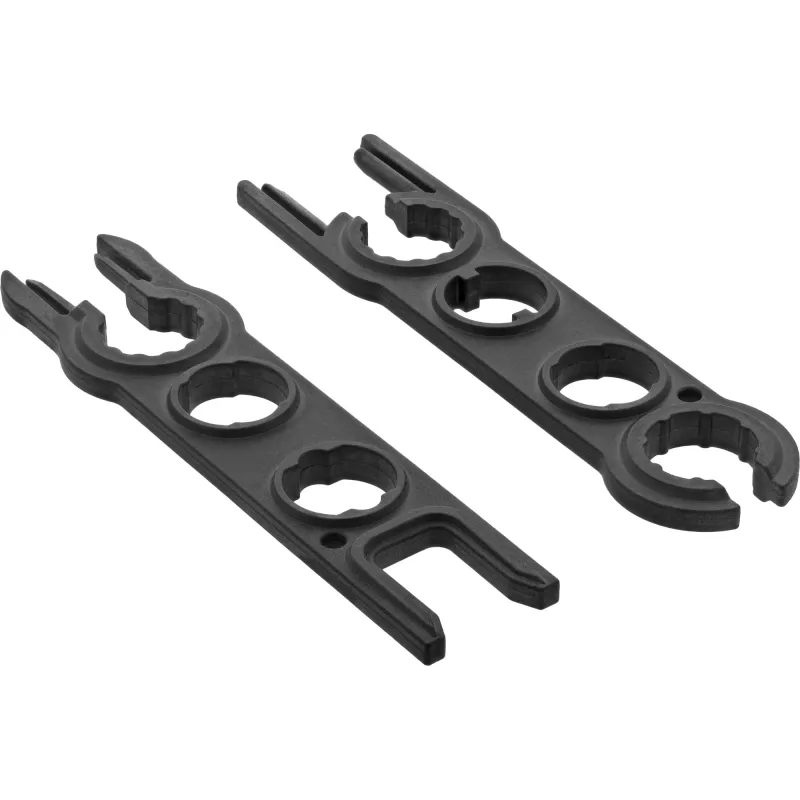

Fast handling of MC4 connections:Two release tools allow existing plug connections to be disconnected effortlessly – ideal for service work.

The InLine® Solar Photovoltaic Tool Set is the well-designed solution for professional users in the renewable energy sector. It combines all the essential tools for installing, maintaining and repairing photovoltaic systems in a mobile, professional set. Developed for solar installers, system integrators and electricians, it provides a reliable basis for efficient work directly on the construction site or at the customer's premises.
Thanks to the automatic wire stripper, different cable cross-sections can be stripped quickly and without damage. The robust solar cable cutter ensures precise cuts – a must for secure connections. The MC4 crimping pliers with ratchet function deliver consistent crimping in accordance with industry standards and increase the reliability of the systems. Two release tools ensure that existing connectors can be quickly disconnected without risk of mechanical damage.
The practical bag with hanging loop offers structured storage space and easy transport – a valuable advantage for mobile use. Whether for new construction, expansion or maintenance: with the InLine® tool set, you are well prepared for all tasks in the photovoltaic sector.

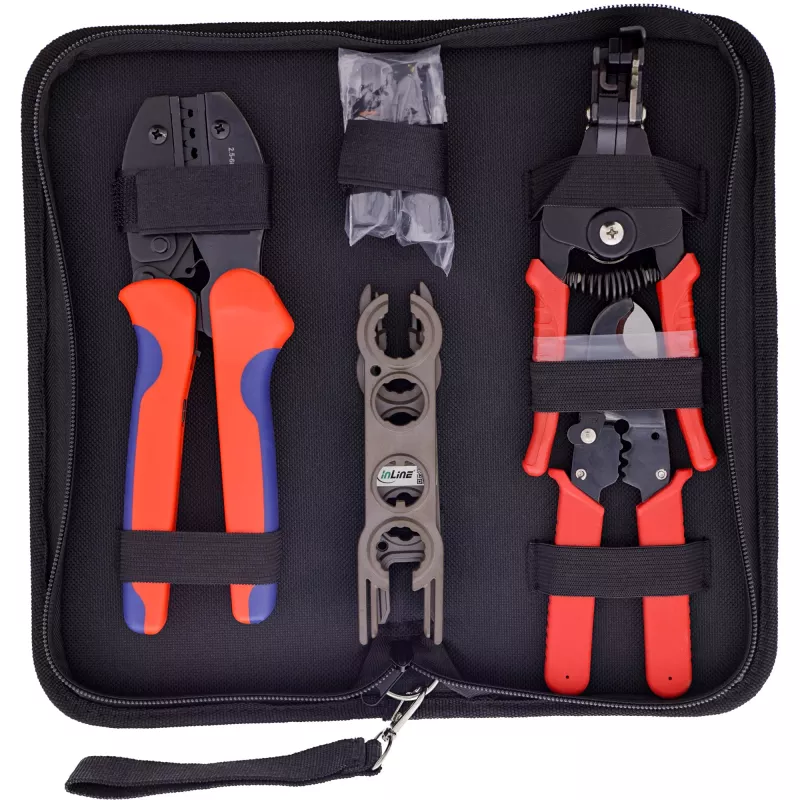

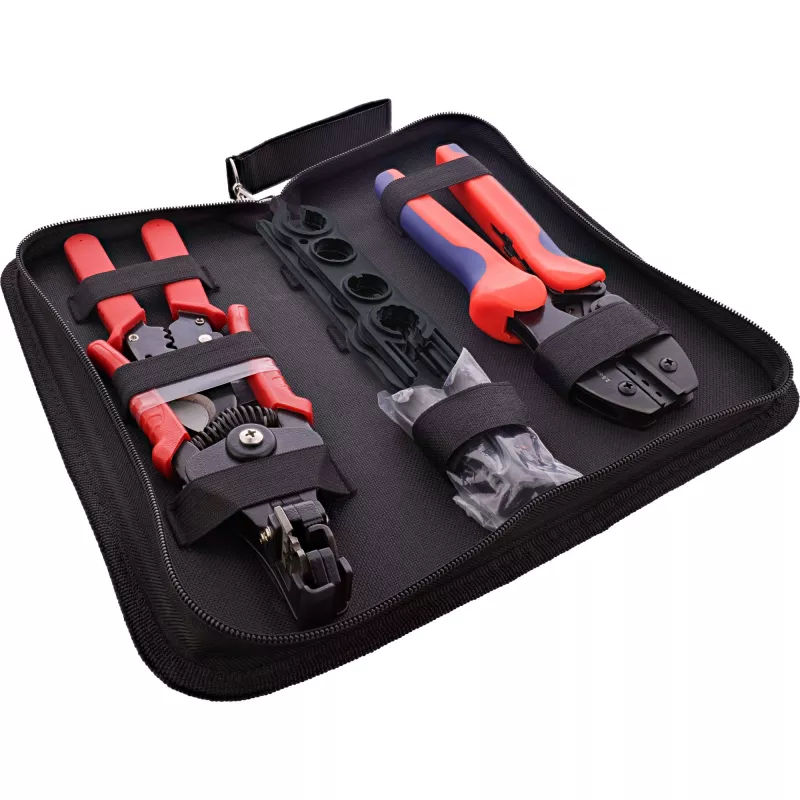

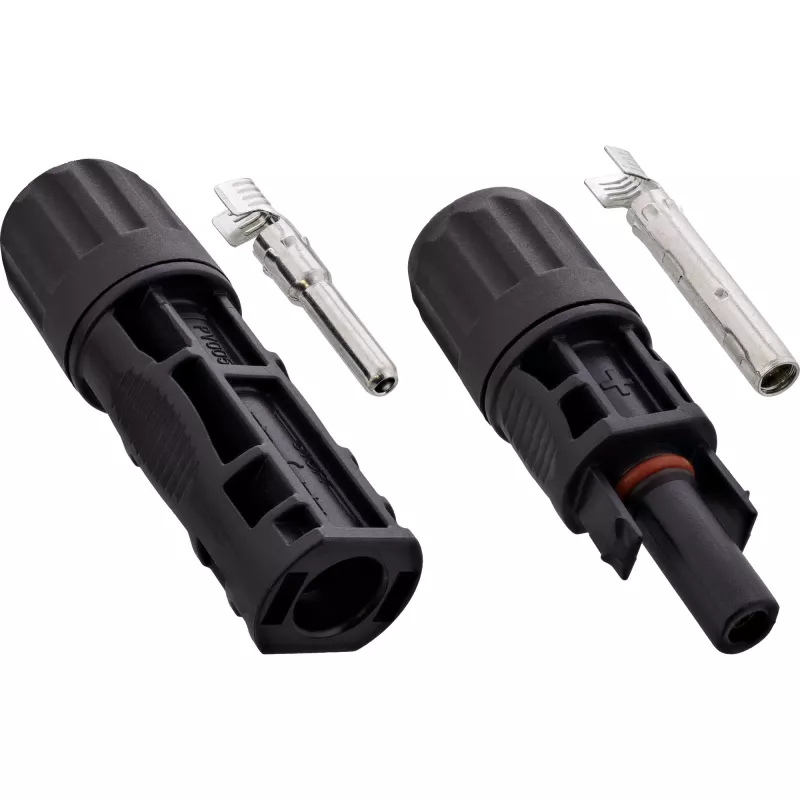

Contents: Solar cable cutter, automatic wire stripper, MC4 crimping pliers with ratchet, 2x release tools, 1 pair of MC4 connectors (plug & socket)
For cable cross-sections: up to 6 mm²

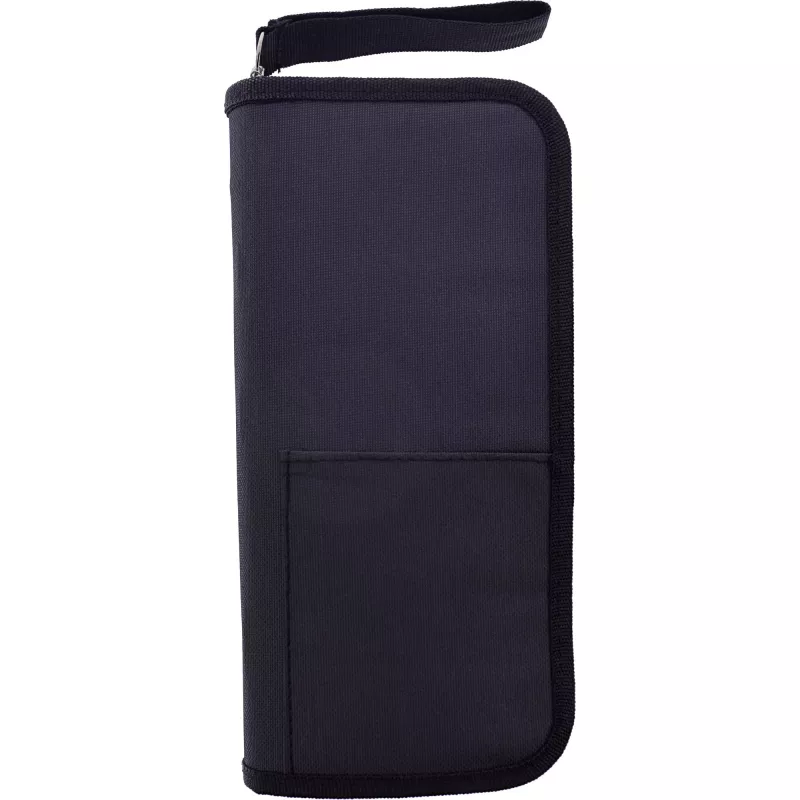

Packaging: robust tool bag with hanging loop
Compatibility: standard PV cables (e.g. 4 mm², 6 mm²)

InLine 94104. Product type: Mounting tool, Product colour: Black, Red. Connector type: MC4, Connector 1 gender: Male, Connector 2 gender: Female. Weight: 1.15 kg. Number of products included: 5 pc(s), Packaging content: Solar cable cutter, Automatic wire stripper, MC4 crimping tool with ratchet function, MC4 release.... Country of origin: Taiwan

How to use

Prepare the PV cable by measuring and marking the required length, then use the integrated solar cable cutter to make a clean cut. Strip the insulation with the automatic wire stripper; the tool adapts to the cable diameter to protect the inner conductor. Insert the conductor into the MC4 contact and use the MC4 crimping pliers with ratchet to perform a standard-compliant crimp. Use the two release tools to disconnect existing MC4 plug connections when performing service or replacement tasks. Store the tools in the supplied bag after use.

Recommendations

For reliable electrical contacts, ensure correct conductor insertion into MC4 terminals before crimping and verify crimps visually or with a pull test. Use the tool set with standard PV cables up to 6 mm² and store the kit dry to maintain tool condition.
