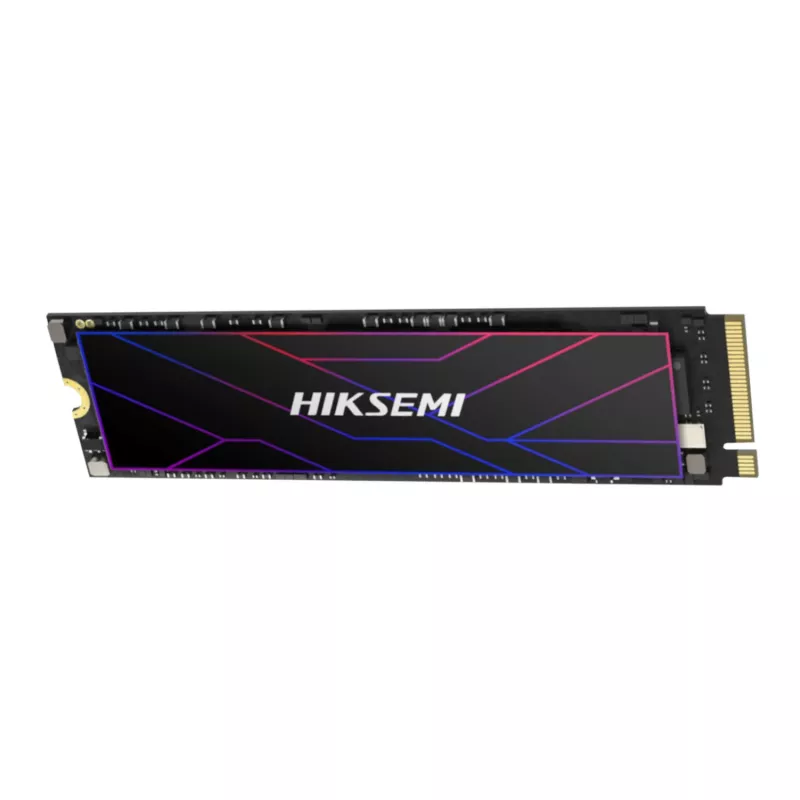

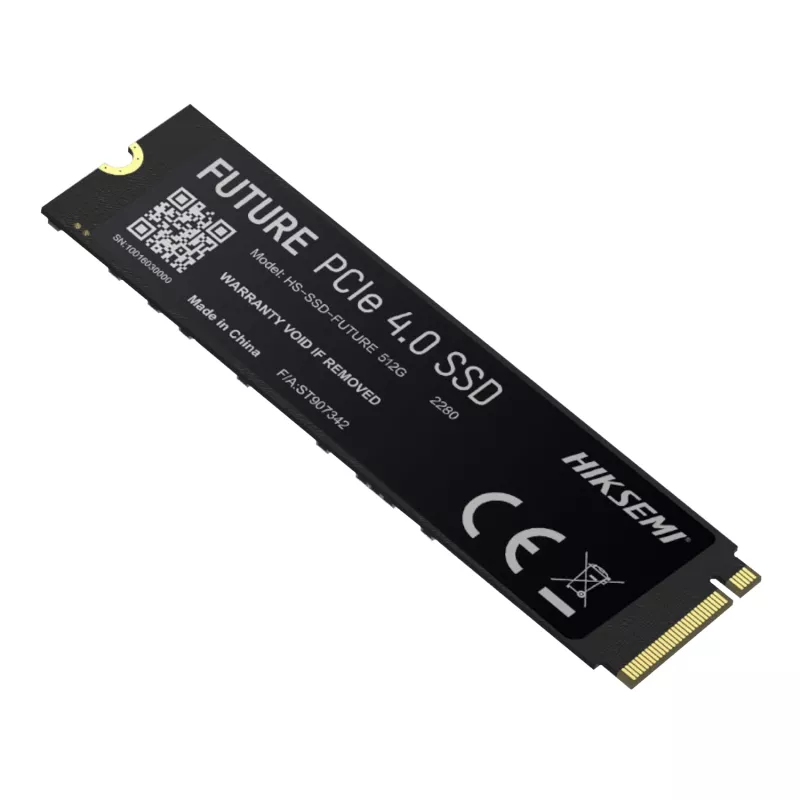

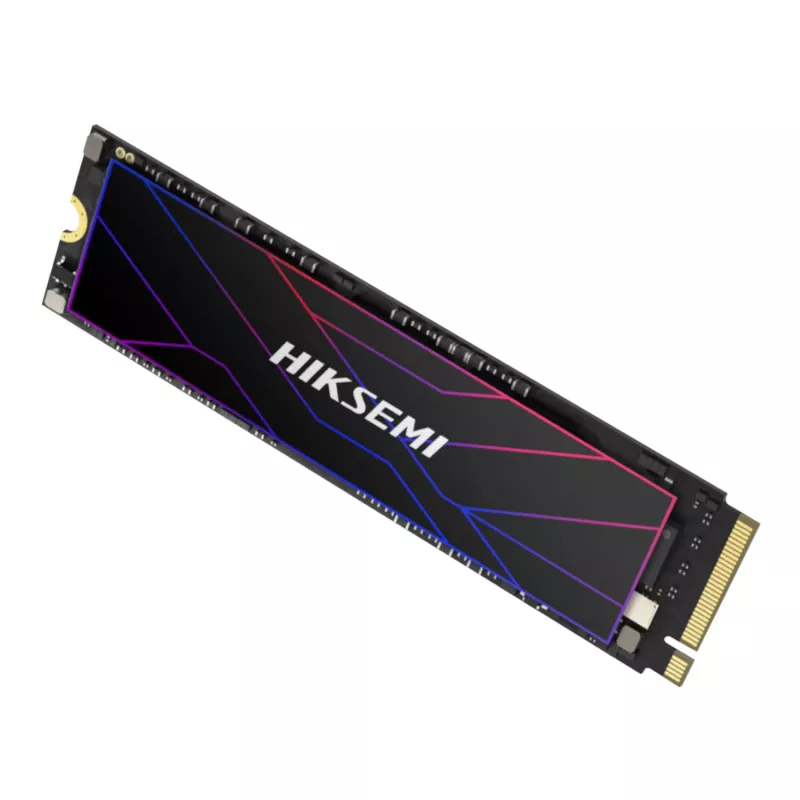

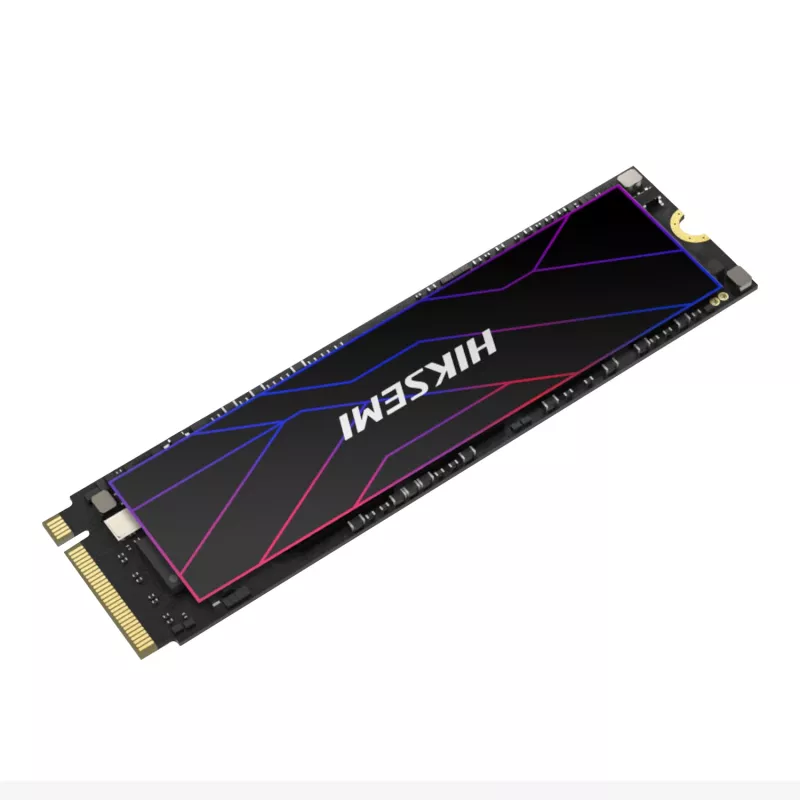

Hiksemi Future 512GB Gen4 M.2 NVMe 3D NAND SSD

Where typical Gen3 drives plateau, the Hiksemi Future 512GB Gen4 M.2 NVMe SSD pushes past with a PCIe Gen4 x4 interface that nearly doubles bandwidth, delivering up to 3500 MB/s sequential reads while staying backward compatible. Built around 3D TLC NAND and a Maxio MAP1202 controller, it pairs high throughput with the endurance needed for demanding workloads, making it a standout choice for systems that can leverage Gen4 speeds.

Highlights

• 512GB capacity for OS, applications, and high-resolution media
• M.2 2280 form factor fits ultrabooks, desktops, and gaming rigs
• NVMe 1.4 protocol with Host Memory Buffer (HMB) reduces latency
• Up to 300,000 random read IOPS for snappy multitasking
• 250 TBW endurance and 1.5M hours MTBF for long-term reliability

In daily use

Boot times shrink to seconds, and large file transfers complete noticeably faster than SATA or Gen3 alternatives. The drive stays cool under sustained loads thanks to efficient power management—only 3.5W max during reads. TRIM and S.M.A.R.T. support keep performance consistent over time, while ECC corrects errors on the fly.

Full specifications

• Capacity: 512 GB
• Interface: PCIe Gen4 x4
• NVMe version: 1.4
• Form factor: M.2 2280
• NAND flash type: 3D TLC
• Controller: Maxio MAP1202
• Sequential read speed: up to 3500 MB/s
• Sequential write speed: up to 2600 MB/s
• Random read IOPS (4KB): up to 300,000
• Random write IOPS (4KB): up to 400,000
• TBW rating: 250 TB
• MTBF: 1,500,000 hours
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C

Final note

For users seeking Gen4 speed without compromising endurance, the Hiksemi Future 512GB delivers a balanced mix of performance and reliability in a compact M.2 form factor.
