Hikvision DS-2CD1067G3-LIUF/SL(2.8mm) cámara IP

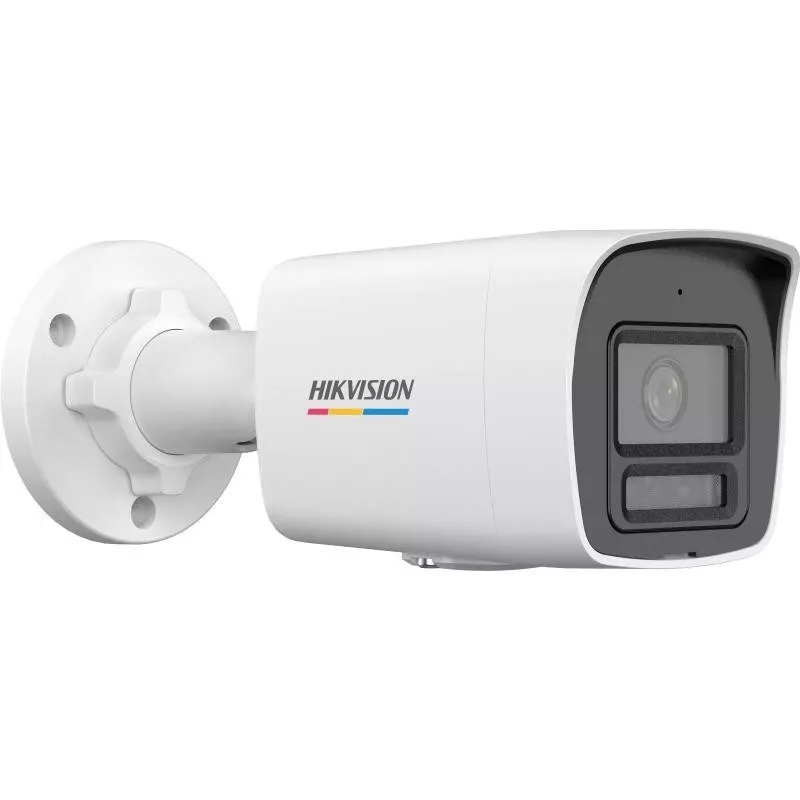

The Hikvision DS-2CD1067G3-LIUF/SL(2.8mm) is a 6 MP network tube camera with ColorVu 3.0 technology and a fixed 2.8 mm lens. It features HikAI-ISP for noise reduction and Smart Hybrid Light with IR and white light illumination.

Key features

• 6 MP network tube camera with ColorVu 3.0
• HikAI-ISP for excellent noise reduction
• Very clear, colorful image 24/7 thanks to ColorVu 3.0 technology
• Motion Detection 3.0 with more accurate classification of persons and vehicles
• Smart Hybrid Light integrating IR illuminator and white light, 3 illumination modes
• Water and dust resistant (IP67)

Specifications

• Model: DS-2CD1067G3-LIUF/SL(2.8mm)
• Image sensor: 1/2.4" Progressive Scan CMOS
• Max. resolution: 3200 × 1800
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with illuminator
• Shutter time: 1 s to 1/100,000 s
• Day/Night: IR cut filter
• Angle adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Lens type: Fixed lens, optionally 2.8 mm
• Focal length and field of view: 2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130°
• Lens mount: M12
• Aperture type: Fixed
• Aperture: F1.0
• Depth of field: 2.8 mm: 1.9 m to ∞
• DORI: 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
• Illuminator type: IR, white light
• Illuminator range: Up to 30 m
• Smart supplement light: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265/H.264/MJPEG
• Video bit rate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR, VBR
• Scalable video coding (SVC): H.264 and H.265 encoding
• ROI: 1 fixed region for main stream and sub-stream
• Audio type: Mono audio
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio sampling rate: 8 kHz/16 kHz
• Environmental noise filtering: Yes
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
• Simultaneous live view: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Users/Host: Up to 32 users
• User levels: 3 user levels: administrator, operator and user
• Security: Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Clients: VMS-4200, Hik-Connect
• Web browser: Live view requiring plugin: IE 10, IE 11
• Web browser: Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, AGC, adjustable via client software or web browser
• Day/Night switching: Day, night, auto, schedule
• Wide dynamic range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image enhancement: BLC, HLC, 3D DNR
• Privacy masks: 4 programmable polygon privacy masks
• Ethernet interface: 1 RJ45 10 M/100 M Ethernet port with auto-adaptation
• Built-in memory: Built-in memory card slot, supports microSD/microSDHC/microSDXC up to 512 GB
• Built-in microphone: Yes, 1 built-in microphone
• Built-in speaker: Max. power consumption: 1.
