Extensor PoE Gigabit Hikvision DS-3E0503DP-E/R, 1x PoE In, 2x PoE Out, 802.3af/at, 30 W

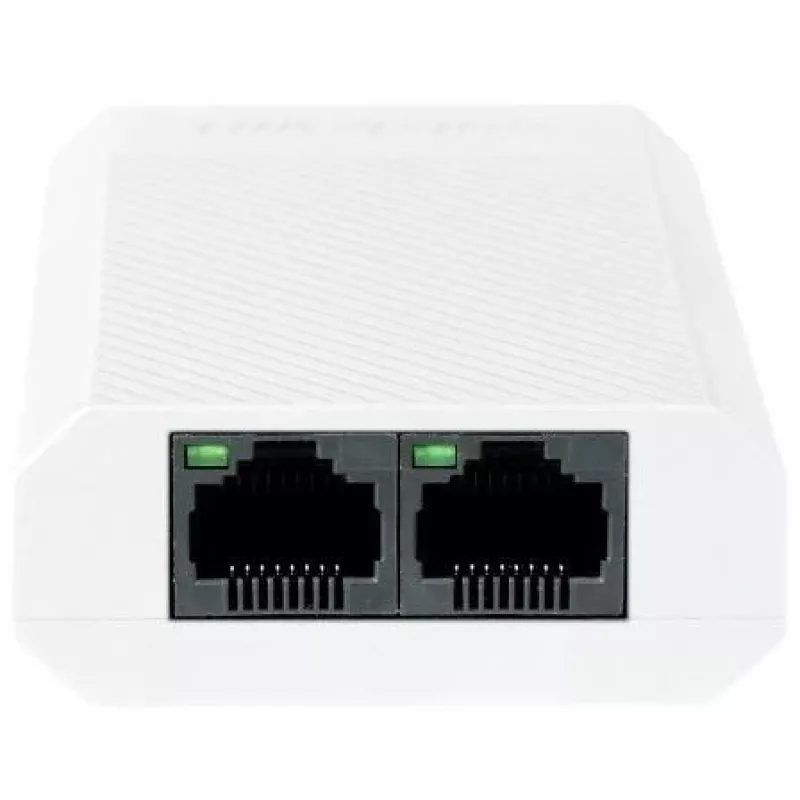

The Hikvision DS-3E0503DP-E/R is a Gigabit PoE extender in a white plastic housing. It features 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT ports, supporting IEEE 802.3af/at PoE on all ports. The extender provides a total PoE power budget of 30 W and can extend PoE power up to 200 m when using CAT5e/CAT6 cable (100 m to the extender and 100 m to the powered device).

Key features

• Gigabit PoE extender with 1 × PoE IN and 2 × PoE OUT ports
• IEEE 802.3af/at PoE support on all ports
• Total PoE power budget: 30 W
• Extends PoE transmission distance up to 200 m with CAT5e/CAT6 cable
• Plug and play, no configuration required
• Fanless plastic housing
• Desktop installation

Specifications

• Brand: Hikvision
• Model: DS-3E0503DP-E/R
• Product colour: White
• Ethernet LAN: Yes
• Ports: 1 × Gigabit PoE IN, 2 × Gigabit PoE OUT
• PoE standard: IEEE 802.3af, IEEE 802.3at
• PoE ports: Ports 1 to 3
• Max. port power: 30 W
• PoE power budget: 30 W
• MAC address table: 2 K
• Switching capacity: 6 Gb/s
• Packet forwarding rate: 4.46 Mpps
• Internal buffer: 1 Mb
• Max. power consumption: 1.9 W
• Standby power consumption: ≤1.55 W
• Surge protection: 2 kV
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating humidity: 5% to 95% (non-condensing)
• Relative humidity: 5% to 95% (non-condensing)
• Mounting type: Desktop
• Housing: Plastic, fanless design
• Net weight: 0.058 kg (0.128 lb)

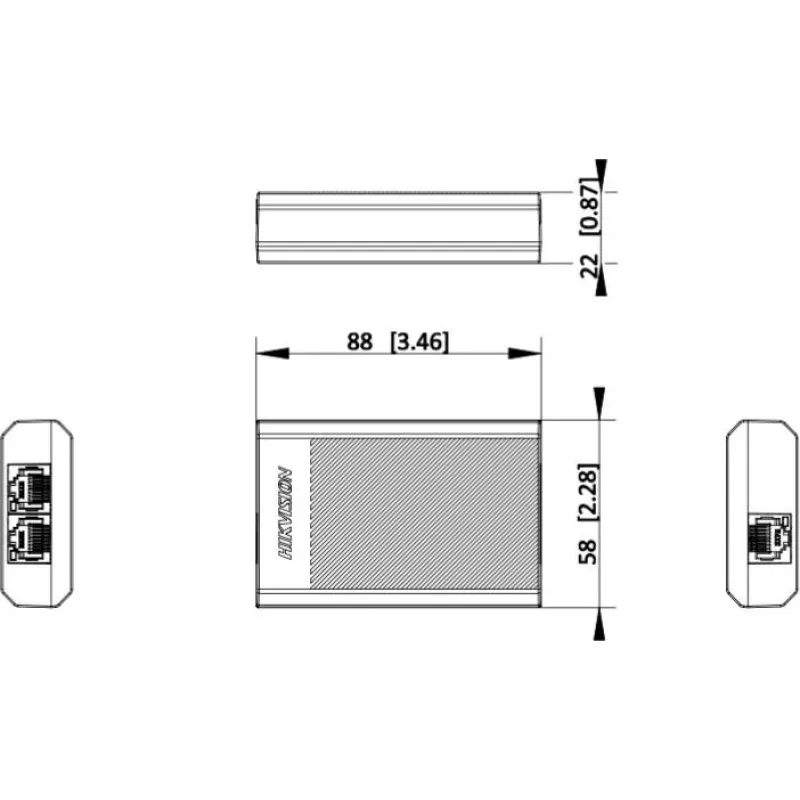

• Dimensions (W × H × D): 88.0 mm × 22.0 mm × 58.0 mm (3.46'' × 0.87'' × 2.28'')
