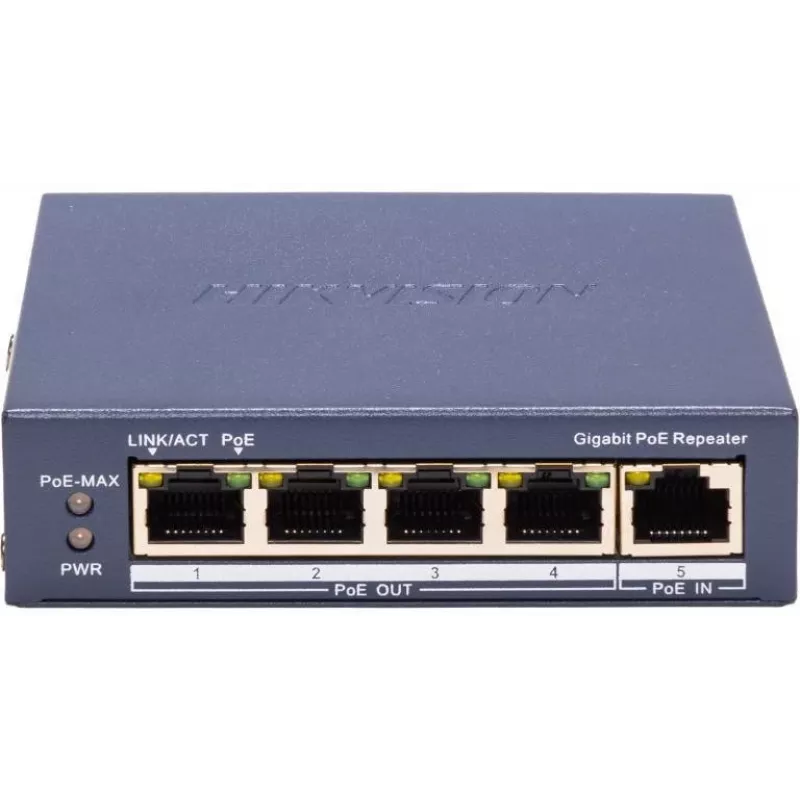

Hikvision DS-3E0505P-E/R repetidor Gigabit PoE 5 puertos 4xPoE Out IEEE 802.3bt

The Hikvision DS-3E0505P-E/R is a high-performance Gigabit PoE repeater designed to extend Power over Ethernet and data transmission distances beyond the standard 100-meter limit. With 5 RJ45 ports (1 uplink PoE input and 4 PoE output ports), it supports IEEE 802.3bt Hi-PoE input and delivers up to 30W per port for powering devices such as IP cameras, access points, and VoIP phones. Ideal for expanding network coverage in surveillance, enterprise, and industrial environments.

Advantages

Extends network reach up to 200 meters by cascading repeaters; supports high-power PoE input up to 90W; robust surge protection (6KV) and wide operating temperature range (-30°C to 65°C) ensure reliable performance in harsh conditions.

Suitable for

• Extending PoE connections for IP cameras in large-scale surveillance systems
• Powering remote wireless access points and IoT devices
• Industrial networking where long-distance cabling is required

Key specifications

• Product Type: PoE Repeater / Extender
• Network Ports: 5 x RJ45 (1 Uplink PoE In, 4 Downlink PoE Out)
• Data Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• PoE Input Standard: IEEE 802.3bt (Hi-PoE)
• PoE Output Standard: IEEE 802.3af/at
• Max PoE Input Power: Up to 90W
• Max PoE Output Power per Port: Up to 30W
• Total PoE Power Budget: 60W (with 802.3bt input)
• Max Extension Distance: 100m per repeater (total 200m)
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3bt
• Forwarding Mode: Store-and-forward
• MAC Address Table Size: 2K
• Jumbo Frame Support: 9KB
• Surge Protection: 6KV
• Operating Temperature: -30°C to 65°C (-22°F to 149°F)
• Power Consumption (Idle): < 2W
• LED Indicators: Link/Act, PoE Status
• Mounting Type: Desktop, Wall-mount

Recommendations

For optimal performance, use with a PoE switch or injector that supports IEEE 802.3bt to fully utilize the 60W power budget. Ensure proper ventilation and avoid exceeding the maximum ambient temperature.
