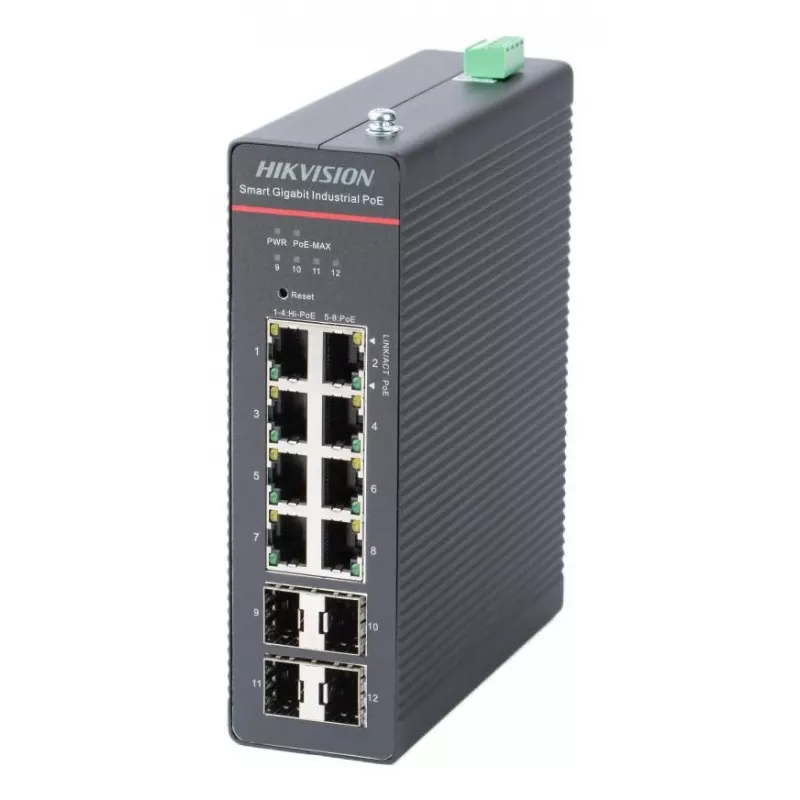

Hikvision DS-3T1512HP-SI-8P4FKIT(240W) LinkVu switch PoE gestionado Layer 2, 12 puertos, 8 PoE+ 90W, presupuesto 240W

The Hikvision DS-3T1512HP-SI-8P4FKIT(240W) LinkVu is a high-performance Layer 2 managed PoE switch designed for small to medium-sized business networks. With 12 Gigabit Ethernet ports (8 PoE+ and 4 non-PoE) plus 2 SFP uplink slots, it delivers robust connectivity and power for IP cameras, wireless access points, and other PoE devices. The switch supports IEEE 802.3bt Hi-PoE with up to 90W per port and a total PoE budget of 240W, making it ideal for power-hungry devices like PTZ cameras and video intercoms.

Advantages

This switch offers a cost-effective solution for deploying a comprehensive network with power and data over a single cable. Its Layer 2 management features (VLAN, QoS, SNMP) provide granular control and traffic optimization. The 6KV surge protection on PoE ports ensures reliability in demanding environments. The 1U rack-mountable design fits neatly into standard server racks.

Suitable for

• IP surveillance systems (up to 8 cameras)
• Wireless access point deployments
• Small office / retail networks
• Edge switching in larger networks

Key specifications

• 12 x 10/100/1000 Mbps RJ45 ports (8 PoE+, 4 non-PoE)
• 2 x 1000 Mbps SFP uplink ports
• PoE standard: IEEE 802.3af/at/bt (Hi-PoE)
• PoE power budget: 240W, up to 90W per port
• Switching capacity: 28 Gbps
• Packet forwarding rate: 20.832 Mpps
• MAC address table: 16K
• Jumbo frame support: 10 KB
• VLAN support: IEEE 802.1Q, port-based VLAN
• QoS: SP, WRR, SP+WRR
• Management: Web, CLI, SNMP v1/v2c/v3, Telnet, RMON
• Surge protection: 6 KV on PoE ports
• Power supply: Internal, 100-240 VAC, 50/60 Hz
• Operating temperature: -10°C to 55°C (14°F to 131°F)
• Mounting: 1U rack-mount

Recommendations

For optimal performance, use Category 6 or higher cabling for PoE++ applications. This switch is an excellent choice for Hikvision surveillance systems and other IP-based networks requiring reliable power and data delivery.
