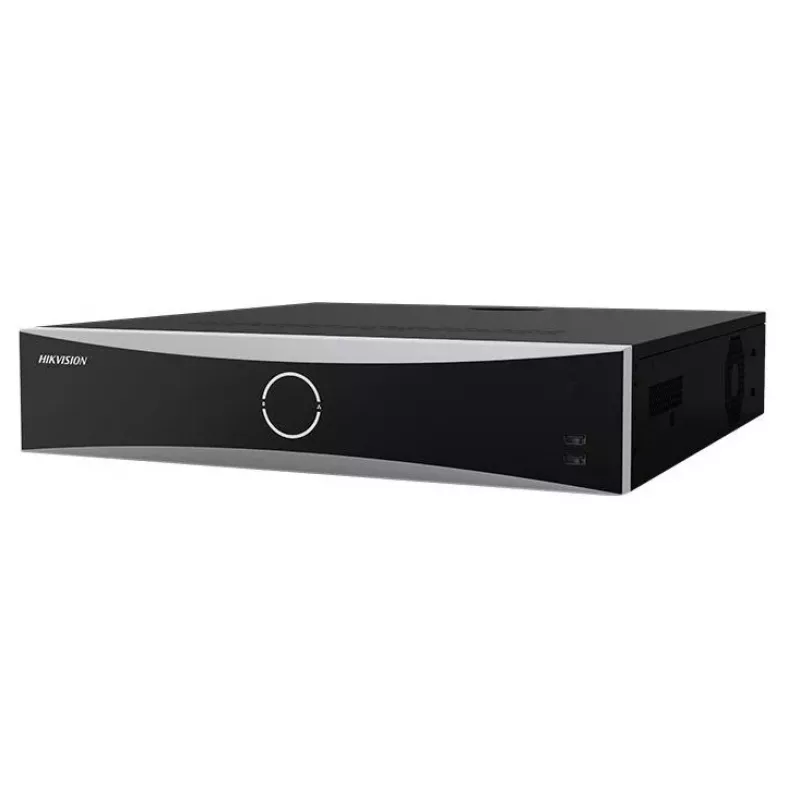

Hikvision DS-7716NXI-I4/16P/S (E) NVR AcuSense de 16 canales con 16 puertos PoE

The Hikvision DS-7716NXI-I4/16P/S (E) is a professional 16-channel IP video recorder with built-in AcuSense AI technology, designed for advanced surveillance systems. It supports H.265+ compression, 16 independent PoE ports, and up to 4 SATA HDDs for extensive storage. Ideal for medium to large installations requiring intelligent analytics and reliable recording.

Advantages

AcuSense AI reduces false alarms by filtering human and vehicle targets. The 16 PoE ports simplify installation by powering cameras directly. High decoding capability up to 12 MP ensures crisp video playback. Rack-mountable 1.5U chassis fits standard server racks.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Parking lots and perimeter security

Key specifications

• 16-channel IP video input
• 16 independent PoE interfaces (IEEE 802.3af/at), PoE budget ≤200 W
• Max incoming bandwidth: 160 Mbps; outgoing: 256 Mbps
• Video output: 1 HDMI (up to 4K@30Hz), 1 VGA (1080p@60Hz)
• Audio: 1-ch RCA input, 1-ch RCA output
• Compression: H.265+/H.265/H.264+/H.264
• Decoding: 2-ch@12 MP, 3-ch@8 MP, 6-ch@4 MP, 12-ch@1080p
• Synchronous playback: 16 channels
• 4 SATA interfaces, up to 10 TB per HDD
• 1 Gigabit Ethernet RJ-45 port
• USB: 1× USB 2.0 (front), 1× USB 3.0 (rear)
• Alarm: 16 inputs / 4 outputs
• AI: AcuSense (human/vehicle detection), 4-ch perimeter protection, 1-ch facial recognition
• Power: 100-240 VAC, 50/60 Hz
• Dimensions (W×D×H): 440×390×65 mm (1.5U)
• Weight: approx. 5.0 kg (without HDDs)

Recommendations

For optimal performance, pair with Hikvision AcuSense IP cameras and use enterprise-grade SATA HDDs rated for surveillance. Ensure adequate ventilation in the rack. The NVR supports up to 10 TB per HDD; total storage capacity up to 40 TB.
