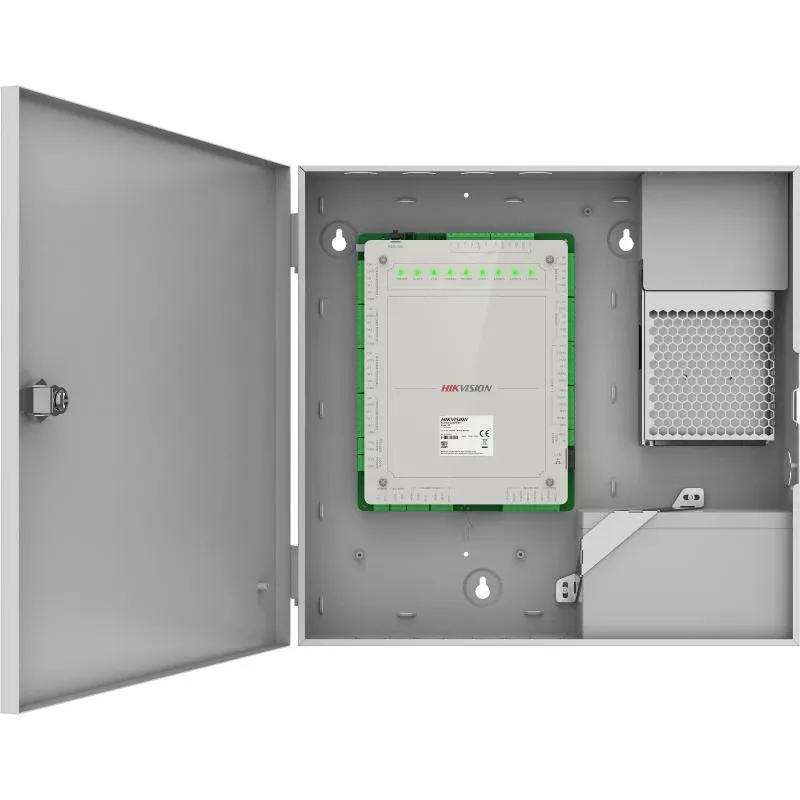

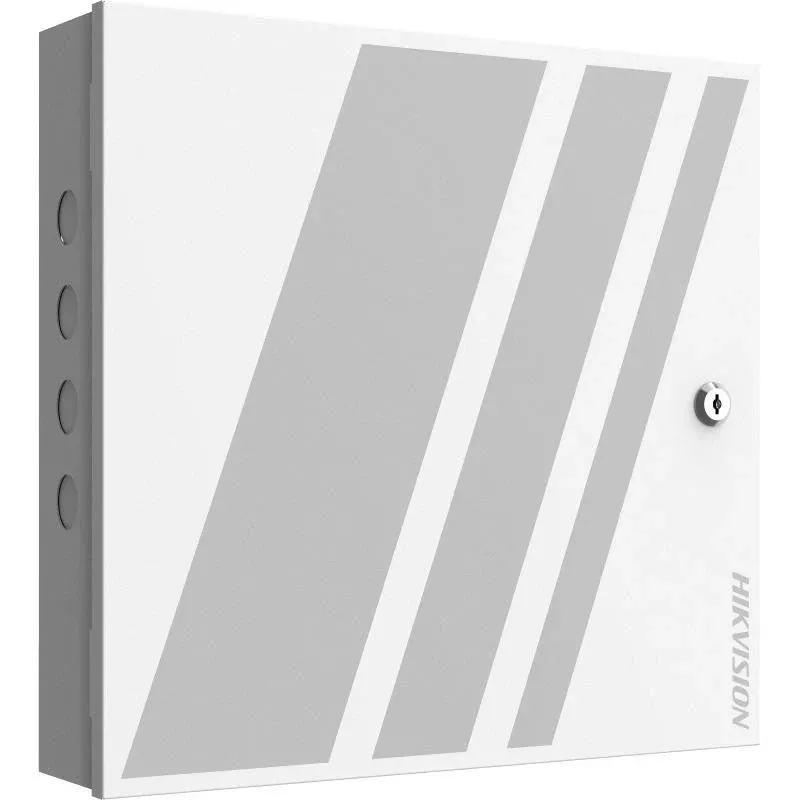

Hikvision DS-K2624X Pro Series controlador de acceso de red de 4 puertas

Managing access across multiple entry points often leads to complexity and security gaps without a centralized control solution. The Hikvision DS-K2624X Pro Series Access Controller removes that complexity by providing robust, scalable control for up to four doors from a single high-performance unit. Ideal for offices, warehouses, and commercial facilities, this controller delivers reliable, real-time access management with extensive user and event capacity, ensuring your premises remain secure and operations run smoothly.

Who is it for

Built for security integrators, facility managers, and business owners who need a dependable, expandable access control system. It suits medium to large installations where multiple doors, high user counts, and detailed event logging are required. Upgrading an existing setup or deploying a new system, the DS-K2624X offers enterprise-grade features in a compact, metal enclosure.

Main features

• Controls up to 4 doors with support for 8 card readers (4 Wiegand, 4 RS-485)
• Stores up to 100,000 users and 300,000 events for extensive audit trails
• 12 inputs (door sensors, exit buttons, alarm inputs) and 8 outputs (lock relays, alarm outputs)
• Advanced access functions: anti-passback, multi-door interlocking, multi-card opening, first card opening, and remote control
• Dual communication interfaces: TCP/IP and RS-485 for flexible network integration
• 32-bit high-performance processor with 16 MB flash memory for fast, reliable operation

Specifications

• Doors Controlled: 4
• Card Readers Supported: 8 (4 Wiegand, 4 RS-485)
• Inputs: 12 (4 Door Sensor, 4 Exit Button, 4 Alarm Input)
• Outputs: 8 (4 Lock Relay, 4 Alarm Output)
• User Capacity: 100,000
• Event Capacity: 300,000
• Communication Interface: TCP/IP, RS-485
• Processor: 32-bit High-Performance
• Memory: 16 MB Flash
• Power Supply: 12 VDC, 5 A
• Power Consumption: ≤ 100 W (including load)
• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Access Control Functions: Anti-passback, Multi-door Interlocking, Multi-card Opening, First Card Opening, Remote Control
• Card Reader Interface: Wiegand (W26/W34), RS-485
• Enclosure Material: Metal
• Battery Backup Support: Yes (12V, 7Ah lead-acid battery, not included)
• Network Protocol: TCP/IP, ISAPI
• Firmware Upgrade: Online Upgrade
• Certifications: CE, FCC, RoHS

Tips

For optimal performance, mount the controller in a secure, dry location with proper ventilation. Use a regulated 12 VDC power supply and consider adding a backup battery to maintain operation during power outages. Configure anti-passback and multi-door interlocking to enhance security in high-traffic areas.
