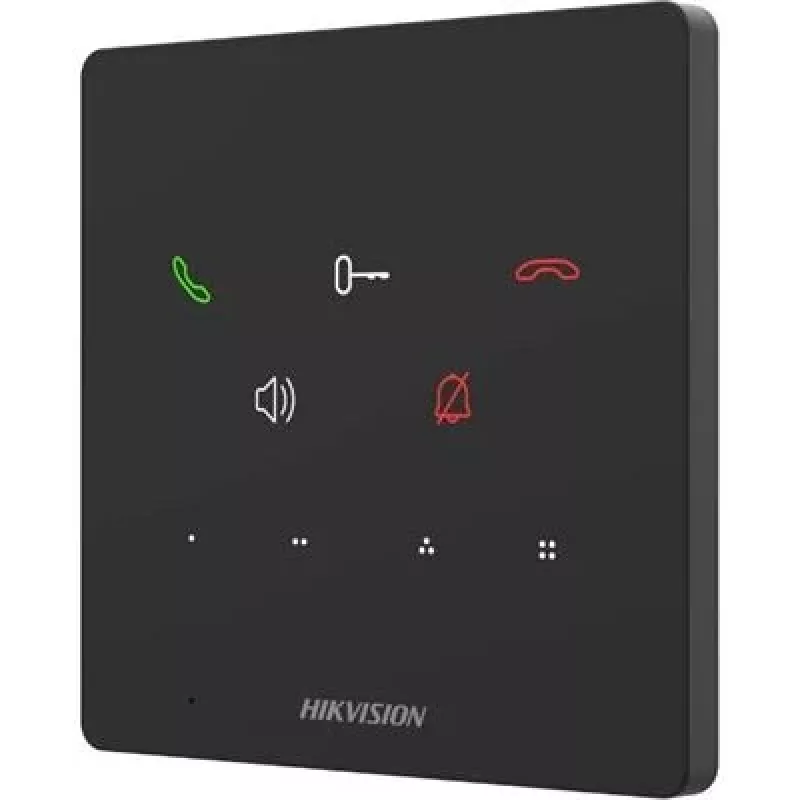

Hikvision DS-KH6000-E1 puesto interior IP sin monitor

The Hikvision DS-KH6000-E1 is a headless IP indoor master station designed for modern video door phone systems. It provides two-way audio, remote unlocking, and alarm integration without a built-in monitor, making it a compact and cost-effective solution for multi-tenant buildings and residential complexes.

Advantages

This indoor station offers seamless communication with outdoor units, supports PoE for easy installation, and features 8 alarm inputs and 2 alarm outputs for comprehensive security integration. Its embedded Linux OS ensures stable and reliable performance.

Suitable for

• Apartment buildings and gated communities
• Office and commercial premises
• Integration with Hikvision security systems

Key specifications

• Product Type: IP Indoor Master Station (Headless)
• Operating System: Embedded Linux
• Network Interface: 1x RJ45 10/100 Mbps Self-adaptive Ethernet
• Power Supply: 12 VDC / PoE (IEEE 802.3af)
• Power Consumption: Max. 4 W
• Audio: Built-in omnidirectional microphone and loudspeaker
• Audio Compression: G.711 U
• Alarm Input/Output: 8-channel input, 2-channel output
• RS-485 Interface: 1-channel
• Installation: Wall mounting or desktop mounting (with optional bracket)
• Material: PC+ABS
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Key Features: Two-way audio, remote unlocking, call management, alarm integration, message management
• Indicator: Status LED

Recommendations

For a complete door phone system, pair this indoor station with compatible Hikvision outdoor stations and a PoE switch. Ensure network cabling meets Ethernet standards for optimal performance.
